Parallel
007-4330-002
The parallel port is a 25-pin female D-sub connector. The port color is burgundy.
1
14
25
13

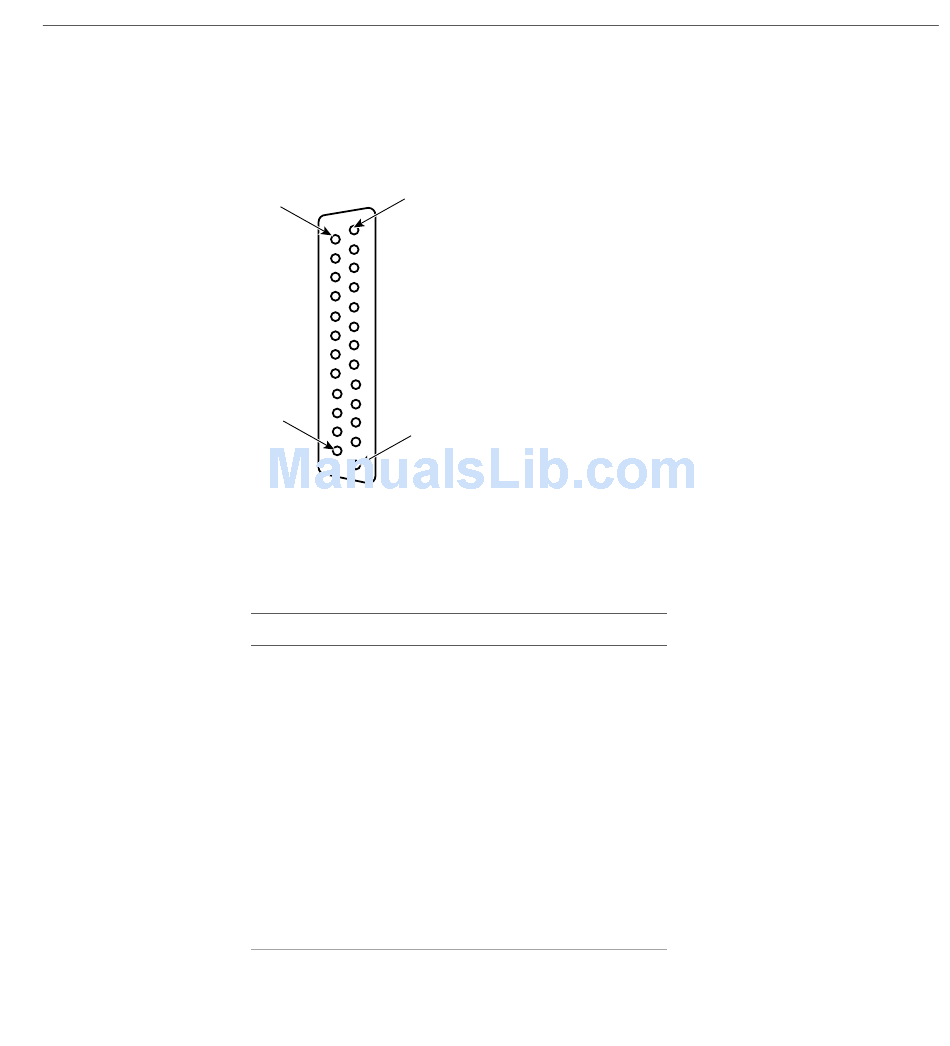

Figure 2-17
Parallel Port
Table 2-5
Parallel Port
Pin
Signal
Pin
1
Strobe
10
2
Data 0
11
3
Data 1
12
4
Data 2
13
5
Data 3
14
6
Data 4
15
7
Data 5
16
8
Data 6
17
9
Data 7
18-25
Signal
Acknowledge (-ACK)
Busy
Paper Empty (PE)
+Select
Auto Feed (-Auto FDXT)
-Error
Start (-Init)
Select (-SLCTIN)
Ground
I/O Port Connectors
27
