I/O Port Connectors

Ethernet
Mouse
Keyboard
USB
Serial (COM1)

Keyboard, Mouse

007-4330-002
The input/output (I/O) port connectors are stacked on the system board adjacent to the
processor sockets.
Parallel (LPT)
Serial (COM2)

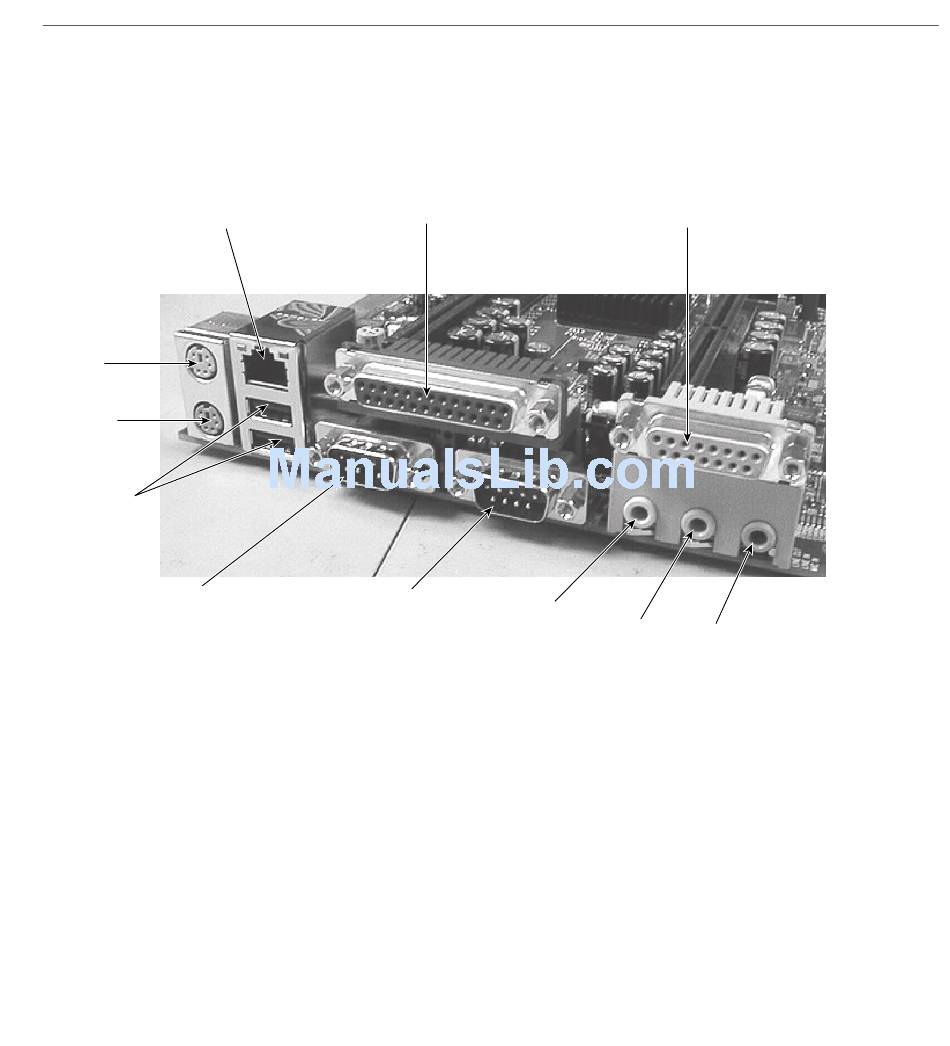

Input/Output (I/O) Port Connectors
Figure 2-15
Keyboard and mouse ports are PS/2-style 6-pin male min-DIN connectors. The
functionality of the two ports is not interchangeable. The keyboard is powered by
standby power. The keyboard port color is purple; the mouse port color is green.
Audio line out
Audio line in
Microphone
I/O Port Connectors
MIDI/game
