2: Components

Memory Modules

10

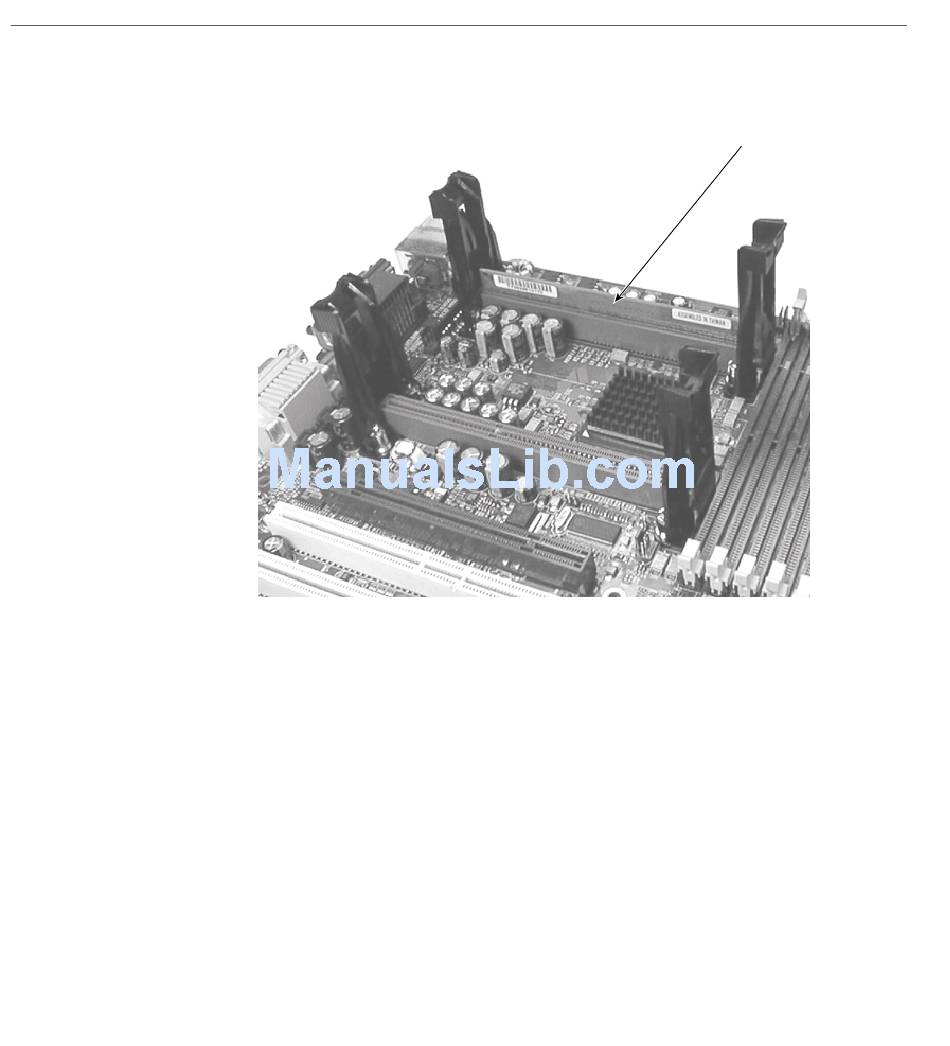

Figure 2-3 Processor Bus Terminator Card
The system board includes sockets for up to six PC133 dual inline memory modules
(DIMMs). The memory speed matches the system board's front-side bus speed.
Memory module sockets are organized into four banks (Bank 0 through Bank 3) of two
sockets each that use two-way memory interleaving.
Processor bus
terminator card
007-4330-002
