Fan Connectors

007-4330-002
The system's rear fan connects to one of the 3-pin CPU FAN connectors (shown in the
following figure). The connectors are keyed for proper connection. The rear fan in a
tower chassis connects to the FAN4 connector to the left of and between the processor
sockets. The rear fan in a rack-mount chassis connects to the FAN3 connector below and
to the right of the lower processor socket.

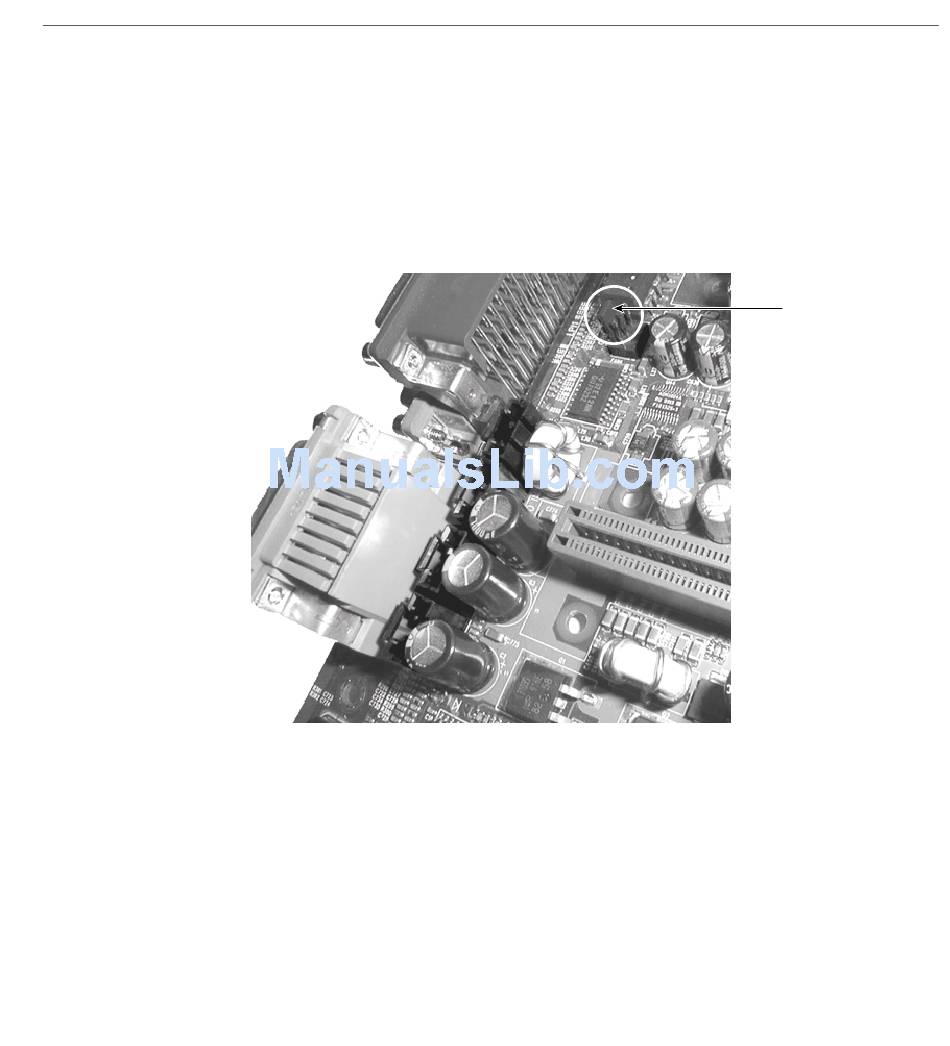

Figure 2-9 Fan4 Connector
Fan Connectors
FAN4 Connector
17
