Summary of Contents for Coemar Risalto 2000 Fresnel-PC

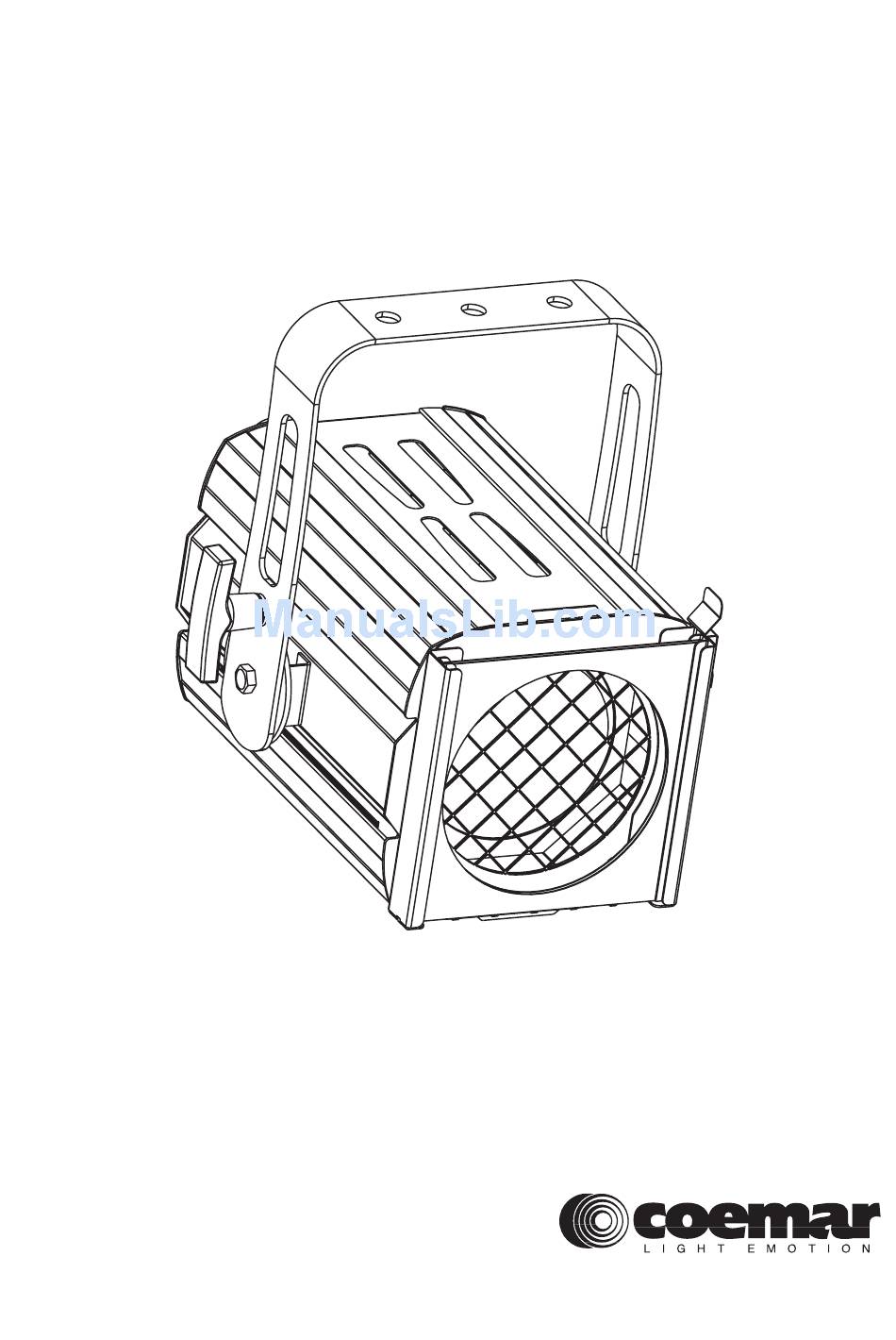

- Page 1 Risalto 2000 Fresnel-PC instruction manual manuale di istruzioni Version 1.0...
- Page 2 Risalto 2000 PC-Fresnel Serial number/Numero di serie Date of purchase/Data di acquisto Dealer/Fornitore Addres/Indirizzo Suburb/CAP/Città Capital City/Provincia State/Stato Tel./Fax. Please note in the space provided above the relative service information of the model and the retailer from whom you purchased your Risalto 2000: this information will assist us in providing spare parts, repairs or in answering any technical enquires with the utmost speed and accuracy.
-
Page 3: Table Of Contents
Index 1. Packaging and transportation Pag. 6 1.1 Packaging “ 1.2 Trasportation “ 6 2. General information Pag. 6 2.1 Important safety information “ 2.2 Warranty “ 2.3 CE Certification “ 3. Product specification Pag. 7 3.1 Technical characteristics “ 3.2 Dimensions “... -
Page 4: Packaging
Congratulations on having purchased a Coemar product, you have assurred yourself of a fixture of the highest quality, both in componentry and in technology used. We renew our invitation to you to complete the service information on the previous page, to send us any request for service information or spare parts (in case of problems encountered either during, or subsequent to, installation). -
Page 5: Technical Characteristics
Risalto 2000 PC - 12,7 Kg/28 Lbs 3.2 Dimensions 4. Lamp: installation and replacement 4.1 Lamp type Risalto 2000 can mount a 2000 W halogen lamps with GY16 type socket. Coemar suggests the use of Philips lamps: Type Wattage Voltage Colour temp. -
Page 6: Fixture Opening And Lamp Installation/Replacement
4.2 Fixture opening and lamp installation/replacement. WARNING ! ALWAYS DISCONNECT THE UNIT FROM MAINS POWER PRIOR TO OPENING THE FIXTURE With a flat screwdriver rotate 90° the locking screw on the top back of Risalto 2000 and open the door until it stops. Now you have access to the lamp holder. -
Page 7: Fixture Fixing
5.2 Fixture fixing Risalto 2000 yoke has three unthreadened 13 mm holes in order to mount a clamp or a mounting plate. Ensure that the choosen fixing material can bear the weight of the projector. We recommend the use of a safety chain locked to Risalto 2000 and to the suspension device in order to avoid casual falls of the fixture. -
Page 8: Main Supply Connection
Check the fixture for damage. Replace if necessary all damaged parts referring to the spare parts catalogue. 8. Spare parts Every parts of Risalto 2000 are available as spare parts from your Coemar service center. Accurate description of the fixture , model number, and type will help us in providing you assistance in an efficient and... - Page 9 Coemar S.p.A. Via Inghilterra 2/A – 46042 Castel Goffredo (Mantova) Italy Ph. +39 0376/77521 – Fax. +39 0376/780657 info@coemar.com Coemar reserves the right to effect modifications without notifications Coemar si riserva il diritto di apportare modifiche senza preavviso...
