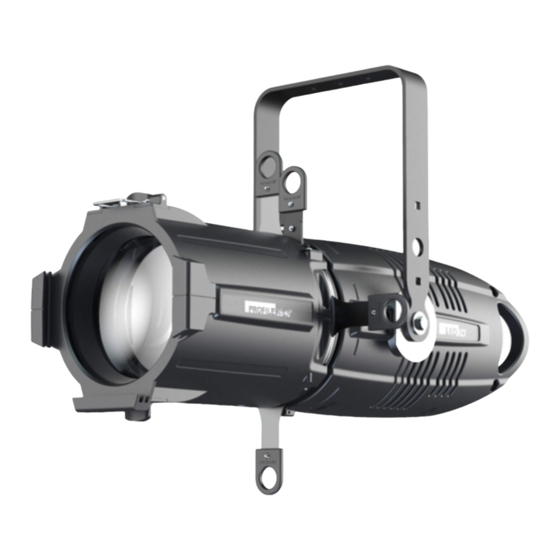

Coemar Reflection LEDko DIM T Manual
  1. Manuals
  2. Brands
  3. Coemar Manuals
  4. DJ Equipment
  5. Reflection LEDko DIM T
  6. Manual

Coemar Reflection LEDko DIM T Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
DIM T/D

Advertisement

Table of Contents
loading

Related Manuals for Coemar Reflection LEDko DIM T

Summary of Contents for Coemar Reflection LEDko DIM T

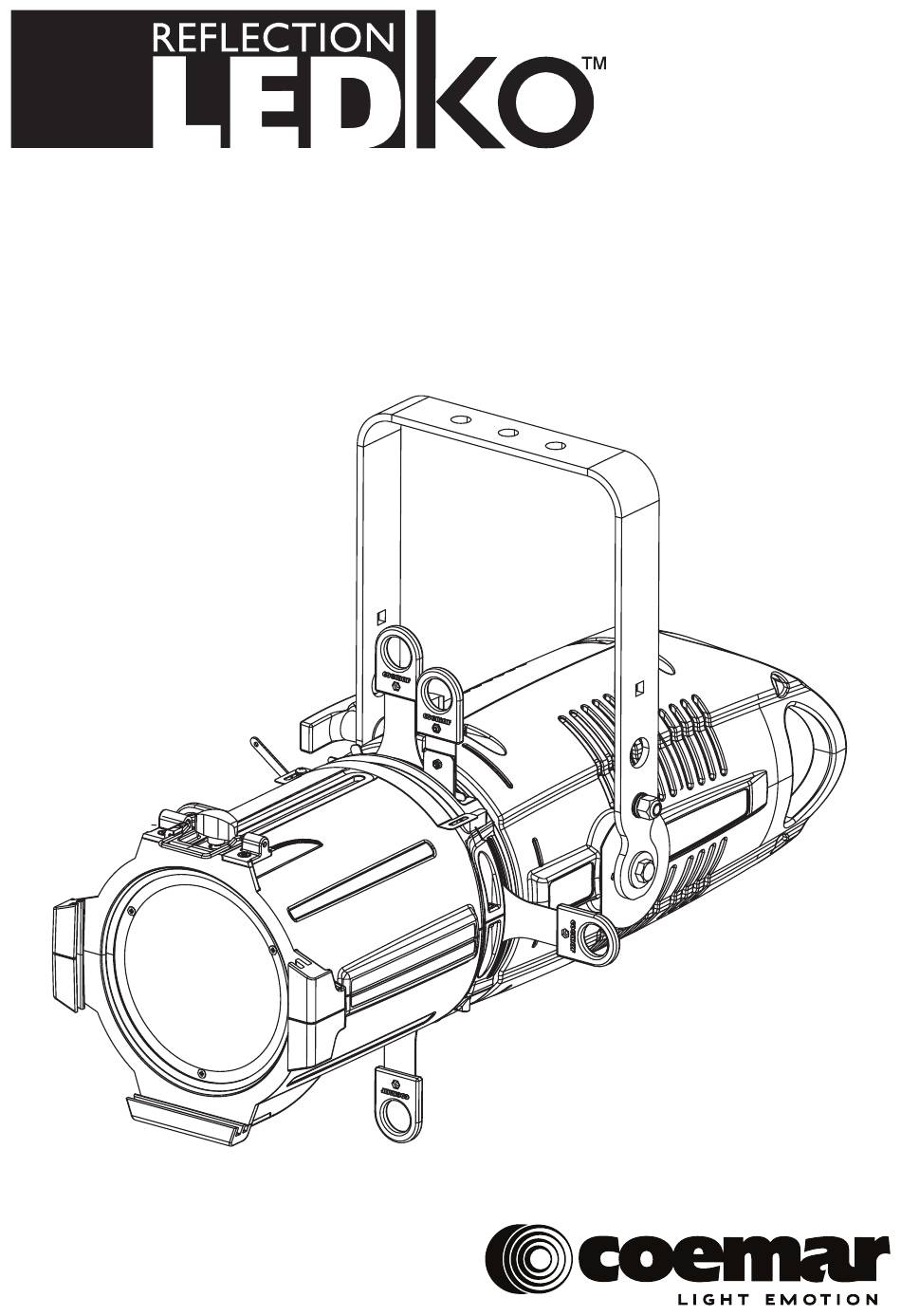

  • Page 1 DIM T/D...
  • Page 2 DIM T/D Serial Number: ....................................... Purchase date: ....................................... Dealer: ....................................... Address: ....................................... Suburb: ....................................... Country: ....................................... Phone / Fax: ....................................... Please note in the space provided above the relative service information of the model and the re- tailer from whom you purchased your LEDko T/D DIM: this information will assist us in providing spare parts, repairs or in answering any technical enquiries with the utmost speed and accuracy.

  • Page 3: Table Of Contents

    Index 1. Packaging and transportation ......................Pag. 5 1.1 Packaging ............................Pag. 5 1.2 Transportation ...........................Pag. 5 2. General information ........................... Pag. 5 2.1 Safety informations ......................... Pag. 5 2.2 Warranty conditions ........................Pag. 6 2.3 EC norms ............................Pag. 6 3. Product specifications ........................Pag. 7 3.1 Technical characteristics .........................Pag.
  • Page 4 11. Maintenance ............................. Pag. 24 11.1 Firmware update .......................... Pag. 24 11.2 Periodic cleaning ......................... Pag. 24 11.3 Periodic controls .......................... Pag. 24 11.4 Fuses ...............................Pag. 24 12. F.A.Q. and answers ......................... Pag. 25...

  • Page 5: Packaging And Transportation

    Congratulations on having purchased a Coemar product. You have assured yourself of a fixture of the highest quality, both in componentry and in the technology used. We renew our invitation to you to complete the service information on the previous page, to expedite any request for service information or spares (in case of problems encountered either during, or subsequent to, instal- lation).

  • Page 6: Warranty Conditions

    The level of technology of LEDko T/D DIM requires the use of specialised personnel for all service applications; refer all work to your authorised Co- emar service centre. A good earth connection is essential for the proper functioning of the projec- tor.

  • Page 7: Product Specifications

    Product specifications Technical characteristics Power supply 90-230 V, auto-sensing, 50/60 Hz Maximum current 0.86 A at 230 V, 1.76 A at 115 V Power factor Cosφ = 0.99 Max power consumption 200 W Color temperature Tungsten: 3.200 K - Daylight: 5.600 K Color Rendering Index (CRI) D and T models: CRI 80, CRI 90 Weight (without optic)

  • Page 8: Unit's Main Components

    Unit’s main components Components description A Adjustable yoke Iris (optional) Gobo holder (optional) Lens adjusting handles Yoke locking handle Gel frame locking spring Profile blade H Interchangeable optic...

  • Page 9: Back Panel Description

    Back panel description Display Potentiometer Plus button knob Menu button Minus button Enter button PowerCon In DMX Out DMX In PowerCon Out...

  • Page 10: Installation

    . Installation Optical installation Remove the frontal cap by loosening the upper and lower screws enough to free the cap itself, set the optic’s flange tilted about 60°. Insert the optic’s flange into the body’s receptacle and turn the optic 60° until it is firmly assembled to the projector body, free to rotate but not free to detach itself from the body.

  • Page 11: Mechanical Installation

    The safety chain must pass through the handles of the unit and then attached to the structure. If using steel cables and chains not Coemar’s production, make sure they are suitable to sup- port the weight of the unit according to normative UL/ETL (required: the weight of 6 complete devices for at least one hour).

  • Page 12: Powering Up

    Note: in case of cable replacement, similar cable with comparable thermal resistant qualities must be used exclusively (cable 3 X 1,5 ø external 10 mm, rated 300/500V, tested to 2 KV, op- erating temperature -40°C + 180°C, Coemar cod. CV5311). Connection to mains power LEDko T/D DIM is equipped with two power connectors, one as input and one as output, which can be used to feed up to 8 (at 230 V) or 4 (at 115 V) fixtures.

  • Page 13: Control Signal Connections

    Warning!! The use of a thermal/magnetic circuit breaker is recommended. Strict adherence to regula- tory norms is strongly recommended. LEDko T/D DIM should not be powered through a dimmer as this may damage the internal switching power supply. Prior to connecting the device to mains power, ensure that the mains characteristics are within the recommended range for the use of LEDko T/D DIM.

  • Page 14: Turning The Projector On

    . Turning the projector on After having followed the preceding steps described, proceed with the power supply and turn on the projector connecting it to the mains power. Once you had connected the projector, use the potentiometer knob to regulate the luminous flux. The software version installed on the internal microprocessors will be shown on the display, suddenly it will show the current DMX addressing.

  • Page 15: Dmx Chart

    . DMX chart 8.1. DMX Chart 5 channels type of channel function effect decimal percentage control master dimmer proportional adjust luminous output intensity from 0 to 100% 0 - 255 0% - 100% spare channel step no effect 0 - 255 0% - 100% dimmer fine proportional...

  • Page 16: Display Panel Functions

    Changing the preset settings made by Coemar can vary the functions of the projector so that it will respond differently to the controller; therefore carefully read about the functions described here before carrying out any possible selection.

  • Page 17: Main Functions Menu

    Main functions menu Dimmer: HEnO Choose the type of dimmer curve: • Xeno: quick curve; diMM tUnG • Tungsten: mimics the slow dim- ming curve of tungsten lamps; • Reverse: inversion phase of the FIrE [Dimmer] Dimmer Power Unit; • Normal: forward phase of the nOrM Dimmer Power Unit.
  • Page 18 d.MAX: d.MAH Disables the adjusting of the leds setting them at maximum output. Reset: It permits the reset of the unit. Keep- ing pressed ENTER and MENU at the rESE turning on of the unit It allows to ac- cess ALIG features. [Reset] Default settings: Restores all the settings to default...

  • Page 19: Measure (Meas)

    Measures menu (MEAS) Temperature: tEMP t.bor Shows the current temperature val- ues: t.LEd • LED: shows the LED module [Temperature] temperature; • Board: shows the electronic board temperature. l.out l.out: shows the current output of the LED. DMX Input: Shows the value of the DMX chan- nels received by the fixture on every CH01 channel that the fixture occupies on...
  • Page 20 LED: Shows the percentage value of the M.000 LED status. [Led] LED frequency: Shows the operating frequency of the LED. Usage hours: [Led frequency] Shows the hour counter of the fix- ture: • Unit: shows the overall hours of life of the fixture; LIF.r •...

  • Page 21: Special Functions Of The Fixture

    If a malfunction occurs, LEDko T/D DIM has a self-diagnostic system that will show the error message on the display. The following table will explain in detail the most common errors. If, despite of suggested intervention, the problem persists, call the Coemar Service Center. Error code...

  • Page 22: Accessories And Spare Parts

    . Accessories and spare parts LEDko T/D DIM is a very versatile fixture, optional accessories for its customization are available under request: Accessory name Code Front barrel for lens tube with burnished blades BC10011A200 Profile 5°, lens tube BC10011A041 Profile 10°, lens tube BC10011A042 Profile 14°, lens tube BC10011A023...
  • Page 23 BC10011A044 max. load 20 Kg. All the components of LEDko T/D DIM are available as spare parts from your Coemar dealer or Service. Accurate description of the fixture, model number and type will assist us in providing for your requirements in an efficient and effective manner.
  • Page 24 . Maintenance 11.1 Firmware update The firmware of LEDko T/D DIM can be updates through the RDM protocol (ANSI E1.20). Con- tact Coemar assistance to receive the software and the device updater. 11.2 Periodic cleaning Lenses Even a thin layer of dust can reduce the luminous output and alter the consistency of the beam.
  • Page 25 . F.A.Q. and answers The following list shows common issues that may be simply solved. If issues persist, the unit must be repaired by a qualified personnel or just contact your Coemar service near you. Question Possible solution Projector not powered on: •...
  • Page 26 User notes ........... . .
  • Page 27 Information on disposal of the equipment The equipment at the end of its useful life must be disposed of at an appropriate recycling center for waste electrical and electronic equipment. The treatment and disposal of environmentally friendly, helps prevent potential negative environmental and health and promote the reuse and / or recycling of materials making up the equipment.
  • Page 28 Coemar Lighting s.r.l. Via Carpenedolo 90 46043 Castiglione delle Stiviere, Mantova, Italy phone. +39 0376/1514412 - fax +39 0376/1514380 info@coemar.com Coemar reserves the right to change specifications without prior notice...
