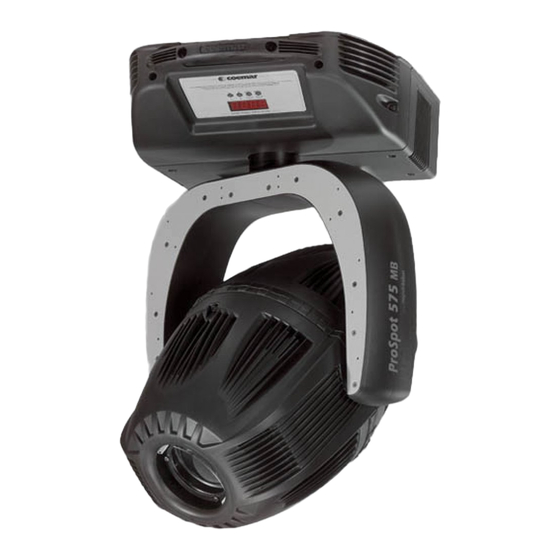

Summary of Contents for Coemar PROSPOT 575MB

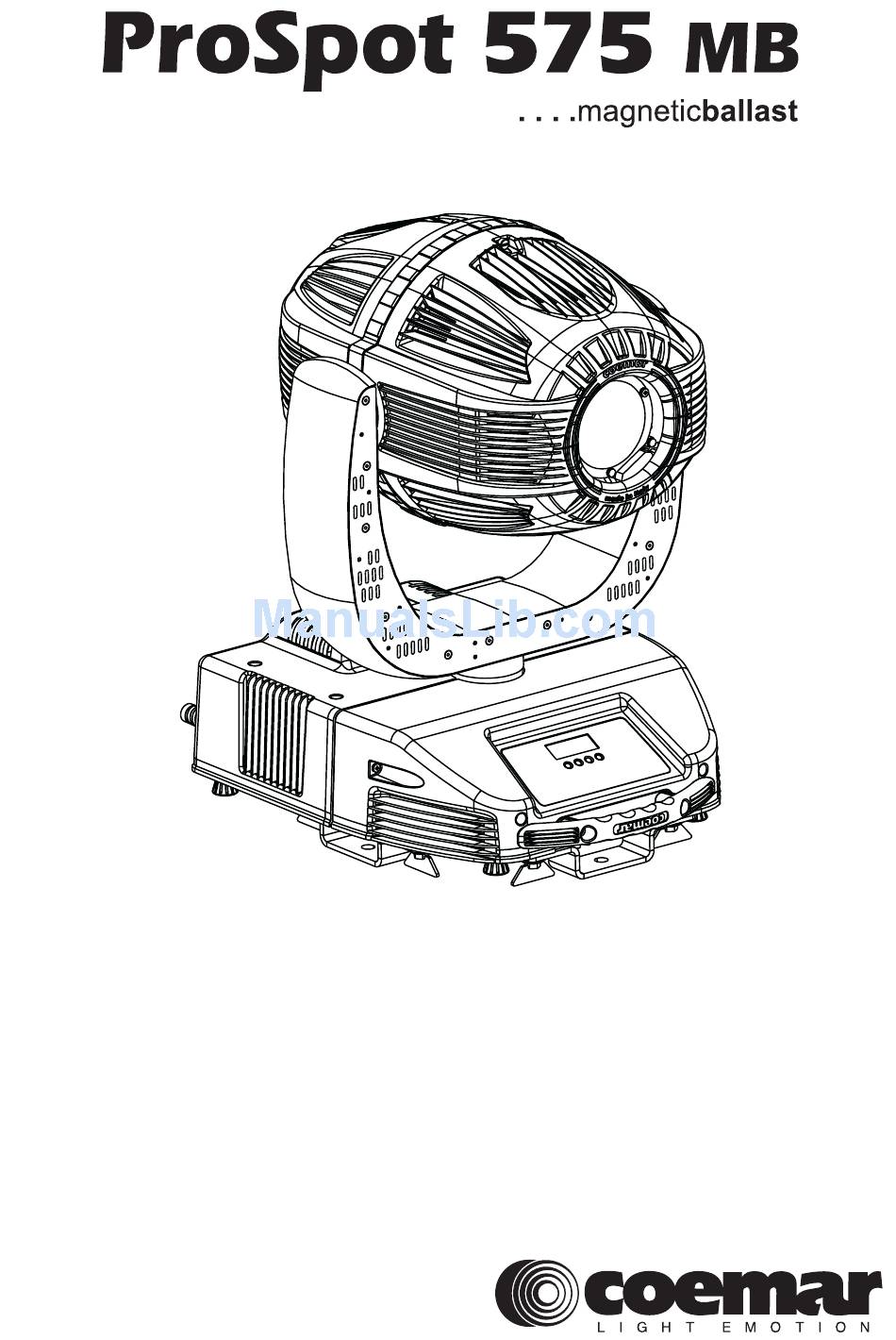

- Page 1 manuale di istruzioni instructions manual 1^ edizione Settembre 2005 1st edition September 2005...
- Page 2 ProSpot 575 numero di serie/serial number data di acquisto/date of purchase fornitore/retailer indirizzo/address cap/città/suburb provincia/capital city stato/state tel./fax/ Prendete nota, nello spazio apposito, dei dati relativi al modello e al rivenditore del vostro ProSpot 575 MB: in caso di richiesta di informazioni, pezzi di ricambio, servizi di riparazione o altro ci permetteranno di assistervi con la massima rapidità...
-
Page 3: Table Of Contents
English Index 1. Packaging and transportation Pag. 4 1.1. Packaging “ 1.2. Transportation “ 2. General information Pag. 4 2.1. Important safety information “ 2.2. Warranty conditions “ 2.3. CE norms “ 3. Product specifications Pag. 5 3.1. Technical characteristics “... -
Page 4: Packaging
English Congratulations on having purchased a coemar product. You have assured yourself of a fixture of the highest quality, both in compo- nentry and in the technology used. We renew our invitation to you to complete the service information on the previous page, to expe- dite any request for service information or spares (in case of problems encountered either during, or subsequent to, installation). -
Page 5: Warranty Conditions
3. The warranty is immediately void if the projector has been operated or dismantled by unauthorised personnel 4. The warranty does not extend to fixture replacement 5. The serial number of the projector is required for any advice or service fro your authorised coemar service centre 2.3. CE norms The projector meets or exceeds all applicable CE requirements. -
Page 6: Mechanical Installation
You may attach the safety chain to the holes “D” located on the base of the fixture and to the structure itself. If using an after-market safety chain not manufactured by Coemar, ensure that it is of sufficient rating to hold the weight of the unit. -
Page 7: Operating Voltage And Frequency
5.1. Operating voltage and frequency The projector may operate at voltages of 208, 230 or 240VAC at a frequency of 50 or 60Hz. Coemar presets (barring specific requests) a voltage of 240v at a frequency of 50Hz.. The preset voltage is indicated on the base of the projector. -
Page 8: Mains Connection
331,IEC 332 3C,CEI 20 35. NB: In case of cable replacement, similar cable with comparable thermal resistant qualities must be used exclusively (cable 3x1.5 ø external 10 mm, rated 300/500V, tested to 2KV, operating temperature -40° +180°, Coemar cod. CV5309). Connecting to mains power For connection purposes, ensure your plug is of a suitable rating to sustain the maximum current: •208/230/240V... - Page 9 IP 20 or MSD ie max: 5A ie max: 10A 150°C 35°C 0,98 base: GX 9,5 made in italy serial number: by coemar spa, Castel Goffredo Mantova - Italy Controller Standard DMX 512 factory set main at: 100V 115V dmx 512...
-
Page 10: Dmx Addressing
English 7. Turning on the projector After having followed the preceding steps, turn on the projector via the main Power switch. “D” The display and will show in sequnece the software version installed in the 3 onboard microprocessors - the display and the two “A”... -
Page 11: Dmx Functions
English 7.2. DMX functions channel function type of control effect decimal percentage X axis, base movement control of the pan movement of the beam of light via proportional proportional - 255 0% - 100% (pan) rotation of the base motor X axis, fine base movement fine control of the pan movement of the beam of light via proportional proportional... - Page 12 English channel function type of control effect decimal percentage fine indexing / accurate positioning of the gobo proportional - 100 0% - 39% (if channel 12 is above of level 10) continuous rotation of the gobo in a counterclockwise direction proportional 101 - 176 40% - 69% gobo rotation on wheel 1...
-
Page 13: Quick Guide To Menu Navigation
Changing the preset settings made by Coemar can vary the functions of the device so that it may not respond to a DMX 512 controller being used to control it. Carefully follow the instructions before applying any variations or selections. -
Page 14: Measure And Test (Meas)
English 8.2. Measure and test (MEAS) The internal microprocessor of the ProSpot 575 MB allows for several diagnostic and output parameters to be displayed. You may record, in this menu, determine the position in which the projector will come to rest when turned on with no dmx signal attached. -
Page 15: Function Settings (Func)
English 8.3. Function settings (FUNC) The projector allows the altering of several functions and for selecting personalised settings. AOO1 A 0 23 A 0 23 enter +o– DMX address 23 new DMX address select new DMX address menu MEAS F U NC +o–... -
Page 16: Connecting The Dr1
English 8.5.Connecting the DR1 All the functions available via the display menu are also available via the DR1 (cod. CO9703). The DR1 is a remote device designed for technical users who need to perform tasks on the projectors whilst they may be located in inac- cessible positions. -
Page 17: Lamp Installation
English 9. Lamp installation and alignment The ProSpot 575 MB utilises the Philips 575 MSR/2 or Philips 575 MSD 575W GX 9,5 base lamps. These lamps are available via your Coemar distributor or service centre. Lamp Philips 575 MSR/2 Philips 575 MSD... -
Page 18: Aligning The Lamp In The Optical Path
English 4. Insert the lamp The lamp used is manufactured from quartz glass and should be handled with care; always adhere to the instructions supplied in the lamp’ s packaging. Never touch the glass directly, use the tissue provided in the lamp’ s packaging. The GX 9,5 lampbase is symmetrical in construction. -
Page 19: Gobo Dimensions
ProSpot 575 MB utilises a mechanical system which allows the fixture’ s gobos to be removed without the need for specialised equipment. Replacement gobos should be made of either heat resistant glass or metal. An ever-increasing range of gobos is available from your Coemar sales network. 10.1. Gobo dimensions ProSpot 575 MB utilises gobos with thicknesses between 0.2 and 3.5 mm. -
Page 20: Gobo Replacement
English 10.3. Gobo replacement To replace gobos, proceed as follows: 1. Open up the projector housing as discussed in section 10.3. Opening up the projector housing. 2. Loosen the thumbscrew shown in the diagram below and remove the guard to gain full access to the gobo wheel. 3. -
Page 21: Periodic Cleaning
Periodically check all mechanical devices for wear and tear; gears, guides, belts, etc., replacing them if necessary. Periodically check the lubrication of all components, particularly the parts subject to high temperatures. If necessary, lubricate with suitable lubricant, available from your coemar distributor. Electrical components Check all electrical components for correct earthing and proper attachment of all connectors, refastening if necessary. -
Page 22: Electronic Motor Alignment
The display panel of the ProSpot 575 MB allows for the electronic alignment of the projector’ s motors in the optical system. This pro- cedure is performed by Coemar at the factory. It may be useful to perform this procedure in the case of internal components being repla- ced. -
Page 23: Error Messages
The initial parameter settings are incorrect or corrupt; the projector has reloaded its factory default settings. Turn the projector off and on again. Should the error reoccur, refer the unit to your authorised coemar service centre to have the EEPROM check and possibly replaced. -
Page 24: Frequently Asked Questions
English 15. Frequently asked questions Question Possible cause Possible solution The projector is completely Projector not powered up. Check that the mains power cable is connected immobile. to power. The circuit breaker is switched off. Set the circuit breaker to ON. The protection fuse is blown. - Page 25 Inghilterra 2/A - 46042 Castel Goffredo (Mantova) Italy ph. +39 0376/77521 - fax +39 0376/780657 info@coemar.com Coemar si riserva il diritto di apportare modifiche senza preavviso. Coemar reserves the right to effect modifications without notification manuale istruzioni instruction manual...
