Coemar ReLite Led Kit DIM Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
ReLite Led
Kit DIM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ReLite Led Kit DIM and is the answer not in the manual?

Questions and answers

Related Manuals for Coemar ReLite Led Kit DIM

Summary of Contents for Coemar ReLite Led Kit DIM

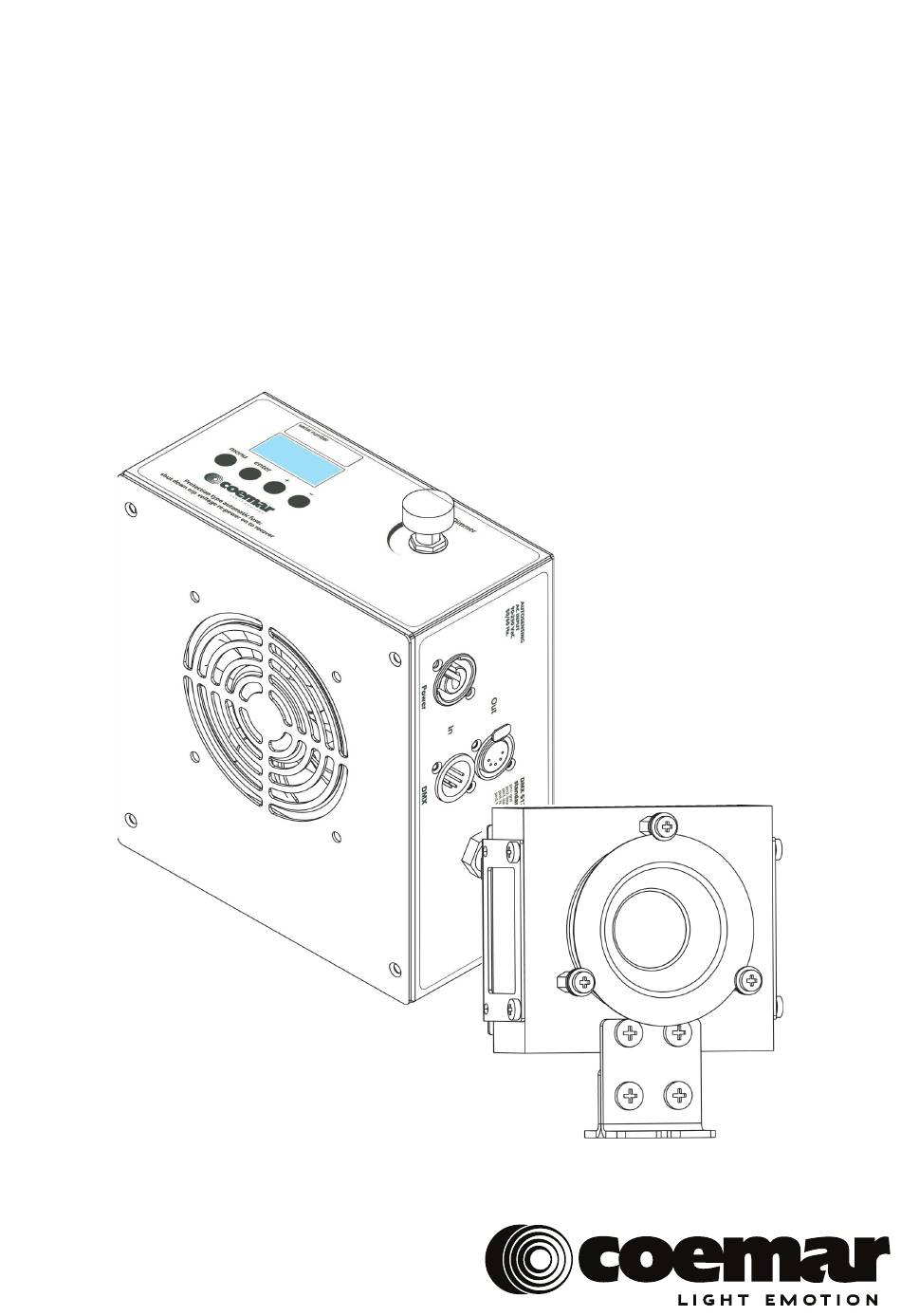

  • Page 1 ReLite Led Kit DIM...
  • Page 2 Please note in the space provided above the relative service information of the model and the retailer from whom you purchased your ReLite Led Kit DIM: this information will assist us in providing spare parts, repairs or in an- swering any technical enquiries with the utmost speed and accuracy.

  • Page 3: Table Of Contents

    6.1 Control signal connection by XLR5 plugs ...................... Pag. 9 6.2 Power Unit ............................... Pag. 9 7. Turning the ReLite Led Kit DIM on ........................Pag. 10 7.1 DMX address of the unit ..........................Pag. 10 8. DMX chart ................................Pag. 11 8.1 DMX chart 5 channels ............................

  • Page 4: Packaging And Transportation

    Italiano Congratulations on having purchased a Coemar product. You have assured yourself of a fixture of the highest quality, both in componentry and in the technology used. We renew our invitation to you to complete the service information on the previous page, to expedite any request for service information or spares (in case of problems encountered either during, or subsequent to, installation).

  • Page 5: Warranty Conditions

    Italiano 3. The level of technology of ReLite Led Kit DIM requires the use of specialised personnel for all service applications; refer all work to your authorised Coemar service centre. 4. A good earth connection is essential for the proper functioning of the projector. Never connect the fixture if there is no earth connection.

  • Page 6: Product Specifications

    Italiano . Product specifications Technical characteristics Power supply 90-230 V, auto-sensing, 50/60 Hz Maximum current Depending on the LED module and the size/model of the fixture Power factor Cosφ > 0.7 Max power consumption Depending on the LED module and the size/model of the fixture Color temperature Tungsten: 3.200 K - Daylight: 5.600 K Color Rendering Index (CRI)

  • Page 7: Unit's Main Components

    Italiano Unit’s main components Components description Display panel Potentiometer Knob PowerCon In D DMX In DMX Out Skintop H Heatsink...

  • Page 8: Installation

    Installation Mechanical installation With ReLite Led Kit DIM will be possible to give new life to your projector, simply replacing the old lamp with the ReLite Led Group. The ReLite Led Box can be fixed wherever you want through the fixing plates present on the box (A).

  • Page 9: Control Signal Connections

    Pin#1 and housing must never be connected to the power supply unit. Power Unit The ReLite Led Kit DIM can be also used with a power unit that allows an absolute dimming control for your fixture.

  • Page 10: Turning The Relite Led Kit Dim On

    When powered up initially, each projector will show “A001”, which indicates that the fixture will start respond- ing from the first DMX channel; ReLite Led Kit DIM also uses 5 DMX channels, which means that it will re- spond to the commands from channel 1 to channel 5 of your DMX 512 controller. Accordingly a second unit should be addressed as A006, a third one as A011 and so on.

  • Page 11: Dmx Chart

    Italiano . DMX chart 8.1. DMX chart 5 channels channel function type of control effect decimal percentage adjust luminous output intensity master dimmer proportional - 255 0% - 100% from 0 to 100% spare channel step no effect - 255 0% - 100% dimmer fine proportional...

  • Page 12: Display Panel Functions

    ENTER button to access to any other function. By suitably using all the functions of ReLite Led Kit DIM, which can be activated through its display panel, it is possible to change some of the parameters and to add some functions. Changing the preset settings made by Coemar can vary the functions of the projector so that it will respond differently to the controller;...

  • Page 13: Main Functions Menu

    Italiano Main functions menu Dimmer: HEnO Choose the type of dimmer curve: • Xeno: quick curve; • Tungsten: mimics the slow dimming diMM tUnG curve of tungsten lamps; • Reverse: inversion phase of the Dim- FIrE [Dimmer] mer Power Unit; •...
  • Page 14 Italiano d.MAX: Disables the adjusting of the leds setting d.MAH them at maximum output. Reset: It permits the reset of the unit. Keeping pressed ENTER and MENU at the rESE turning on of the unit It allows to access ALIG features. [Reset] Default settings: Restores all the settings to default value...

  • Page 15: Measures Menu (Meas)

    Italiano Measures menu (MEAS) Temperature: tEMP t.bor Shows the current temperature values: • LED: shows the LED module tem- perature; t.LEd [Temperature] • Board: shows the electronic board temperature. l.out: l.out shows the current output of the LED. DMX Input: Shows the value of the DMX channels re- ceived by the fixture on every channel that the fixture occupies on the line.
  • Page 16 Italiano LED: Shows the percentage value of the LED M.000 status. [Led] LED frequency: Shows the operating frequency of the LED. Usage hours: Shows the hour counter of the fixture: [Led frequency] • Unit: shows the overall hours of life of the fixture;...

  • Page 17: Special Functions Of The Fixture

    To decrease the noise and the power consumption the cooling fan turns off after 10 minutes of fixture inactivity. Error messages If a malfunction occurs, ReLite Led Kit DIM has a self-diagnostic system that will show the error message on the display. The following table will explain in detail the most common errors. If, despite of suggested interven- tion, the problem persists, call the Coemar Service Center.

  • Page 18: Spare Parts

    Spare parts All ReLite Led Kit DIM’s spare parts are available from your Coemar service centers. Specifying in detail the pro- jector model and the replacement part requested, will help the service center to serve you in the best way.

  • Page 19: Usage Warnings

    (depending on the installation conditions). 2. If only few ReLite Led Kit DIM are connected to a power unit of a certain size (2000 W), an additional com- ponent called dump load resistor is required, which will charge extra watt to activate the triacs. This device will be inserted into the power cord, dissipating the watt needed to ensure the ignition.
  • Page 20 Italiano User notes ...............................................................................................................................................................................................................................................................................................................................................................................................................................................................
  • Page 21 Italiano Information on disposal of the equipment The equipment at the end of its useful life must be disposed of at an appropriate recycling center for waste electrical and electronic equipment. The treatment and disposal of environmentally friendly, helps prevent potential negative environmental and health and promote the reuse and / or recycling of materials making up the equipment.
  • Page 22 Coemar Lighting s.r.l. Via Carpenedolo 90 46043 Castiglione delle Stiviere, Mantova, Italia tel. +39 0376/1514412 - fax +39 0376/1514380 info@coemar.com Coemar reserves the right to change specifications without prior notice...
