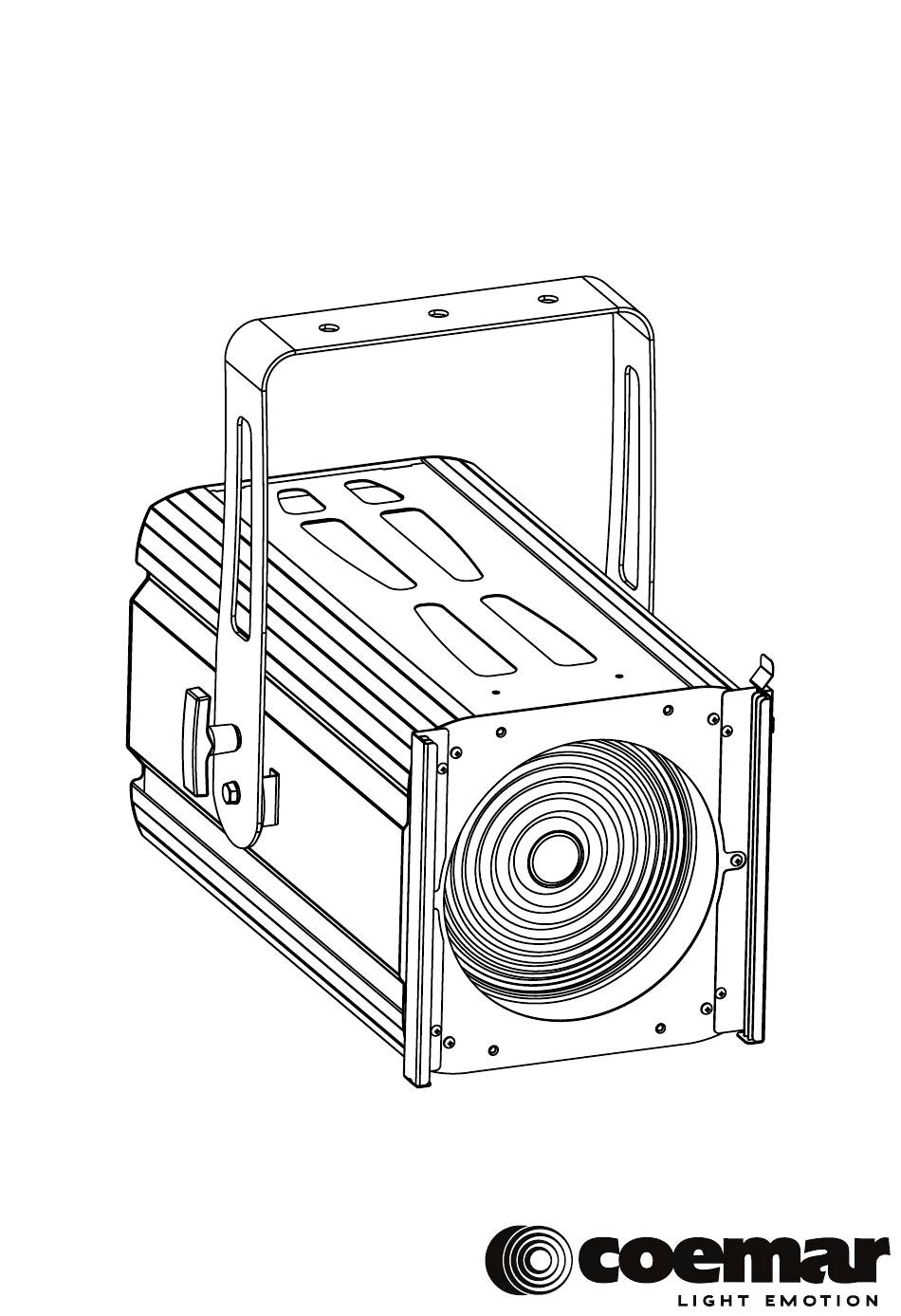

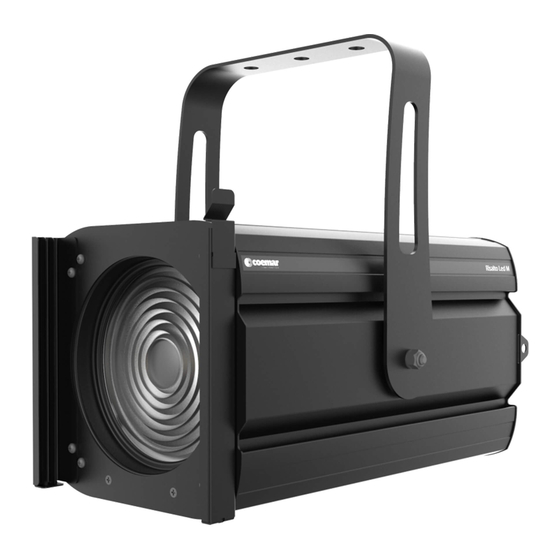

  • Page 1 Risalto Led M...
  • Page 2 Please note in the space provided above the relative service information of the model and the retailer from whom you purchased your Risalto Led M: this information will assist us in providing spare parts, repairs or in answering any technical enquiries with the utmost speed and accuracy.

  • Page 3: Table Of Contents

    Index 1. Packaging and transportation .........................Pag. 4 1.1 Packaging .............................Pag. 4 1.2 Transportation .............................Pag. 4 2. General information ..........................Pag. 4 2.1 Safety informations ........................... Pag. 4 2.2 Warranty conditions ......................... Pag. 5 2.3 EC norms ............................Pag. 5 3. Product specifications ..........................Pag. 6 3.1 Technical characteristics ........................Pag.

  • Page 4: Packaging And Transportation

    1 Filter frame 1 Instruction manual 1 Main power plugs Transportation The Risalto Led M should be transported in either its original packaging or in an appropriate flight case. . General information Safety informations Fire prevention: 1. Never locate the fixture on any flammable surface.

  • Page 5: Warranty Conditions

    3. The level of technology of Risalto Led M requires the use of specialised personnel for all service applications; refer all work to your authorised Coemar service centre. 4. A good earth connection is essential for the proper functioning of the projector. Never connect the fixture if there is no earth connection.

  • Page 6: Product Specifications

    Product specifications Technical characteristics Power supply 85-264 V, auto-sensing, 50/60 Hz Maximum current 0.92 A at 230 V, 1.83 A at 115 V Power factor Cosφ = 0.95 Max power consumption 200 W Color temperature Tungsten: 3200 K - Daylight: 5600 K Color Rendering Index (CRI) Weight (without optic) 8.5 Kg - 18.74 lbs...

  • Page 7: Unit's Main Components

    Unit’s main components Components description Adjustable yoke Yoke locking handle Color frame locking spring D Color frame holder Lens (Fresnel)

  • Page 8: Back Panel Description

    Back panel description Display Plus button Menu button Minus button Enter button DMX In DMX Out PowerCon In PowerCon Out Zoom Knob...

  • Page 9: Installation

    Safety chain Risalto Led M yoke has three unthreatened 13 mm holes in order to mount a clamp or a mounting plate. Ensure that the chosen fixing material can bear the weight of the projector. We recommend the use of a safety chain...

  • Page 10: Positioning And Light Beam Adjusting

    Accessories fixing Risalto Led M has on its front a receptacle for the mounting of a filter frame, a color changer or a barndoor. When you mount one of these accessories, ensure that they are firmly fixed and kept in place by the locking spring.

  • Page 11: Powering Up

    180°C, Coemar cod. CV5311). Connection to mains power Risalto Led M equipped with two power connectors, one as input and one as output, which can be used to feed up to 8 (at 230 V) or 4 (at 115 V) fixtures.

  • Page 12: Control Signal Connections

    The use of a thermal/magnetic circuit breaker is recommended. Strict adherence to regulatory norms is strongly recommended. Risalto Led M should not be powered through a dimmer as this may damage the internal switching power supply. Prior to connecting the device to mains power, ensure that the mains characteristics are within the rec- ommended range for the use of Risalto Led M.

  • Page 13: Turning The Projector On

    1 to channel 5 of your DMX 512 controller. Accordingly a second unit should be addressed as A006, a third one as A011 and so on. The operation must be carried out on every Risalto Led M which has an address different from A001.

  • Page 14: Dmx Chart

    LED control frequency tuning 16.000 Hz 242 - 247 95% - 97% LED control frequency tuning 19.000 Hz 248 - 255 97% - 100% Projector: Risalto Led M T / D Chart name: DMX512 function Software version: 1.42 or following Edition: 2 Date: 06.12.2019...

  • Page 15: Display Panel Functions

    ENTER button to access to any other function. By suitably using all the functions of Risalto Led M, which can be activated through its display panel, it is pos- sible to change some of the parameters and to add some functions. Changing the preset settings made by Coemar can vary the functions of the projector so that it will respond differently to the controller;...

  • Page 16: Quick Dimmer Menu

    Quick dimmer menu By pressing the enter button, the user will enter the quick dimmer menu: thanks to this menu it will be possible to increase and decrease the light intensity in steps of 10 (in a range from 0 to 100).

  • Page 17: Main Functions Menu

    Main functions menu Tungsten: tUnG Mimics the slow dimming curve of tungsten lamps. [Tungsten] Dimmer: It allows the selection of different dimmer curves: exponential (default), logarithmic and linear; Test: dIMM Allows to manually set the DMX channels controlled by a DMX console: [Exponential] [Dimmer] •...
  • Page 18 DMX channels: Shows the DMX mode and number of channels 5 CH selectable; Channels] [DMX channels] Display functions: Changes the display settings: 1 CH • Reverse: rotates the display of 180°; • Auto: Sets or disables the automatic display Channel] turn off function, which would occur after 10 seconds of inactivity;...

  • Page 19: Measure (Meas)

    Measures menu (MEAS) Temperature: tEMP Shows the current temperature values: t.LEd • LED: shows the LED module temperature; [LED Temperature] • Board: shows the electronic board temper- [Temperature] ature. Volt: Shows the power supply voltage. [Board Temperature] DMX Input: vOLt Shows the value of the DMX channels received by the fixture on every channel that the fixture occupies on the line.
  • Page 20 LED: Shows the percentage value of the LED status. Fre: Shows the operating frequency of the LED (611 Hz as default). [LED Status] Fan speed: Shows the voltage in which the fan is operating Usage hours: Shows the hour counter of the fixture: •...

  • Page 21: Electronic Alignment Of The Leds

    The display panel of Risalto Led M allows the electronic alignment of the LEDs, this procedure is performed by Coemar at the time of testing, this procedure may be useful for special effects or in case of replacement of internal components (PCBs, LEDs, etc...).

  • Page 22: Special Functions Of The Fixture

    To decrease the noise and the power consumption the cooling fan turns off after 10 minutes of fixture inactivity. Error messages If a malfunction occurs, Risalto Led M has a self-diagnostic system that will show the error message on the display. The following table will explain in detail the most common errors. If, despite of suggested intervention, the problem persists, call the Coemar Service Center.

  • Page 23: Maintenance

    . Maintenance 10.1 Firmware update The firmware of Risalto Led M can be updates through the RDM protocol (ANSI E1.20). Contact Coemar assistance to receive the software and the device updater. 10.2 Periodic cleaning Lenses Even a thin layer of dust can reduce the luminous output and alter the consistency of the beam. Regularly clean all filters and lenses using a soft cotton cloth, dampened with a special lens cleaning solution.

  • Page 24: And Answers

    . F.A.Q. and answers The following list shows common issues that may be simply solved. If issues persist, the unit must be repaired by a qualified personnel or just contact your Coemar service near you. Question Possible solution Projector not powered on: Risalto Led M does not •...
  • Page 25 User notes ..............................................................................................................................................................................................................................................................................................................................................................................................................................................................
  • Page 26 Information on disposal of the equipment The equipment at the end of its useful life must be disposed of at an appropriate recycling center for waste electrical and electronic equipment. The treatment and disposal of environmentally friendly, helps prevent potential negative environmental and health and promote the reuse and / or recycling of materials making up the equipment.
  • Page 27 Coemar Lighting s.r.l. Via Carpenedolo 90 46043 Castiglione delle Stiviere, Mantova, Italy phone. +39 0376/1514412 - fax +39 0376/1514380 info@coemar.com Coemar reserves the right to change specifications without prior notice.
