Summary of Contents for Coemar LEDko FullSpectrum Series 2

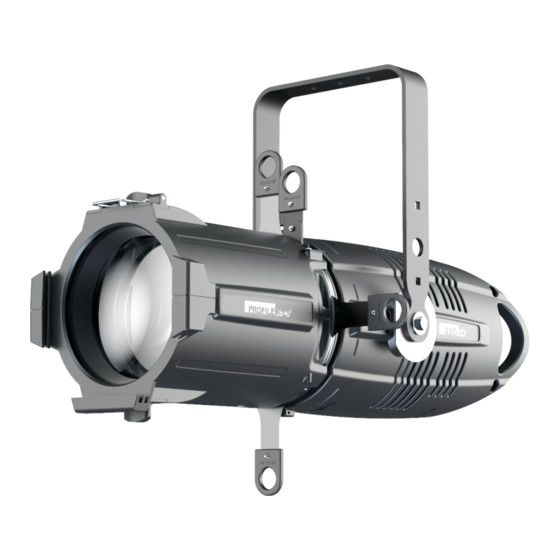

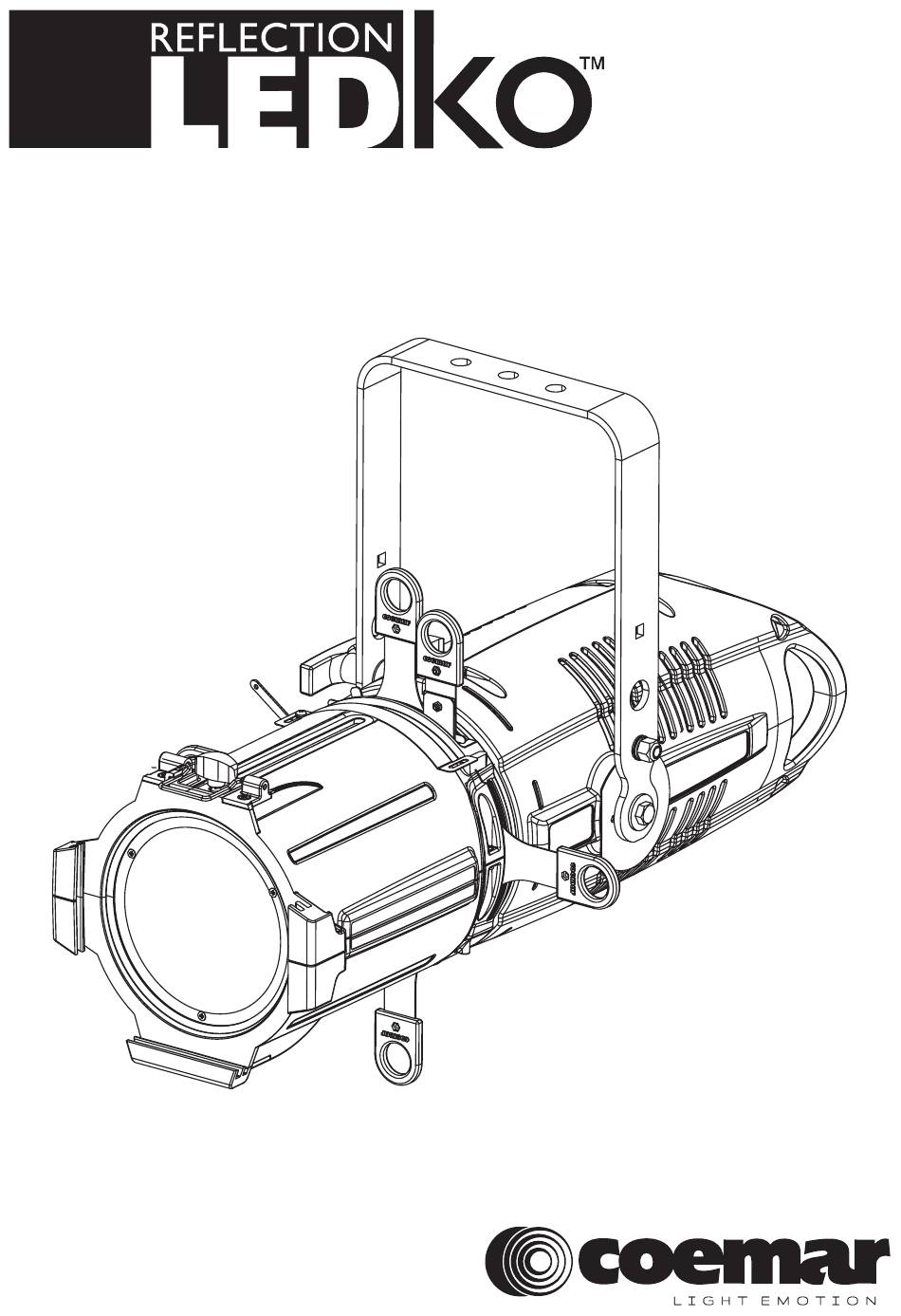

- Page 1 FullSpectrum Series 2...
- Page 2 Please note in the space provided above the relative service information of the model and the retailer from whom you purchased your LEDko FullSpectrum Series 2: this information will assist us in providing spare parts, repairs or in answering any technical enquiries with the utmost speed and accuracy.
-
Page 3: Table Of Contents
Index 1. Packaging and transportation......................Pag. 5 1.1. Packaging................................Pag. 5 1.2. Transportation..............................Pag. 5 2. General information............................Pag. 5 2.1 Safety informations............................Pag. 5 2.2 Warranty conditions............................Pag. 6 2.3 EC Norms ................................Pag. 6 3. Product specifications ..........................Pag. 7 3.1 Technical characteristics..........................Pag. 7 3.2 Dimensions................................Pag. 7 3.3 Unit’s main components..........................Pag. - Page 4 11. Maintenance..............................Pag. 30 11.1 Firmware update............................Pag. 30 11.2 Periodic cleaning............................Pag. 30 11.3 Periodic controls............................Pag. 30 11.4 Fuses................................Pag. 30 12. F.A.Q. and answers........................... Pag. 31...
-
Page 5: Packaging And Transportation
1 Reflection LEDko FullSpectrum Series 2 1 Instruction manual 1 Main power plugs Transportation The LEDko FullSpectrum Series 2 should be transported in either its original packaging or in an appropriate flight case. . General information Safety informations Fire prevention: 1. -
Page 6: Warranty Conditions
3. The level of technology of LEDko FullSpectrum Series 2 requires the use of specialised personnel for all service applications; refer all work to your au- thorised Coemar service centre. 4. A good earth connection is essential for the proper functioning of the projec- tor. -
Page 7: Product Specifications
Product specifications Technical characteristics Power supply 90-230Vac, 50-60Hz Maximum current 0.85 A a 230 VaC - 2.15 A a 90 Vac Power factor Cosϕ = 0.98 Power consumption 180 watt RGBW, with pure colour mixing throughout the Color temperature field and all whites from 3200 to 10000 K Weight (without optic) 6kg - 13.2lbs Maximum room temperature... -
Page 8: Unit's Main Components
3.3. Unit’s main components Components description A Adjustable yoke B Iris (optional) C Gobo holder (optional) D Lens adjusting handles E Yoke locking handle F Gel frame locking spring G Profile blade H Interchangeable optic... -
Page 9: Back Panel Description
Back panel description Display Plus button Menu button Minus button DMX In Enter button DMX Out PowerCon In PowerCon Out... -
Page 10: Installation
. Installation Optical installation Remove the frontal cap by loosening the upper and lower screws enough to free the cap itself, set the optic’s flange tilted about 60°. Insert the optic’s flange into the body’s receptacle and turn the optic 60° until it is firmly assembled to the projector body, free to rotate but not free to detach itself from the body. -
Page 11: Mechanical Installation
Mechanical installation LEDko FullSpectrum Series 2 may be hung from an appropriate structure in any position or on tripode. If hanging the fixture from a lighting truss or similar, we recommend the use of an appropriate clamp “A”, as shown in the following diagram. -
Page 12: Powering Up
2 KV, operating temperature -40°C + 180°C, Coemar cod. CV5311). Connection to mains power LEDko FullSpectrum Series 2 is equipped with two power connectors, one as input and one as output, which can be used to feed up to 8 (at 230 VAC) or 4 (90 VAC) fixtures The max absorption of LEDko FullSpectrum Series 2 is reported in the following table: - 230 VaC 0.85 A constant during normal exercise. - Page 13 The use of a thermal/magnetic circuit breaker is recommended. Strict adherence to • regulatory norms is strongly recommended. LEDko FullSpectrum Series 2 should not be powered through a dimmer as this may • damage the internal switching power supply. Prior to connecting the device to mains power, ensure that the mains characteristics •...
-
Page 14: Control Signal Connections
. Control signal connections Control signal connection by XLR5 plugs The digital control signal is transmitted to the projector via a two pole cable screened in accord- ing to the International standards for DMX 512 data transmission. The connection must be serial, using connectors XLR5 male and female located on the back of LEDko FullSpectrum Series 2 labelled DMX512 IN e OUT. -
Page 15: Turning On The Projector
. Turning on the projector After having followed the preceding steps described, proceed with the power supply and turn on the projector connecting it to the mains power. The software version installed on the internal microprocessors will be shown on the display, sud- denly it will show the current DMX addressing. -
Page 16: Dmx Chart
. DMX chart DMX Chart 14,8,4,1 channels type of channel function effect decimal percentage control master proportional adjust luminous output intensity from 0 to 100% 0 - 255 0% - 100% dimmer proportional control of the color percentage proportional 0 - 255 0% - 100% from 0 to 100% proportional control of the color percentage green... - Page 17 no effect 0 - 9 0% - 4% RED preset 1 10 - 71 4% - 28% red tone step RED preset 2 72 - 133 28% - 52% RED preset 3 134 - 195 53% - 76% RED preset 4 196 - 255 77% - 100% no effect 0 - 9...
-
Page 18: Dmx Chart 7 Channels
DMX Chart 7 channels type of channel function effect decimal percentage control master dimmer proportional adjust luminous output intensity from 0 to 100% 0 - 255 0% - 100% step WHITE 3200 K 0 - 15 0% - 6% proportional proportional value from 3200 K to 4000 K 16 - 30 6% - 12%... - Page 19 park, no effect 0 - 71 0% - 28% 600 Hz 72 - 84 28% - 33% step fan at low-noise speed 85 - 96 33% - 38% fan at auto-silent speed 97 - 108 38% - 42% proportional fan speed control from minimum to maximum 109 - 120 43% - 47% no effect 121 - 133 47% - 52%...
-
Page 20: Display Panel Functions
Rapid count Through the display panel of LEDko FullSpectrum Series 2 it is possible to quickly change the various numbers displayed for the different functions in the following 3 manners: 1. Pressing the + or – buttons will cause the count to be quicker. -
Page 21: Main Functions Menu
Main functions menu CCT: It allows to vary the channel of white on 3200 several color temperatures from 3200 K to 10000 K, without DMX signal; Dimmer: 10000 It allows to choose the type of dimmer curves between exponential, logarithmic and linear (exponential as default) Test: diMM... - Page 22 Fan Speed: • Auto: balance the fan speed to meet the maxim silence without compro- mising the light performance; auto • Low noise: sets the minimum fan [Fan Speed] speed to ensure a silent performance at the expense of light output in case of overheat.
- Page 23 Default Settings: Allows to restore the factory default of dF.SE. the fixture, with exception of DMX ad- dress and LED alignment. SURE [Default Settings] Measures: Allows to read all the parameters: LED and board temperatures, fan level, DMX ratio, DMX, alarms, channels value and MEAS.
-
Page 24: Measure (Meas)
Measure (MEAS) Temperature: tEMP t.LEd Shows the current temperature values: • LED: shows the LED module temper- [LED Temperature] [Temperature] ature; • Board: shows the electronic board temperature. t.brd [Board Temperature] Volt: Shows the power supply voltage. vOLt 48 v DMX Input: Shows the value of the DMX channels [Supply Voltage]... - Page 25 LED: Shows the percentage value of the LED status. Fre: Shows the operating frequency of the [LED Status] LED (611 Hz as default). Fan speed: Shows the percentage fan usage. Usage hours: Shows the hour counter of the fixture: • Unit: shows the overall hours of life of the fixture;...
-
Page 26: Electronic Alignment Of The Leds
The display panel of LEDko FullSpectrum Series 2 allows the electronic alignment of the LEDs, this procedure is performed by Coemar at the time of testing, this procedure may be use- ful for special effects or in case of replacement of internal components (PCBs, LEDs, etc...). -
Page 27: Special Functions Of The Fixture
Error messages If a malfunction occurs, LEDko FullSpectrum Series 2 has a self-diagnostic system that will show the error message on the display. The following table will explain in detail the most com- mon errors. If, despite of suggested intervention, the problem persists, call the Coemar Service Center. -
Page 28: Accessories And Spare Parts
. Accessories and spare parts LEDko FullSpectrum Series 2 is a very versatile fixture, optional accessories for its customization are available under request: Accessory name Code Front barrel for lens tube with burnished blades BC10011A200 Profile 5°, lens tube BC10011A041 Profile 10°, lens tube... - Page 29 BC10011A044 max. load 20 Kg. All the components of LEDko FullSpectrum Series 2 are available as spare parts from your Co- emar dealer or Service. Accurate description of the fixture, model number and type will assist us in providing for your requirements in an efficient and effective manner.
-
Page 30: Maintenance
Check all electrical connections, in particular for correct grounding and correct attachment of all extractable connectors. Press the connectors if necessary and reposition as before. 11.4 Fuses LEDko FullSpectrum Series 2 has an automatic fuse that in most cases does not need to be replaced. -
Page 31: F.a.q. And Answers
. F.A.Q. and answers The following list shows common issues that may be simply solved. If issues persist, the unit must be repaired by a qualified personnel or just contact your Coemar service near you. Question Possible solution Projector not powered on: • Make sure the power cord is plugged in or test the input... - Page 32 User notes .......................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
- Page 33 Information on disposal of the equipment The equipment at the end of its useful life must be disposed of at an appropriate recycling center for waste electrical and electronic equipment. The treatment and disposal of environmentally friendly, helps prevent potential negative environmental and health and promote the reuse and / or recycling of materials making up the equipment.
- Page 34 Coemar Lighting s.r.l. Via Carpenedolo 90 46043 Castiglione delle Stiviere, Mantova, Italy phone. +39 0376/1514412 - fax +39 0376/1514380 info@coemar.com Coemar reserves the right to effect modifications without notification...
