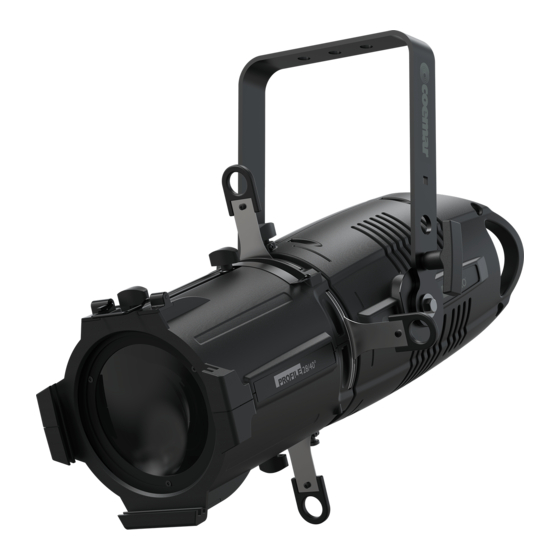

Summary of Contents for Coemar LEDko FullSpectrum 6 HD Studio +
- Page 1 FullSpectrum 6 HD Studio + USER MANUAL vrs. 1.1 - 19.04.2023...
- Page 2 Coemar ®. If you are downloading files from our web pages for your personal use, make sure to check for updated versions. Coemar ® cannot take any liability whatsoever for downloaded files, as technical data are subject to change without notice.
-
Page 3: Table Of Contents
Index 1. Packaging and transportation .......................Pag. 5 1.1 Packaging ............................Pag. 5 1.2 Transportation ..........................Pag. 5 2. General information.........................Pag. 5 2.1 Safety informations........................Pag. 5 2.2 Warranty conditions........................Pag. 6 2.3 EC Norms ...........................Pag. 6 3. Product specifications ........................Pag. 7 3.1 Technical characteristics......................Pag. 7 3.2 Dimensions..........................Pag. - Page 4 10.4 Main functions menu......................Pag. 29 10.5 Settings ..........................Pag. 32 10.6 Display ............................ Pag. 34 10.7 Effects ............................ Pag. 35 10.8 Measures ..........................Pag. 37 11. Wi-Fi Menu (OPTIONAL) ......................Pag. 39 12. Special Function and Error Messages ..................Pag. 40 12.1 Special functions of the fixture ..................
-
Page 5: Packaging And Transportation
Congratulations on having purchased a Coemar product. You have assured yourself of a fixture of the highest quality, both in componentry and in the technology used. We renew our invitation to you to complete the service information on the previous page, to expedite any request for service information or spares (in case of problems encountered either during, or subsequent to, instal- lation). -
Page 6: Warranty Conditions
3. The level of technology of LEDko FullSpectrum 6 HD Studio + requires the use of specialised personnel for all service applications; refer all work to your authorised Coemar service centre. 4. A good earth connection is essential for the proper functioning of the projector. -
Page 7: Product Specifications
Castiglione delle Stiviere (MN) - Italy - Via Carpenedolo, 90 Date: 15.11.2019 Tel. 0376/1514412 - Fax. 0376/1514380 - www.coemar.com This drawing cannot be copied, reproduced, shown to third parties without our permission Questo disegno non può essere copiato, riprodotto, mostrato a terzi senza nostra autorizzazione... -
Page 8: Weights And Dimensions Of The Projector With Various Optics
Weights and dimensions of the projector with various optics Optics Length Weight Lens Tube Profile 10° 900 mm (35.4 in) 9 Kg (19.8 lbs) Optics Length Weight Lens Tube Profile 14° 750 mm (35.4 in) 9 Kg (19.8 lbs) Lens Tube Profile 70° 750 mm (35.4 in) 8.68 Kg (19.14 lbs) Optics... -
Page 9: Unit's Main Components
Unit’s main components Components description Adjustable yoke Iris (optional) Gobo holder (included) Lens adjusting handles Yoke locking handle Gel frame locking spring G Profile blade H Interchangeable optic... -
Page 10: Back Panel Description
Back panel description Intensity / Display Selector Knob Menu button Plus button Minus button Enter button PowerCon DMX Out TRUE1 Top In PowerCon DMX In TRUE1 Top Out... -
Page 11: Installation
. Installation Optical installation Remove the frontal cap by loosening the upper and lower screws enough to free the cap itself, set the optic’s flange tilted about 60°. Insert the optic’s flange into the body’s receptacle and turn the optic 60° until it is firmly assembled to the projector body, free to rotate but not free to detach itself from the body. -
Page 12: Mechanical Installation
Mechanical installation LEDko FullSpectrum 6 HD Studio + may be hung from an appropriate structure in any position or on tripod. If hanging the fixture from a lighting truss or similar, we recommend the use of an appropriate clamp “A”, as shown in the following diagram. Warning!! Always ensure that your support structure and fixing (bolts, clamps, etc…) are rated... -
Page 13: Powering Up
Note: in case of cable replacement, similar cable with comparable thermal resistant qualities must be used exclusively (cable 3 X 1,5 ø external 10 mm, rated 300/500V, tested to 2 KV, operating temperature -40°C + 180°C, Coemar cod. CV5311). Connection to mains power LEDko FullSpectrum 6 HD Studio + is equipped with two power connectors, one as input and one as output, which can be used to feed up to 8 (at 230 V) or 4 (at 115 V) fixtures. -
Page 14: Control Signal Connections
. Control signal connections Control signal connection by XLR5 plugs The digital control signal is transmitted to the projector via a two pole cable screened in ac- cording to the International standards for DMX 512 data transmission. The connection must be serial, using connectors XLR5 male and female located on the back of LEDko FullSpectrum 6 HD Studio + labelled DMX512 IN e OUT. -
Page 15: Turning On The Projector
. Turning on the projector After having followed the preceding steps described, proceed with the power supply and turn on the projector connecting it to the mains power. The software version installed on the internal microprocessors will be shown on the display, suddenly it will show the current DMX addressing. -
Page 16: Dmx Chart
. DMX chart DMX modes Studio fine RGB Sunrise channels ↓ channels channels channel mode mode mode mode Master Master Master Master Master Master Master Dimmer Dimmer Dimmer Dimmer Dimmer Dimmer Dimmer White Dimmer Dimmer Dimmer Tone Fine Fine Fine Green Proportional Green... -
Page 17: Dmx Chart 16, 7, 1 Channels
DMX Chart 16, 7, 1 channels channel type of function effect decimal percentage 16 7 1 control master adjust luminous output intensity from 0 1 1 1 proportional 0 - 255 0% - 100% dimmer to 100% proportional control of the color 2 2 - proportional 0 - 255 0% - 100%... - Page 18 no effect COR01 - GELS RED 1 10 - 34 COR02 - GELS RED 2 35 - 59 14% - 23% COR03 - GELS RED 3 60 - 84 24% - 33% COR04 - GELS RED 4 85 - 109 33% - 43% red tone step...
- Page 19 step no effect exalts the green color in the mixing and proportional - 127 - 50% diminishes the presence of magenta green saturation step no effect diminishes the presence of green in the mixing proportional 129 - 254 - 99% and exalts the magenta color step no effect...
-
Page 20: Dmx Chart Studio Mode
DMX Chart Studio mode channel function type of control effect decimal percentage master dimmer proportional adjust luminous output intensity from 0 to 100% - 255 - 100% step 2.700 K proportional proportional value from 2.700 K to 3.200 K 16 - 30 step 3.200 K 31 - 45... -
Page 21: Dmx Chart Rgb Mode
DMX Chart RGB mode channel function type of control effect decimal percentage master dimmer proportional adjust luminous output intensity from 0 to 100% - 255 - 100% dimmer fine proportional fine dimmer control 16 bit - 255 - 100% proportional control of the color proportional - 255 - 100%... - Page 22 park no effect 10 - 84 - 33% fan at SILENT mode step 85 - 96 33% - 38% fan at STUDIO mode 97 - 108 38% - 42% fan at AUTO mode special functions 109 - 120 43% - 47% proportional fan speed control 121 - 133...
-
Page 23: Dmx Chart Fine Rgb Mode
DMX Chart fine RGB mode type of channel function effect decimal percentage control master dimmer proportional adjust luminous output intensity from 0 to 100% - 255 - 100% dimmer fine step fine dimmer control 16 bit - 255 - 100% proportional control of the color proportional - 255... - Page 24 park no effect 10 - 84 - 33% fan at SILENT mode step 85 - 96 33% - 38% fan at STUDIO mode 97 - 108 38% - 42% fan at AUTO mode special functions 109 - 120 43% - 47% proportional fan speed control 121 - 133...
-
Page 25: Dmx Chart Sunrise Mode
DMX Chart SUNRISE mode channel function type of control effect decimal percentage master dimmer proportional adjust luminous output intensity from 0 to 100% - 255 - 100% dimmer fine proportional fine dimmer control 16 bit - 255 - 100% 2.700 K proportional value from 2.700 K to 4000 K - 44 4.000 K... -
Page 26: Setup Via Rdm (Dmx Version)
Setup via RDM Quick guide to menu The LEDko FullSpectrum 6 HD Studio + required RDM (Remote Device Management) to set up fixtures. Using an RDM compliant DMX controller, you can communicate with all the fixtures on a data link without needing to connect to each fixture individually. RDM lets you set the DMX addresses of all the fixtures on the link, carry out fixture configuration and retrieve fixture data including details of any error that has been logged. -
Page 27: Rdm Error Chart
RDM Error Chart ERROR DESCRIPTION SOLUTION MEMORY Memory Reading Error Perform A “Factory Reset” HW MEMORY Memory Hardware Error Contact Coemar DMX ADDR DMX Addressing Error The Personality Dimension Exceeds 512 Channels NTC ERROR Temperature Sensor Check Wiring NTC Led Disconnected... -
Page 28: Display Panel Functions
Changing the preset settings made by Coemar can vary the functions of the projector so that it will respond differently to the controller; therefore carefully read about the functions described here before carrying out any possible selection. -
Page 29: Main Functions Menu
10.4 Main functions menu By pressing the “MENU” button you can enter the LEDko FullSpectrum 6 HD Studio + ’s main menu. N.B. Instead of use the “+”, “-” or “ENTER” buttons it is possible to use the DIMMER knob by rotating it. - Page 30 GREEN-MAGENTA DEV: green-magenta dev Allows to adjust the luminous output intensity from 0 to 255 (d: decimal units). COLOR GELS: colors gels All the gels presets will appear under this menu. CUSTOM GELS: custom gels reset all gels This settings allows you to create your own custom gel by mixing the six color at your will.
- Page 31 SETTINGS: settings settings Manually sets various settings of the projector (section SETTINGS). MEASURES: measures Check all the measures and product status (section MEASURES). FACTORY RESET: factory reset sure? Allows to return to the factory settings: Light Intensity: 80 DMX Channels: 16 Fan: Auto mode.
-
Page 32: Settings
10.5 Settings DIMMING CURVE: dimming curve exponential It allows the selection of different dimmer curves: exponential exponential (default), halogen halogen, standard, linear and logarithmic. standard linear logarithmic DIM TO WARM: dim to warm Inserts a softening of the dimmer dynamics and red shift. - Page 33 PERSONALITIES: PERSONALITIES 16 CH It is possible to choose between 16, STUDIO, 16 CH RGB, RGB FINE, studio SUNRISE, 1 or 7 modalities, in which the projector will operate. rgb fine SUNRISE 1 CH 7 CH LOSS SIGNAL: loss signal MAINTAIN It is possible to choose between “maintain”...
-
Page 34: Display
10.6 Display REVERSE: reverse It allows to turn by 180° the reading of the display. When you chose “ON” wait the turn of the display without clicking. AUTO LOCK: AUTO LOCK Locks the keys. OFF: Auto Lock function in OFF HOLD HOLD: Press any key for 3 seconds to unlock. -
Page 35: Effects
10.7 Effects EFFECTS: effects no effect It is possible to choose between the following no effect effects: color wheel COLOR WHEEL: replicates the color wheel by applying a fade effect between colors (Red, Yellow, Green, Cyan, rgb random Blue, Magenta); RGB: replicates the color RGB colors in rotation... - Page 36 PARAMETER EFFECT: PARAMETER effect SPEED It allows to change the parameter of the effect SPEED selected. POWER SPEED: increases the speed of all effects; POWER: increases the intensity of all effects; N.B. When you select a parameter effect it works for all effects and not individually.
-
Page 37: Measures
10.8 Measures TEMPERATURES: TEMPERATURES Shows the current ° F MIN NOW MAX temperature values of the fixture. LED: -°C -°C -°C LED: shows the LED module temperature. BOARD: -°C -°C -°C BOARD: shows the electronic board temperature. TEMPERATURES TEMP histories HISTORIES: °... - Page 38 LED STATUS: r: -% L: -% led status Shows the percentage g: -% a: -% value of the LED status. b: -% c: -% LED PROTECTION: led protection Percentage of the maximum power in order to keep the projector in temperature.
-
Page 39: Wi-Fi Menu (Optional)
. Wi-Fi Menu (OPTIONAL) 11.1 Wi-Fi WIFI ENABLE: WIFI ENABLE It allows enable all the Wi-Fi functions WIFI UNLINK: WIFI unlink sure? This function is used to disconnect the projector from the transmitter. -
Page 40: Special Function And Error Messages
If a malfunction occurs, LEDko FullSpectrum 6 HD Studio + has a self-diagnostic system that will show the error message on the display. The following table will explain in detail the most common errors. If, despite of suggested intervention, the problem persists, call the Coemar Service Center. -
Page 41: Accessories And Spare Parts
. Accessories and Spare parts is a very versatile fixture, optional accessories for its customization are available under request: Accessory name Code Front barrel for lens tube with burnished blades BC10011A200 Profile 5°, lens tube BC10011A041 Profile 10°, lens tube BC10011A042 Profile 14°, lens tube BC10011A023... - Page 42 All the components of LEDko FullSpectrum 6 HD Studio + are available as spare parts from your Coemar dealer or Service. Accurate description of the fixture, model number and type will assist us in providing for your requirements in an efficient and effective manner.
-
Page 43: Maintenance
. Maintenance 14.1 Firmware update The firmware of LEDko FullSpectrum 6 HD Studio + can be updates through the RDM protocol (ANSI E1.20). Contact Coemar assistance to receive the software and the device updater. 14.2 Periodic cleaning Lenses Even a thin layer of dust can reduce the luminous output and alter the consistency of the beam. -
Page 44: And Answers
• Check DMX address of the unit; Help from Coemar Technical Services If you are having difficulties and your problem is not addressed by this document, contact Coemar Technical Services directly at one of this email address: info@coemar.com / service@coemar.com... - Page 45 User notes .............................................................................................................................................................................................................................................................................................................................................................................................................................
- Page 46 Information on disposal of the equipment The equipment at the end of its useful life must be disposed of at an appropriate recycling center for waste electrical and electronic equipment. The treatment and disposal of environmentally friendly, helps prevent potential negative environmental and health and promote the reuse and / or recycling of materials making up the equipment.
- Page 47 Coemar Lighting s.r.l. Via Carpenedolo 90 46043 Castiglione delle Stiviere, Mantova, Italy phone. +39 0376/1514412 - fax +39 0376/1514380 info@coemar.com Coemar reserves the right to change specifications without prior notice...
