Summary of Contents for Coemar ReLite Led HD

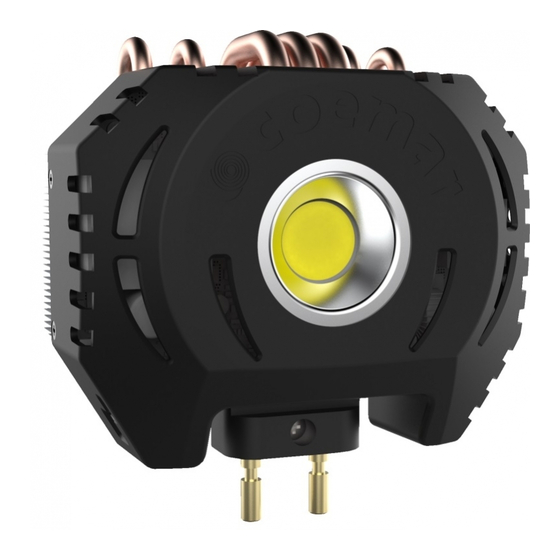

- Page 1 ReLite Led HD...
- Page 2 Please note in the space provided above the relative service information of the model and the retailer from whom you purchased your ReLite Led HD: this information will assist us in providing spare parts, repairs or in answering any technical enquiries with the utmost speed and accuracy.
-
Page 3: Table Of Contents
Italiano Index 1. Packaging and transportation ..........................Pag. 4 1.1 Packaging ................................Pag. 4 1.2 Transportation ..............................Pag. 4 2. General information .............................. Pag. 4 2.1 Safety informations ............................Pag. 4 2.2 Warranty conditions ............................Pag. 5 2.3 EC norms ................................. Pag. 5 3. -
Page 4: Packaging And Transportation
Italiano Congratulations on having purchased a Coemar product. You have assured yourself of a fixture of the highest quality, both in componentry and in the technology used. We renew our invitation to you to complete the service information on the previous page, to expedite any request for service information or spares (in case of problems encountered either during, or subsequent to, installation). -
Page 5: Warranty Conditions
Italiano 3. The level of technology of ReLite Led HD requires the use of specialized personnel for all service applications; refer all work to your authorised Coemar service centre. 4. A good earth connection is essential for the proper functioning of the projector. Never connect the fixture if there is no earth connection. -
Page 6: Product Specifications
Italiano . Product specifications Technical characteristics Power supply 100-240 V, auto-sensing, 50/60 Hz Maximum current 0.8 A at 230 V, 1.7 A at 110 V Power factor Cosφ > 0.9 Max power consumption 160 W Color temperature Tungsten: 3200 K - Daylight: 5600 K Color Rendering Index (CRI) avg. -
Page 7: Unit's Main Components
Italiano Unit’s main components Components description Heatsink Dip-switches D Pin Base Cover... -
Page 8: Installation
Italiano Installation Mechanical installation With ReLite Led HD will be possible to give new life to your projector, simply replacing the old lamp with the ReLite Led HD. Note: the fixture’s reflector needs to be removed before the installation. -
Page 9: How To Install G38 Adaptor
Italiano How to install the G38 adaptor Make sure the ReLite Led HD is not powered; unscrew the screws on both sides (pic. 01), insert it directly into the G22 socket (pic. 02). Tighten the side screws (pic. 03) -
Page 10: Powering Up
All connections should be carried out by a suitably qualified personnel. . Turning the ReLite HD on After having followed the previous steps, turn on the projector, in which the ReLite Led HD is installed, connecting it to the mains power. -
Page 11: Spare Parts
Italiano Spare parts All ReLite Led HD’s spare parts are available from your Coemar service centers. Specifying in detail the projector model and the replacement part requested, will help the service center to serve you in the best way. Code Accessory name O378.002... -
Page 12: Maintenance
• Make sure the power cord is plugged in or test the input voltage in the does not emit light projector in which ReLite Led HD is installed; • Make sure the ReLite Led HD is well inserted into the socket. -
Page 13: Usage Warnings
7. Once ReLite Led HD enters in thermal protection, the last highest temperature detected is recorded in order to stabilize the ReLite Led HD. Thanks to this function the ReLite Led HD is turned off and on or if you lower... - Page 14 Italiano User notes ..................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
- Page 15 Italiano Information on disposal of the equipment The equipment at the end of its useful life must be disposed of at an appropriate recycling center for waste electrical and electronic equipment. The treatment and disposal of environmentally friendly, helps prevent potential negative environmental and health and promote the reuse and / or recycling of materials making up the equipment.
- Page 16 Coemar Lighting s.r.l. Via Carpenedolo 90 46043 Castiglione delle Stiviere, Mantova, Italia tel. +39 0376/1514412 - fax +39 0376/1514380 info@coemar.com Coemar reserves the right to change specifications without prior notice...
