Summary of Contents for Coemar ReLile LED

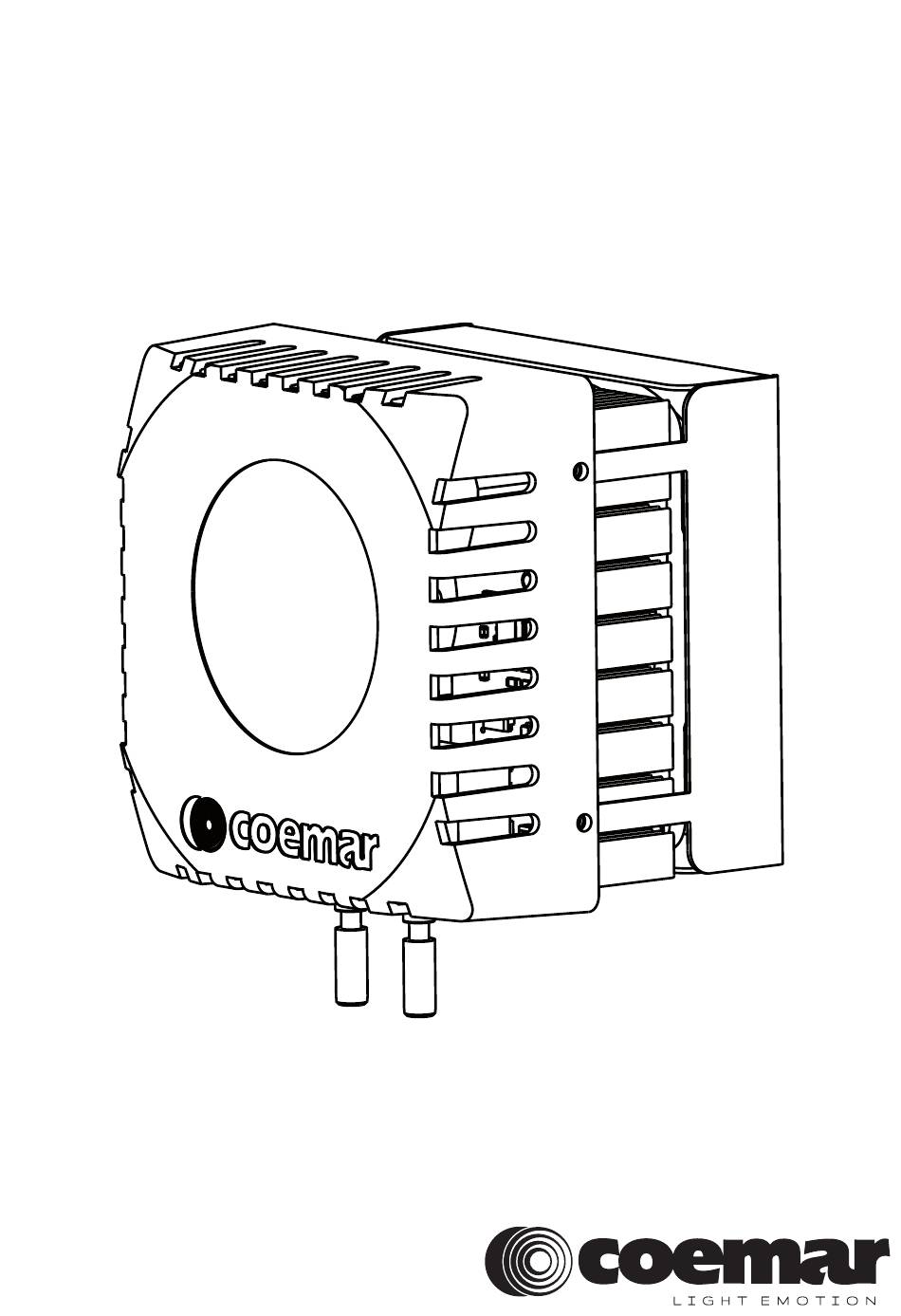

- Page 1 ReLite Led...
- Page 2 ReLite Led Italiano Serial Number: ..................................Purchase date: ..................................Dealer: ..................................Address: ..................................Suburb: ..................................Country: ..................................Phone / Fax: ..................................Please note in the space provided above the relative service information of the model and the retailer from whom you purchased your ReLite Led: this information will assist us in providing spare parts, repairs or in answering any technical enquiries with the utmost speed and accuracy.
-
Page 3: Table Of Contents
Italiano Index 1. Packaging and transportation .....................Pag. 4 1.1 Packaging ............................Pag. 4 1.2 Transportation ..........................Pag. 4 2. General information ........................Pag. 4 2.1 Safety informations ........................Pag. 4 2.2 Warranty conditions ........................ Pag. 5 2.3 EC norms ............................. Pag. 5 3. -
Page 4: Packaging And Transportation
Italiano Congratulations on having purchased a Coemar product. You have assured yourself of a fixture of the highest quality, both in componentry and in the technology used. We renew our invitation to you to complete the service information on the previous page, to expedite any request for service information or spares (in case of problems encountered either during, or subsequent to, installation). -
Page 5: Warranty Conditions
3. The level of technology of ReLite Led requires the use of specialised personnel for all service applications; refer all work to your authorised Coemar service centre. 4. A good earth connection is essential for the proper functioning of the projector. -
Page 6: Product Specifications
Italiano . Product specifications Technical characteristics Power supply 110-230Vac, 50-60Hz Maximum current 0.5 A (CRI 97) - 0.7 A (CRI 90) @ 230 Vac Power factor Cosϕ = 0.98 Power consumption 160 W (CRI 97 version) - 115 W (CRI 90 version) Color temperature Fixed white CCT at 3200 K or 5600 K Weight... -
Page 7: Unit's Main Components
Italiano Unit’s main components Components description A Led B Heatsink C Pin Base... -
Page 8: Installation
Italiano Installation Mechanical installation With ReLite Led will be possible to give new life to your projector, simply replacing the old lamp with the ReLite Led. -
Page 9: Powering Up
ReLite Led, connecting it to the mains power. Spare parts All ReLite Led’s spare parts are available from your Coemar service centers. Specifying in detail the projector model and the replacement part requested, will help the service center... -
Page 10: Maintenance
If necessary, replace the worn parts. . F.A.Q. and answers The following list shows common issues that may be simply solved. If issues persist, the unit must be repaired by qualified personnel or just contact your Coemar service near you. Question Possible solution... -
Page 11: Usage Warnings
Italiano Usage warnings 1. It is recommended to activate the preheat function throw the power unit, in this way when the Led is off the fan will be on. 2. The strobe function is not allowed. • When the preheat is active the ReLite’s shutdown and its ignition can not be less than one second, in case the preheat is not active, the shutdown and its ignition can not be less than four seconds. - Page 12 Italiano User notes ..............................................................................................................................................................................................................................................................................................................................................................................................................................................................................
- Page 13 Italiano User notes ..............................................................................................................................................................................................................................................................................................................................................................................................................................................................................
- Page 14 Italiano Information on disposal of the equipment The equipment at the end of its useful life must be disposed of at an appropriate recycling center for waste electrical and electronic equipment. The treatment and disposal of environmentally friendly, helps prevent potential negative environmental and health and promote the reuse and / or recycling of materials making up the equipment.
- Page 15 Coemar Lighting s.r.l. Via Carpenedolo 90 46043 Castiglione delle Stiviere, Mantova, Italia tel. +39 0376/1514412 - fax +39 0376/1514380 info@coemar.com Coemar reserves the right to effect modifications without notification...
