Summary of Contents for Coemar Risalto Led S

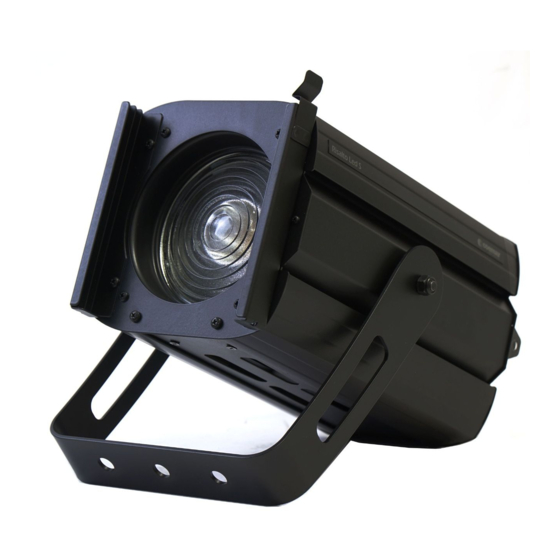

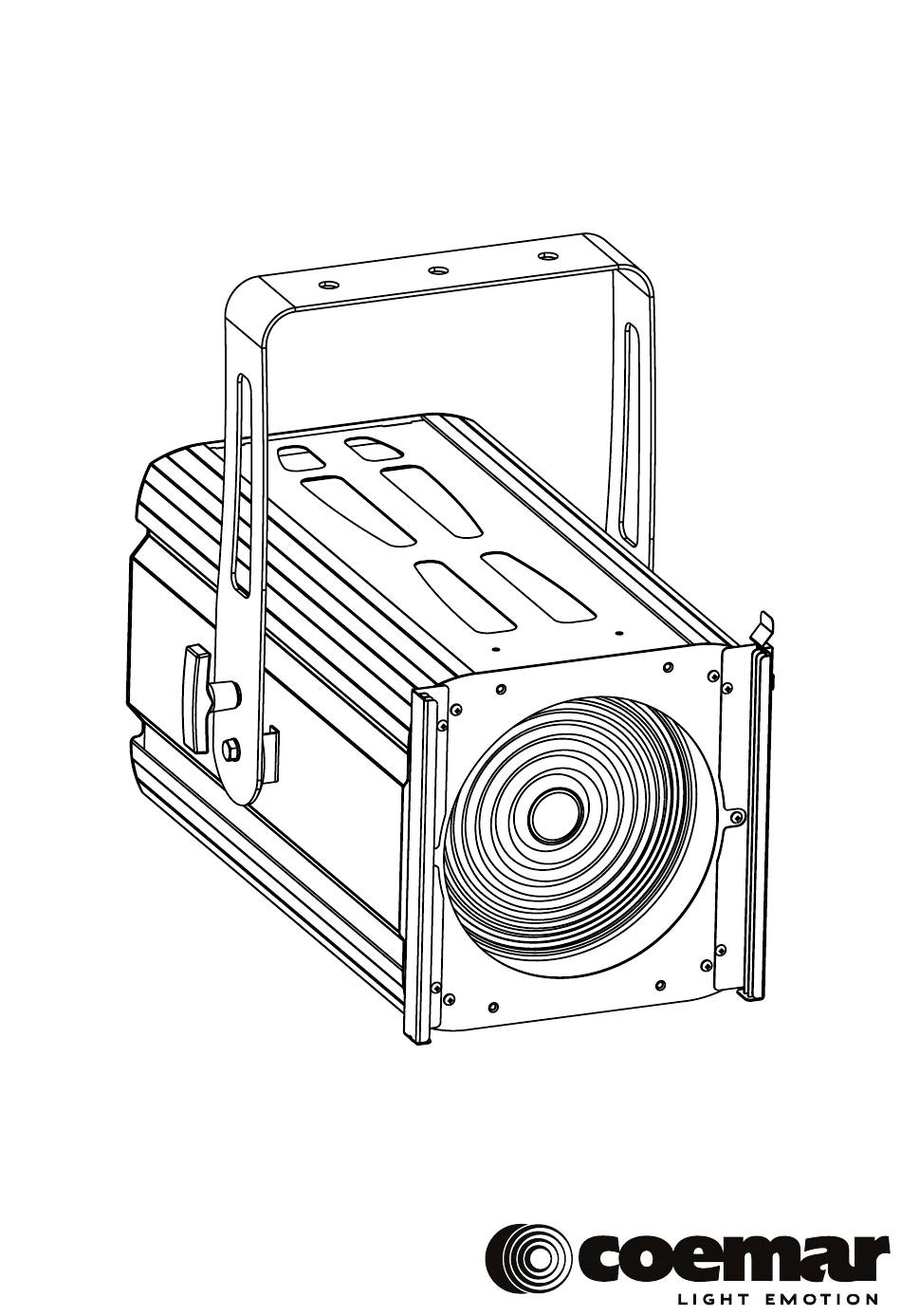

  • Page 1 Risalto Led S...
  • Page 2 Please note in the space provided above the relative service information of the model and the retailer from whom you purchased your Risalto Led S: this information will assist us in providing spare parts, repairs or in answering any technical enquiries with the utmost speed and accuracy.

  • Page 3: Table Of Contents

    Index 1. Packaging and transportation .........................Pag. 4 1.1 Packaging .............................Pag. 4 1.2 Transportation .............................Pag. 4 2. General information ..........................Pag. 4 2.1 Safety informations ........................... Pag. 4 2.2 Warranty conditions ......................... Pag. 5 2.3 EC norms ............................Pag. 5 3. Product specifications ..........................Pag. 6 3.1 Technical characteristics ........................Pag.

  • Page 4: Packaging And Transportation

    1 Filter frame 1 Instruction manual 1 Main power plugs Transportation The Risalto Led S should be transported in either its original packaging or in an appropriate flight case. . General information Safety informations Fire prevention: 1. Never locate the fixture on any flammable surface.

  • Page 5: Warranty Conditions

    3. The level of technology of Risalto Led S requires the use of specialised personnel for all service applications; refer all work to your authorised Coemar service centre. 4. A good earth connection is essential for the proper functioning of the projector.

  • Page 6: Product Specifications

    Product specifications Technical characteristics Power supply 90-264 V, auto-sensing, 50-60 Hz Maximum current 0.46 A at 230 V, 0.92 A at 115 V Power factor Cosφ = 0.95 Max power consumption 100 W Color temperature Tungsten: 3.200 K - Daylight: 5.600 K Color Rendering Index (CRI) Weight (without optic) 5.5 Kg - 12.13 lbs...

  • Page 7: Unit's Main Components

    Unit’s main components Components description A Adjustable yoke B Yoke locking handle C Color frame locking spring D Color frame holder E Lens (Fresnel)

  • Page 8: Back Panel Description

    Back panel description Display Menu button Plus button Enter button Minus button DMX In DMX Out PowerCon In PowerCon Out Zoom Knob...

  • Page 9: Installation

    Ensure that the chosen fixing material can bear the weight of the projector. We recommend the use of a safety chain locked to Risalto Led S and to the suspension device in order to avoid casual falls of the fixture.

  • Page 10: Positioning And Light Beam Adjusting

    Accessories fixing Risalto Led S has on its front a receptacle for the mounting of a filter frame, a color changer or a barndoor. When you mount one of these accessories, ensure that they are firmly fixed and kept in place by the locking spring.

  • Page 11: Powering Up

    -40°C + 180°C, Coemar cod. CV5311). Connection to mains power Risalto Led S equipped with two power connectors, one as input and one as output, which can be used to feed up to 8 (at 230 V) or 4 (115 V) fixtures.
  • Page 12 The use of a thermal/magnetic circuit breaker is recommended. Strict adherence to regulatory • norms is strongly recommended. Risalto Led S should not be powered through a dimmer as this may damage the internal switching • power supply. Prior to connecting the device to mains power, ensure that the mains characteristics are within •...

  • Page 13: Control Signal Connections

    The digital control signal is transmitted to the projector via a two pole cable screened in according to the International standards for DMX 512 data transmission. The connection must be serial, using connectors XLR5 male and female located on the back of Risalto Led S labelled DMX512 IN e OUT. DMX In...

  • Page 14: Turning The Projector On

    When powered up initially, each projector will show “A001”, which indicates that the fixture will start responding from the first DMX channel; Risalto Led S also uses 5 DMX channels, which means that it will respond to the commands from channel 1 to channel 5 of your DMX 512 controller. Accordingly a second unit should be addressed as A006, a third one as A011 and so on.

  • Page 15: Dmx Chart

    LED control frequency tuning 16.000 Hz 242 - 247 95% - 97% LED control frequency tuning 19.000 Hz 248 - 255 97% - 100% Projector: Risalto Led S T / D Chart name: DMX512 function Software version: 1.42 or following Edition: 2 Date: 06.12.2019...

  • Page 16: Display Panel Functions

    ENTER button to access to any other function. By suitably using all the functions of Risalto Led S, which can be activated through its display panel, it is possible to change some of the parameters and to add some functions. Changing the preset settings made by Coemar can vary the functions of the projector so that it will respond differently to the controller;...

  • Page 17: Quick Dimmer Menu

    Quick dimmer menu By pressing the enter button, the user will enter the quick dimmer menu: thanks to this menu it will be possible to increase and decrease the light intensity in steps of 10 (in a range from 0 to 100).

  • Page 18: Main Functions Menu

    Main functions menu Tungsten: tUnG Mimics the slow dimming curve of tungsten lamps. [Tungsten] Dimmer: It allows the selection of different dimmer curves: exponential (default), logarithmic and linear; dIMM Test: Allows to manually set the DMX channels [Exponential] controlled by a DMX console: [Dimmer] •...
  • Page 19 DMX channels: Shows the DMX mode and number of chan- 5 CH Channels] nels selectable; [DMX channels] Display functions: Changes the display settings: 1 CH • Reverse: rotates the display of 180°; Channel] • Auto: Sets or disables the automatic display turn off function, which would occur after 10 seconds of inactivity;...

  • Page 20: Measure (Meas)

    Measures menu (MEAS) Temperature: tEMP Shows the current temperature values: t.LEd • LED: shows the LED module tempera- [LED Temperature] ture; [Temperature] • Board: shows the electronic board tem- perature. Volt: [Board Temperature] Shows the power supply voltage. vOLt DMX Input: Shows the value of the DMX channels re- [Supply Voltage] ceived by the fixture on every channel that...
  • Page 21 LED: Shows the percentage value of the LED sta- tus. Fre: Shows the operating frequency of the LED [LED Status] (611 Hz as default). Fan speed: Shows the voltage in which the fan is oper- ating Usage hours: Shows the hour counter of the fixture: •...

  • Page 22: Electronic Alignment Of The Leds

    The display panel of Risalto Led S allows the electronic alignment of the LEDs, this procedure is performed by Coemar at the time of testing, this procedure may be useful for special effects or in case of replacement of internal components (PCBs, LEDs, etc...).

  • Page 23: Special Functions Of The Fixture

    Error messages If a malfunction occurs, Risalto Led S has a self-diagnostic system that will show the error message on the display. The following table will explain in detail the most common errors. If, despite of suggested intervention, the problem persists, call the Coemar Service Center.

  • Page 24: Maintenance

    Check all electrical connections, in particular for correct grounding and correct attachment of all extractable connectors. Press the connectors if necessary and reposition as before. 10.4 Fuses Risalto Led S has an automatic fuse that in most cases does not need to be replaced.

  • Page 25: And Answers

    . F.A.Q. and answers The following list shows common issues that may be simply solved. If issues persist, the unit must be repaired by a qualified personnel or just contact your Coemar service near you. Question Possible solution Projector not powered on: •...
  • Page 26 User notes ..............................................................................................................................................................................................................................................................................................................................................................................................................................................................................
  • Page 27 User notes ..............................................................................................................................................................................................................................................................................................................................................................................................................................................................................
  • Page 28 Information on disposal of the equipment The equipment at the end of its useful life must be disposed of at an appropriate recycling center for waste electrical and electronic equipment. The treatment and disposal of environmentally friendly, helps prevent potential negative environmental and health and promote the reuse and / or recycling of materials making up the equipment.
  • Page 29 Coemar Lighting s.r.l. Via Carpenedolo 90 46043 Castiglione delle Stiviere, Mantova, Italy phone. +39 0376/1514412 - fax +39 0376/1514380 info@coemar.com Coemar reserves the right to change specifications without prior notice.
