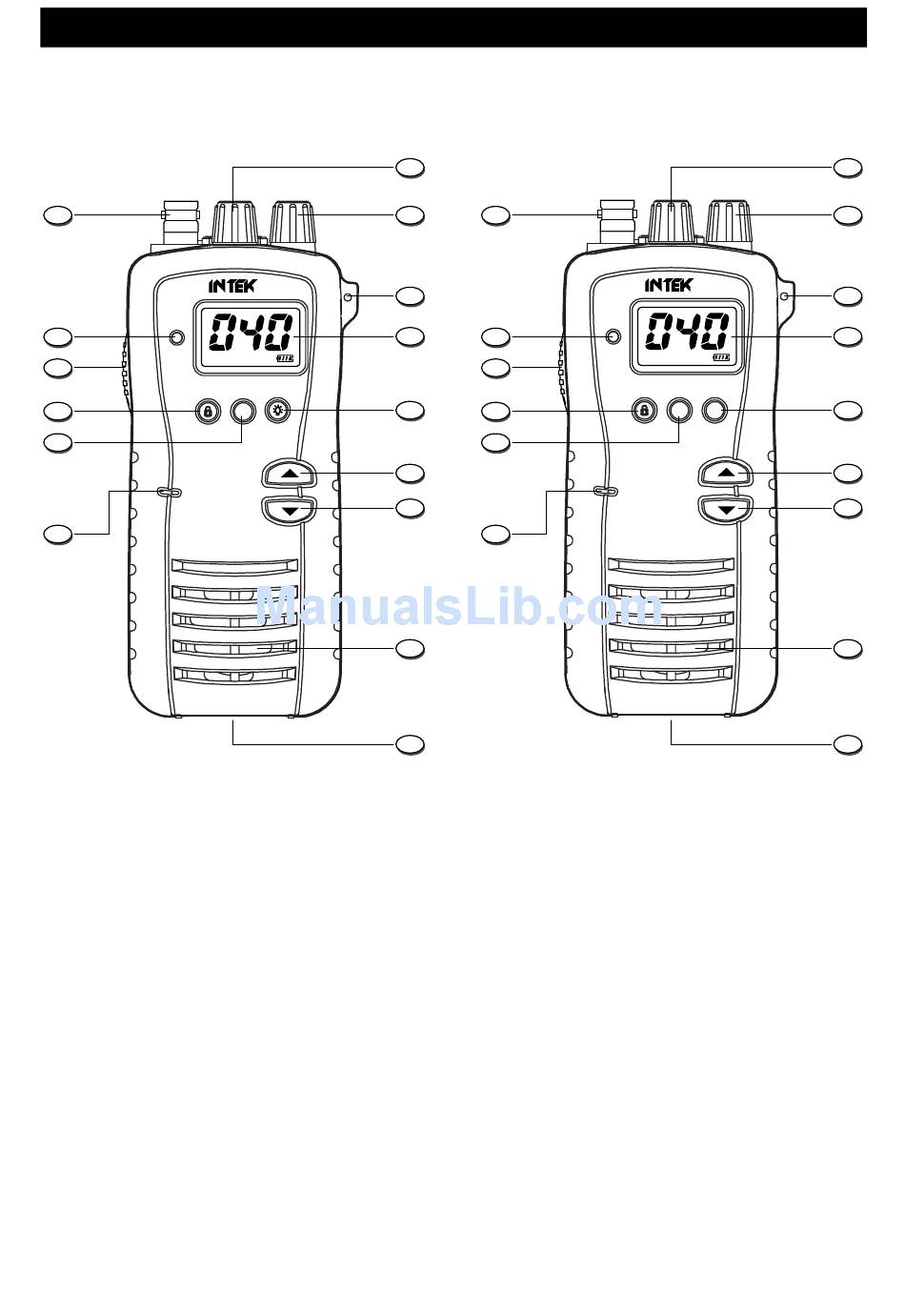

Front Panel
1
15
TX
AM
14
13
12
MIC
11
H-510 PLUS
AM CB TRANSCEIVER
H-510 PLUS
1. Antenna Connector
Connect the supplied rubber antenna to this BNC connector, insert and gently turn it clockwise until blocked.
Do not overtighten. If the antenna is not or not correctly connected, damage may be caused to the radio.
2. SQ/SQL Control
SQL CONTROL (SQUELCH manual adjustment)
The SQL control allows to silent the receiver by cutting the background noise, when no signals are received. Turn the
knob clockwise until the background noise is cut. Turn the knob counter clockwise (SQUELCH opening) in order to listen
to the weakest signals.
SQ CONTROL (SQUELCH fixed setting)
The SQ function allows to automatically silent the receiver, avoding the SQUELCH manual adjustment. A fixed
SQUELCH threshold is factory pre-set. To enable the fixed SQUELCH function, turn the knob fully counter clockwise to
the SQ position, until a click noise is heard.

Controls, Indicators and Operation

FM LOCK HI LO
H/L
UP
DN
2
3 1
4
5
15
14
6
13
12
7
8
11
9
10
