- Page 1 H-510 PLUS H-512 PLUS MULTISTANDARD PROGRAMMABLE 27MHz CB HANDHELD TRANSCEIVERS OWNER'S MANUAL MANUALE DI ISTRUZIONI Downloaded from www.cbradio.nl...
-
Page 2: Table Of Contents
Declaration of Conformity H-510 PLUS ........ -
Page 3: Controls, Indicators And Operation

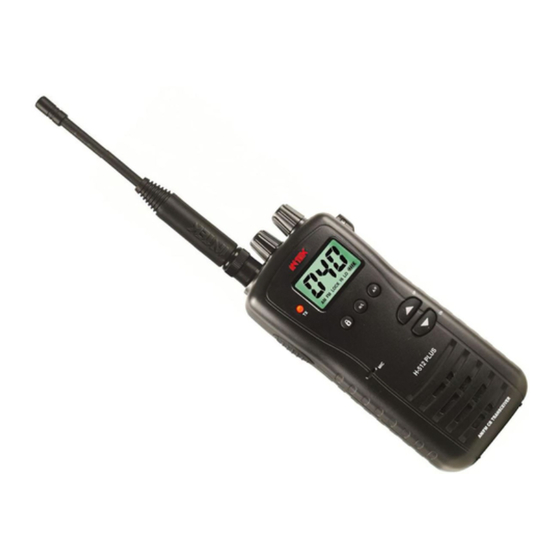

Controls, Indicators and Operation Front Panel AM FM LOCK HI LO LOCK HI LO H-510 PLUS H-512 PLUS AM CB TRANSCEIVER AM/FM CB TRANSCEIVER H-510 PLUS H-512 PLUS Antenna Connector Connect the supplied rubber antenna to this BNC connector, insert and gently turn it clockwise until blocked. - Page 4 Controls, Indicators and Operation VOL (OFF/Volume) Control This knob switches the radio ON and OFF and it adjusts the volume control. If no signals are being received on the operating channel, it is suggested to open the SQUELCH and adjust the volume to the desired level while listening to the background noise.
- Page 5 Controls, Indicators and Operation LIGHT Key (H-510 PLUS) Press the LIGHT (6) key to backlight the LCD display, press the key again to switch OFF backlight. A/F (AM/FM) Key (H-512 PLUS) Use the AF key to select the AM or FM operating mode in both RX and TX. The AM/FM operating mode selection is possible only if it is allowed by the programmed frequency band, otherwise the AM/FM selection is not possible.
- Page 6 Controls, Indicators and Operation Rear Panel Earset-Microphone-Charge Jack Connect an external earset-microphone to this jack. Connect the 230VAC battery travel charger (AC-520) to this jack. WARNING ! Use only original accessories. Connecting and using accessories other than the original ones, may cause serious damage to the radio and will void the warranty.
-
Page 7: Battery Operation
Always switch OFF radio before starting the battery charging process. Do not recharge batteries for more than 13-14 hours, in order to avoid overcharge or overheating, which could cause damage to the radio. Use only the enclosed battery charger or original INTEK battery chargers. - 6 -... -
Page 8: Frequency Bands Table H-510 Plus
Frequency Bands Table H-510 PLUS Frequency Bands Table H-510 PLUS The INTEK H-510 PLUS transceiver includes an advanced multi-standard programmable circuit design, which allows to program the radio in accordance with the frequency band, operating modes, transmitter RF output power in full compliance with the local regulations of the country where the radio will be used. -
Page 9: Frequency Bands Table H-512 Plus - User Information
Frequency Bands Table H-512 PLUS - User Information Frequency Bands Table H-512 PLUS The INTEK H-512 PLUS transceiver includes an advanced multi-standard programmable circuit design, which allows to program the radio in accordance with the frequency band, operating modes, transmitter RF output power in full compliance with the local regulations of the country where the radio will be used. -
Page 10: Frequency Band Selection / Programming
Frequency Bands Selection / Programming Frequency Band Selection / Programming The radio must be programmed and used exclusively on the frequency band allowed by the regulations of the country where the radio will be used. In order to program the frequency band, please refer to the following instructions : Turn OFF radio. -
Page 11: Specifications - Optional Accessories
Specifications - Optional Accessories Specifications General Channels Refer to the frequency bands table at pages 8-9 Frequency band 27 MHz Citizen Band Frequency control P.L.L. Operatine temperature -10°/+55°C DC input voltage 9.0V (6 x AAA 1.5V alkaline battery) 7.2V (6 x AAA 1.2V Ni-MH battery) Size 68 (L) x 146 (H) x 38 (D) mm Weight...
