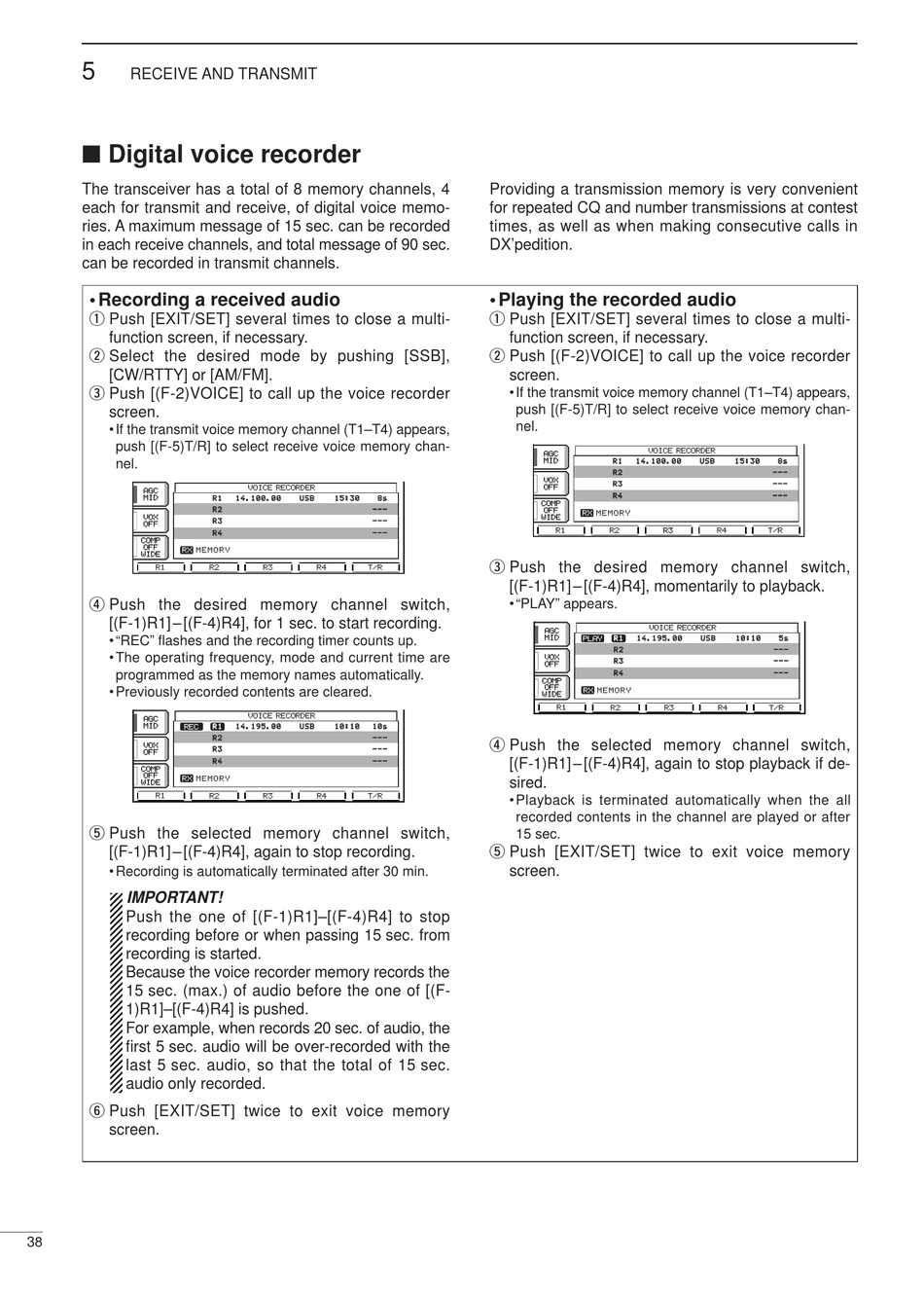

Digital Voice Recorder - Icom IC-756PROII Instruction Manual

5
RECEIVE AND TRANSMIT

Digital voice recorder

The transceiver has a total of 8 memory channels, 4
each for transmit and receive, of digital voice memo-
ries. A maximum message of 15 sec. can be recorded
in each receive channels, and total message of 90 sec.
can be recorded in transmit channels.
• Recording a received audio
q Push [EXIT/SET] several times to close a multi-
function screen, if necessary.
w Select the desired mode by pushing [SSB],
[CW/RTTY] or [AM/FM].
e Push [(F-2)VOICE] to call up the voice recorder
screen.
• If the transmit voice memory channel (T1–T4) appears,
push [(F-5)T/R] to select receive voice memory chan-
nel.
AGC AGC
MID MID
VOX VOX
OFF OFF
COMP COMP
OFF OFF
R X RX M E M O R Y M E M O R Y
WIDE WIDE
R1 R1
r Push the desired memory channel switch,
[(F-1)R1] – [(F-4)R4], for 1 sec. to start recording.
• "REC" flashes and the recording timer counts up.
• The operating frequency, mode and current time are
programmed as the memory names automatically.
• Previously recorded contents are cleared.
AGC AGC
MID MID REC REC
VOX VOX
OFF OFF
COMP COMP
OFF OFF
R X RX M E M O R Y M E M O R Y
WIDE WIDE
R1 R1
t Push the selected memory channel switch,
[(F-1)R1] – [(F-4)R4], again to stop recording.
• Recording is automatically terminated after 30 min.
IMPORTANT!
Push the one of [(F-1)R1]–[(F-4)R4] to stop
recording before or when passing 15 sec. from
recording is started.
Because the voice recorder memory records the
15 sec. (max.) of audio before the one of [(F-
1)R1]–[(F-4)R4] is pushed.
For example, when records 20 sec. of audio, the
first 5 sec. audio will be over-recorded with the
last 5 sec. audio, so that the total of 15 sec.
audio only recorded.
y Push [EXIT/SET] twice to exit voice memory
screen.
38
VOICE RECORDER VOICE RECORDER
R1 R 1 1 4.1 0 0 . 00 1 4 . 1 0 0 . 0 0 U S B U S B 1 5 : 3 0 1 5: 3 0 8 s 8s
R 2 R 2 - - - - --
R 3 R 3 - - - - --
R 4 R 4 - - - - --
R2 R2 R3 R3 R4 R4 T/R T/R
VOICE RECORDER VOICE RECORDER
R 1 R 1 1 4 . 1 9 5 . 0 0 14 . 1 95 . 0 0 US B U S B 1 0 : 10 1 0 : 1 0 1 0 s 1 0 s
R 2 R 2 - - - - - -
R 3 R 3 - - - - - -
R 4 R 4 - - - - - -
R2 R2 R3 R3 R4 R4 T/R T/R
Providing a transmission memory is very convenient
for repeated CQ and number transmissions at contest
times, as well as when making consecutive calls in
DX'pedition.
• Playing the recorded audio
q Push [EXIT/SET] several times to close a multi-
function screen, if necessary.
w Push [(F-2)VOICE] to call up the voice recorder
screen.
• If the transmit voice memory channel (T1–T4) appears,
push [(F-5)T/R] to select receive voice memory chan-
nel.
VOICE RECORDER VOICE RECORDER
AGC AGC
MID MID R 1 R 1 1 4. 1 0 0 .0 0 1 4 . 1 0 0 . 0 0
R 2 R 2
VOX VOX
R 3 R 3
OFF OFF
R 4 R 4
COMP COMP
OFF OFF
R X RX M E M O R Y M E M O R Y
WIDE WIDE
R1 R1 R2 R2 R3
e Push the desired memory channel switch,
[(F-1)R1] – [(F-4)R4], momentarily to playback.
• "PLAY" appears.
VOICE RECORDER VOICE RECORDER
AGC AGC
MID MID PLAY PLAY R 1 R1 14 . 1 9 5. 0 0 1 4 . 1 9 5 . 0 0
R 2 R 2
VOX VOX
R 3 R 3
OFF OFF
R 4 R 4
COMP COMP
OFF OFF
R X R X M E M O R Y M E M O R Y
WIDE WIDE
R1 R1 R2 R2
r Push the selected memory channel switch,
[(F-1)R1] – [(F-4)R4], again to stop playback if de-
sired.
• Playback is terminated automatically when the all
recorded contents in the channel are played or after
15 sec.
t Push [EXIT/SET] twice to exit voice memory
screen.
U SB U S B 15 : 3 0 1 5 : 3 0 8 s 8 s
- - - - - -
- - - - - -
- - - - - -
R4 R4 T/R T/R
U S B US B 1 0 : 1 0 1 0 : 1 0 5 s 5 s
- -- - - -
- - - - --
- -- - - -
R3 R3 R4 R4 T/R T/R
