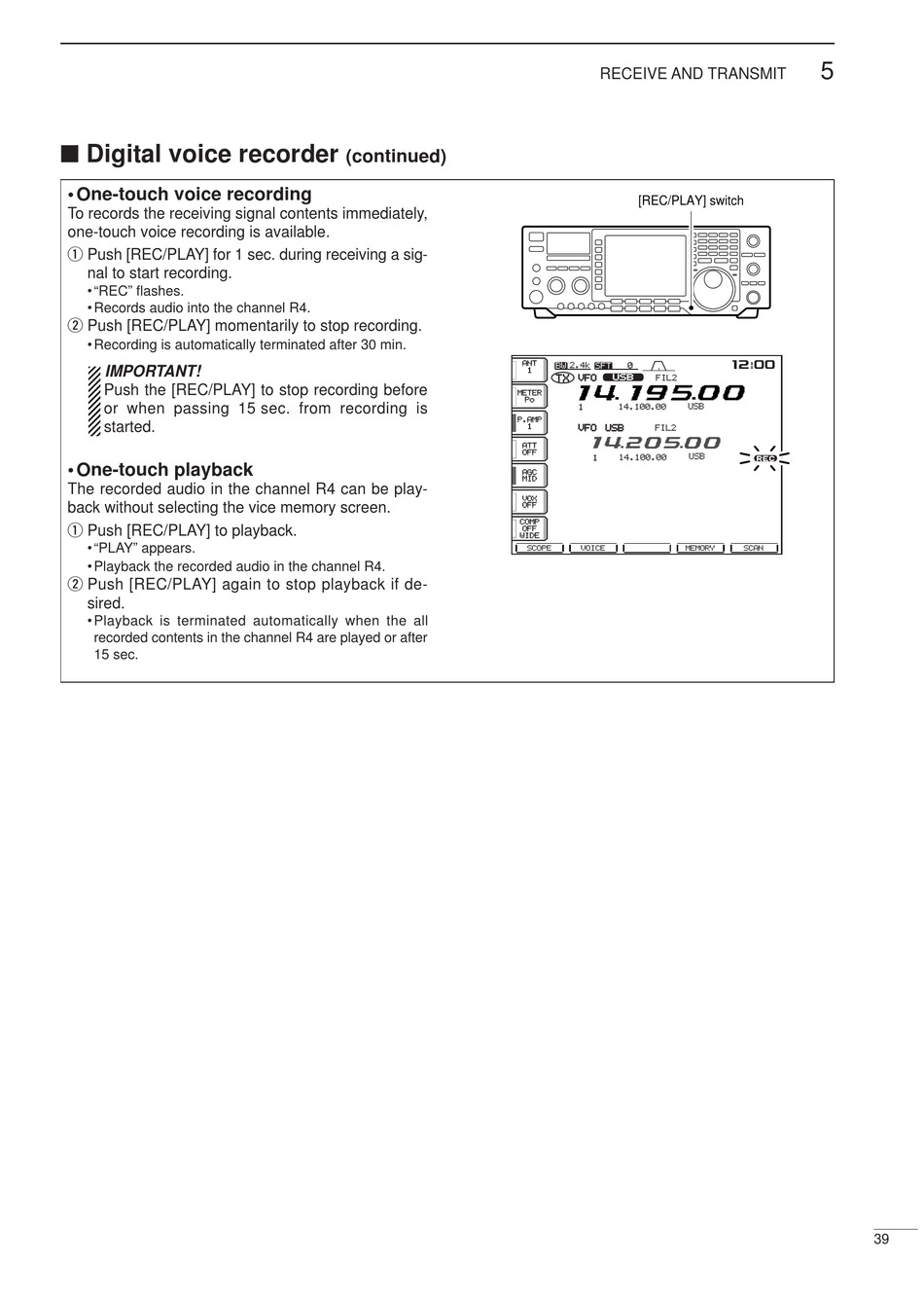

Icom IC-756PROII Instruction Manual page 41

Digital voice recorder
• One-touch voice recording
To records the receiving signal contents immediately,
one-touch voice recording is available.
q Push [REC/PLAY] for 1 sec. during receiving a sig-
nal to start recording.
• "REC" flashes.
• Records audio into the channel R4.
w Push [REC/PLAY] momentarily to stop recording.
• Recording is automatically terminated after 30 min.
IMPORTANT!
Push the [REC/PLAY] to stop recording before
or when passing 15 sec. from recording is
started.
• One-touch playback
The recorded audio in the channel R4 can be play-
back without selecting the vice memory screen.
q Push [REC/PLAY] to playback.
• "PLAY" appears.
• Playback the recorded audio in the channel R4.
w Push [REC/PLAY] again to stop playback if de-
sired.
• Playback is terminated automatically when the all
recorded contents in the channel R4 are played or after
15 sec.
(continued)
METER METER
P.AMP P.AMP
RECEIVE AND TRANSMIT
[REC/PLAY] switch
ANT ANT
BW BW 2.4k 2.4k 0
SFT SFT
1
VFO VFO U S B U S B
TX T X FIL2 FIL2
qr.qot.pp
Po Po
1 14.100.00 14.100.00 USB USB
1
VFO VFO USB USB
FIL2 FIL2
qr.wpt.pp
ATT ATT
OFF OFF
USB USB
14.100.00 14.100.00
1
AGC AGC
MID MID
VOX VOX
OFF OFF
COMP COMP
OFF OFF
WIDE WIDE
SCOPE SCOPE VOICE VOICE MEMORY MEMORY
5
qw:pp
R E C R E C
SCAN SCAN
39
