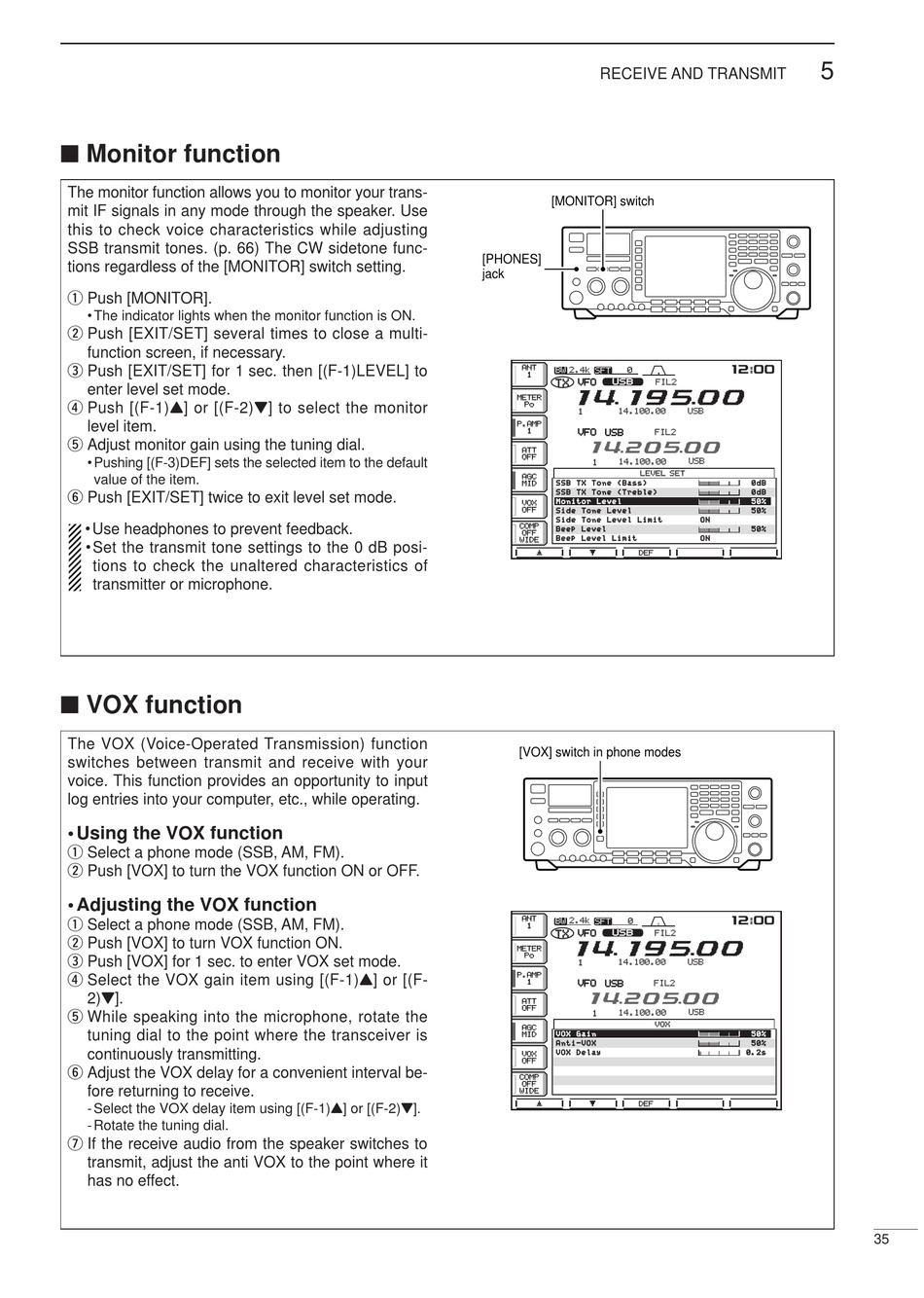

Monitor function

The monitor function allows you to monitor your trans-
mit IF signals in any mode through the speaker. Use
this to check voice characteristics while adjusting
SSB transmit tones. (p. 66) The CW sidetone func-
tions regardless of the [MONITOR] switch setting.
q Push [MONITOR].
• The indicator lights when the monitor function is ON.
w Push [EXIT/SET] several times to close a multi-
function screen, if necessary.
e Push [EXIT/SET] for 1 sec. then [(F-1)LEVEL] to
enter level set mode.
r Push [(F-1)Y] or [(F-2)Z] to select the monitor
level item.
t Adjust monitor gain using the tuning dial.
• Pushing [(F-3)DEF] sets the selected item to the default
value of the item.
y Push [EXIT/SET] twice to exit level set mode.
• Use headphones to prevent feedback.
• Set the transmit tone settings to the 0 dB posi-
tions to check the unaltered characteristics of
transmitter or microphone.

VOX function

The VOX (Voice-Operated Transmission) function
switches between transmit and receive with your
voice. This function provides an opportunity to input
log entries into your computer, etc., while operating.
• Using the VOX function
q Select a phone mode (SSB, AM, FM).
w Push [VOX] to turn the VOX function ON or OFF.
• Adjusting the VOX function
q Select a phone mode (SSB, AM, FM).
w Push [VOX] to turn VOX function ON.
e Push [VOX] for 1 sec. to enter VOX set mode.
r Select the VOX gain item using [(F-1)Y] or [(F-
2)Z].
t While speaking into the microphone, rotate the
tuning dial to the point where the transceiver is
continuously transmitting.
y Adjust the VOX delay for a convenient interval be-
fore returning to receive.
- Select the VOX delay item using [(F-1)Y] or [(F-2)Z].
- Rotate the tuning dial.
u If the receive audio from the speaker switches to
transmit, adjust the anti VOX to the point where it
has no effect.
RECEIVE AND TRANSMIT
[MONITOR] switch
[PHONES]
jack
ANT ANT
BW BW 2.4k 2.4k SFT SFT 0
1
T X TX VFO VFO U S B U S B
FIL2 FIL2
qr.qot.pp
METER METER
Po Po
1 14.100.00 14.100.00
P.AMP P.AMP
1
VFO VFO USB USB
FIL2 FIL2
qr.wpt.pp
ATT ATT
OFF OFF
1 14.100.00 14.100.00
LE VE L S ET
AGC AGC
SSB TX To ne (Ba ss)
MID MID
SSB TX To ne (Tr eble)
Mo nitor Level
VOX VOX
OFF OFF Si de Tone Level
Si de Tone Level Limit
COMP COMP
Beep L evel
OFF OFF
Beep L evel L imit
WIDE WIDE
é è
DEF
[VOX] switch in phone modes
ANT ANT
BW BW 2.4k 2.4k SFT SFT 0
1
TX T X VFO VFO U S B U S B
FIL2 FIL2
qr.qot.pp
METER METER
Po Po
1 14.100.00 14.100.00
P.AMP P.AMP
1
VFO VFO USB USB
FIL2 FIL2
qr.wpt.pp
ATT ATT
OFF OFF
1 14.100.00 14.100.00
VO X
AGC AGC
VOX Gain
MID MID
Anti -VOX
VO X Delay
VOX VOX
OFF OFF
COMP COMP
OFF OFF
WIDE WIDE
é è
DEF
5
qw:pp
USB USB
USB USB
0dB
0dB
50%
50%
ON
5 0%
ON
qw:pp
USB USB
USB USB
50%
50%
0.2s
35
