3. Remove the Media Supply Hanger from the Bottom Enclosure.
Bottom
Enclosure

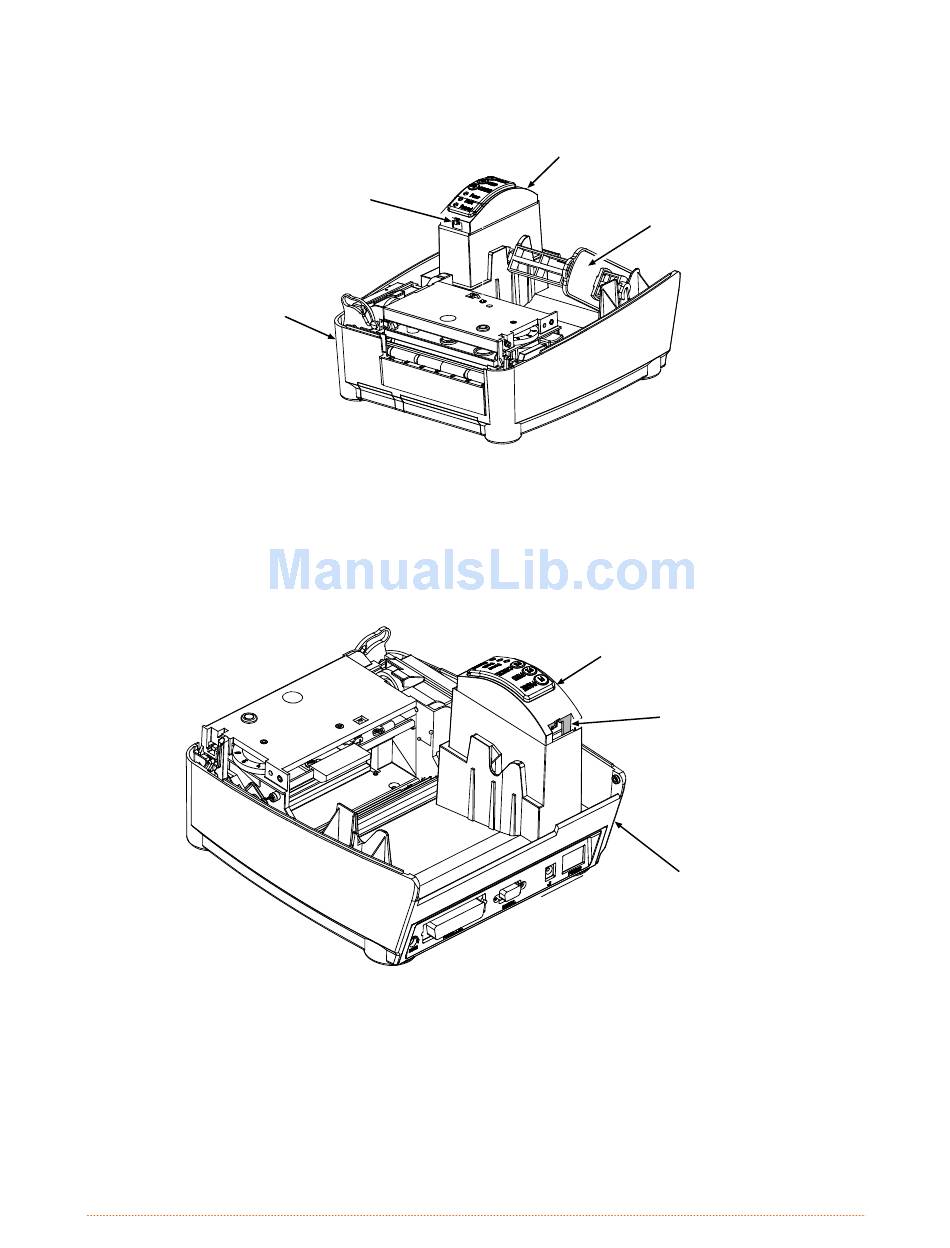

4. Using a screwdriver, gently push in the Locking Tab then lift the Control Panel Assembly off the
Bottom Enclosure.
4-10
Option
Port
Control Panel
Assembly
Media Supply
Hanger
Control Panel
Assembly
Locking Tab
Bottom
Enclosure
Removal and Replacement
