Datamax Mark II E-4205e Quick Start Manual

Datamax mark ii e-4205e: quick start
Hide thumbs Also See for Mark II E-4205e:

Advertisement

Quick Links

LAN (optional)
Connect Power and
Communications
Adjust Media
Sensor
(perform only if
equipped with the
optional AMS
feature)
USB
Serial
Parallel
To Host
2
Power
Connection
1
While ensuring the Reference
Letter matches, position the top
and bottom halves of the Media
Sensor over the gap, notch,
or mark in the media.
Roll
Media
Printhead
Carrier
Load Media

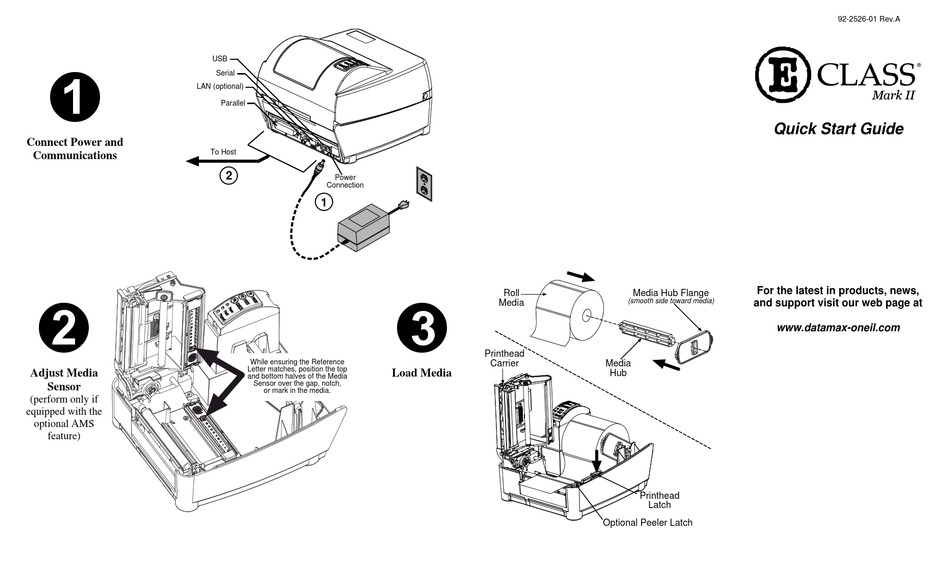

Quick Start Guide

For the latest in products, news,
Media Hub Flange
(smooth side toward media)
and support visit our web page at
www.datamax-oneil.com
Media
Hub
Printhead
Latch
Optional Peeler Latch
92-2526-01 Rev.A
