Replacement:

1. Carefully connect the Printhead Cable to the Printhead.

2. Position the Printhead onto the pins in the Printhead Assembly and, after ensuring that the

Printhead Cable is not pinched, tighten (but not excessively) the Printhead Screw.

3. Clean the Printhead (see Section 2.1.1).

4. Adjust the Printhead; see Section 2.4.

4.3 Electronics Tray

Removal:

1. Turn OFF and unplug the printer.

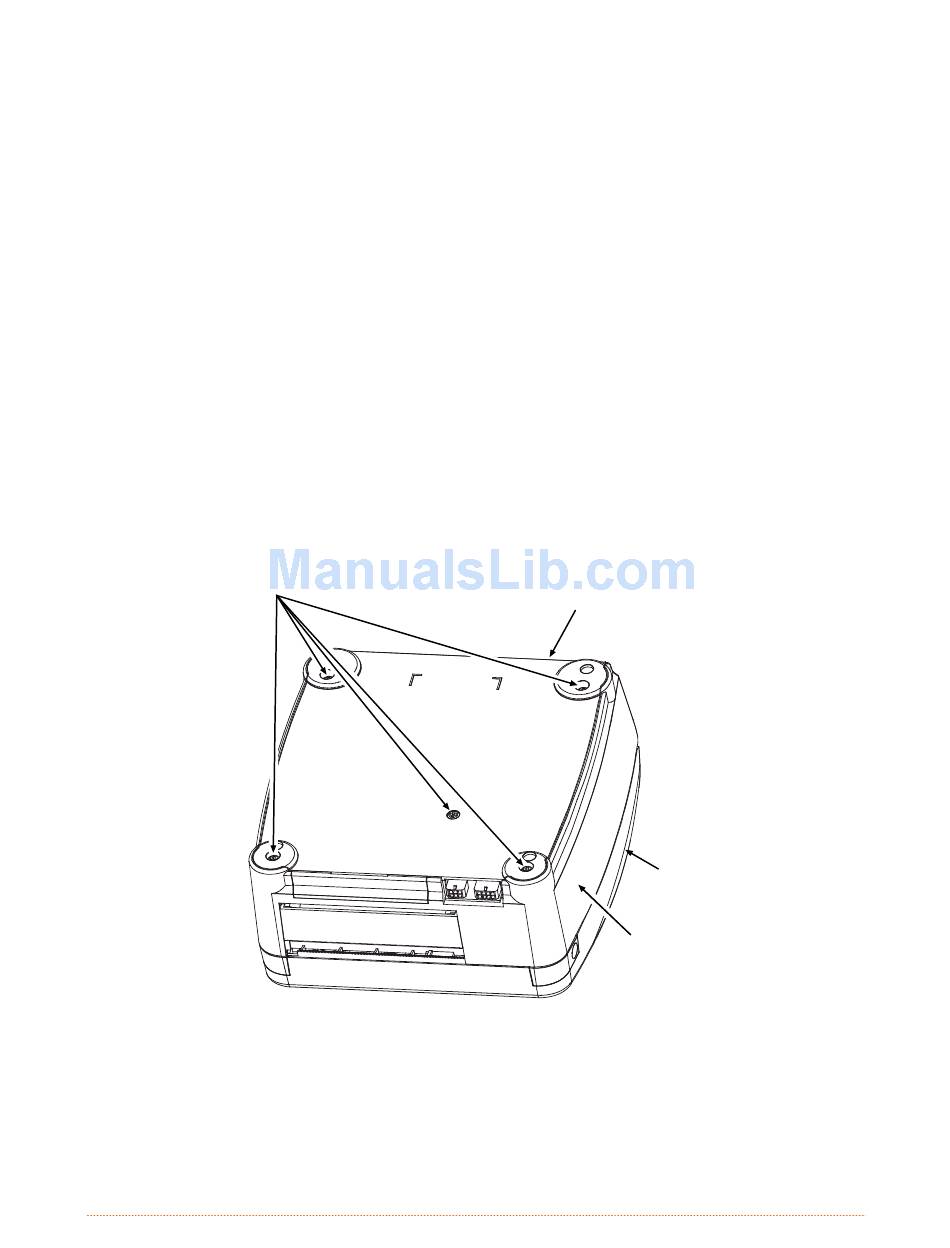

2. Remove the five Screws that secure the Electronics Tray to the Bottom Enclosure.

Screws

3. While holding the Electronics Tray, the Bottom Enclosure, and the Cover right the printer. Then

gently lift the Bottom Enclosure and the Cover off and to the left of the Electronics Tray, as shown

below.

Removal and Replacement

Electronics

Tray

Cover

Bottom

Enclosure

4-3
