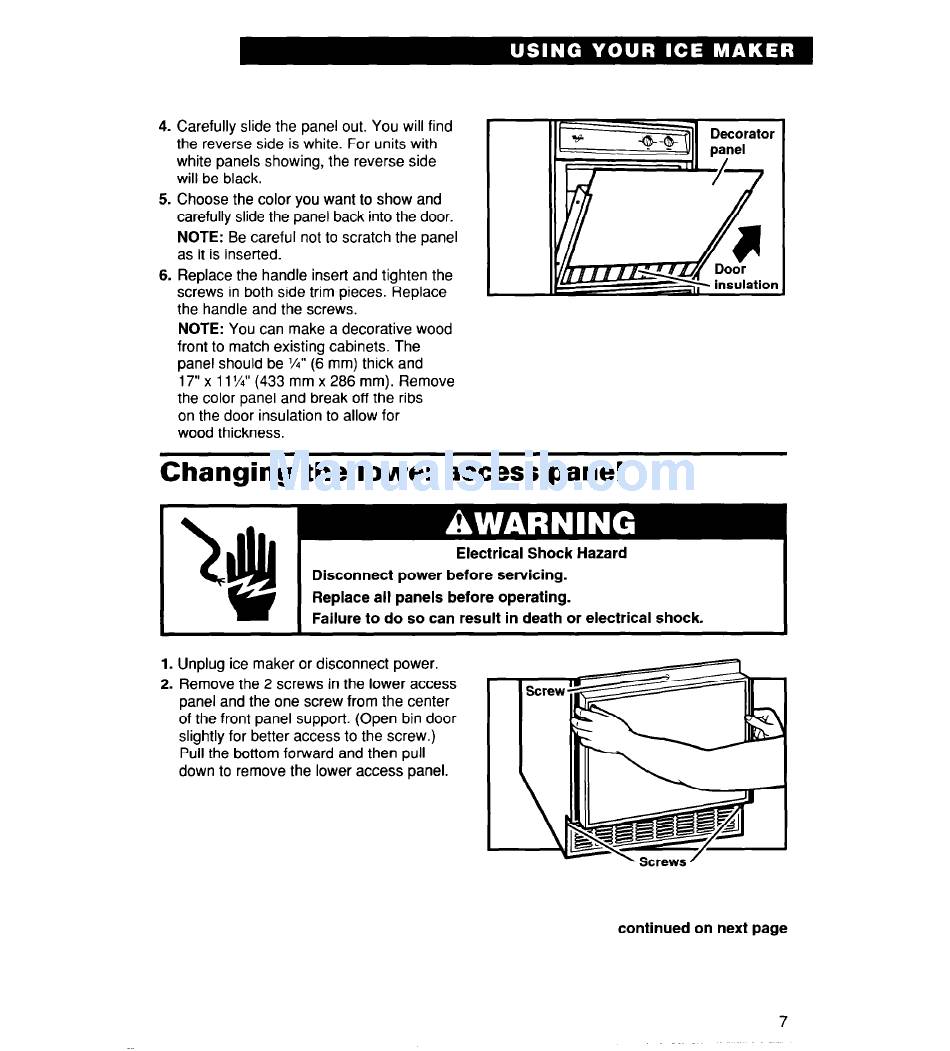

Whirlpool Automatic Ice Maker User And Care Manual page 7

4. Carefully slide the panel out. You will find
the reverse side is white. For units with
white panels showing, the reverse side
will be black.
5. Choose the color you want to show and
carefully slide the panel back into the door.
NOTE: Be careful not to scratch the panel
as it is inserted.
6. Replace the handle insert and tighten the
screws in both side trim pieces. Replace
the handle and the screws.
NOTE: You can make a decorative wood
front to match existing cabinets. The
panel should be 97' (6 mm) thick and
17" x 11%" (433 mm x 286 mm). Remove
the color panel and break off the ribs
on the door insulation to allow for
wood thickness.
Changing the lower access panel
Electrical Shock Hazard
Disconnect power before servicing.
Replace all panels before operating.
Failure to do so can result in death or electrical shock.
1. Unplug ice maker or disconnect power.
2. Remove the 2 screws in the lower access
panel and the one screw from the center
of the front panel support. (Open bin door
slightly for better access to the screw.)
Pull the bottom forward and then pull
down to remove the lower access panel.
continued on next page
7
