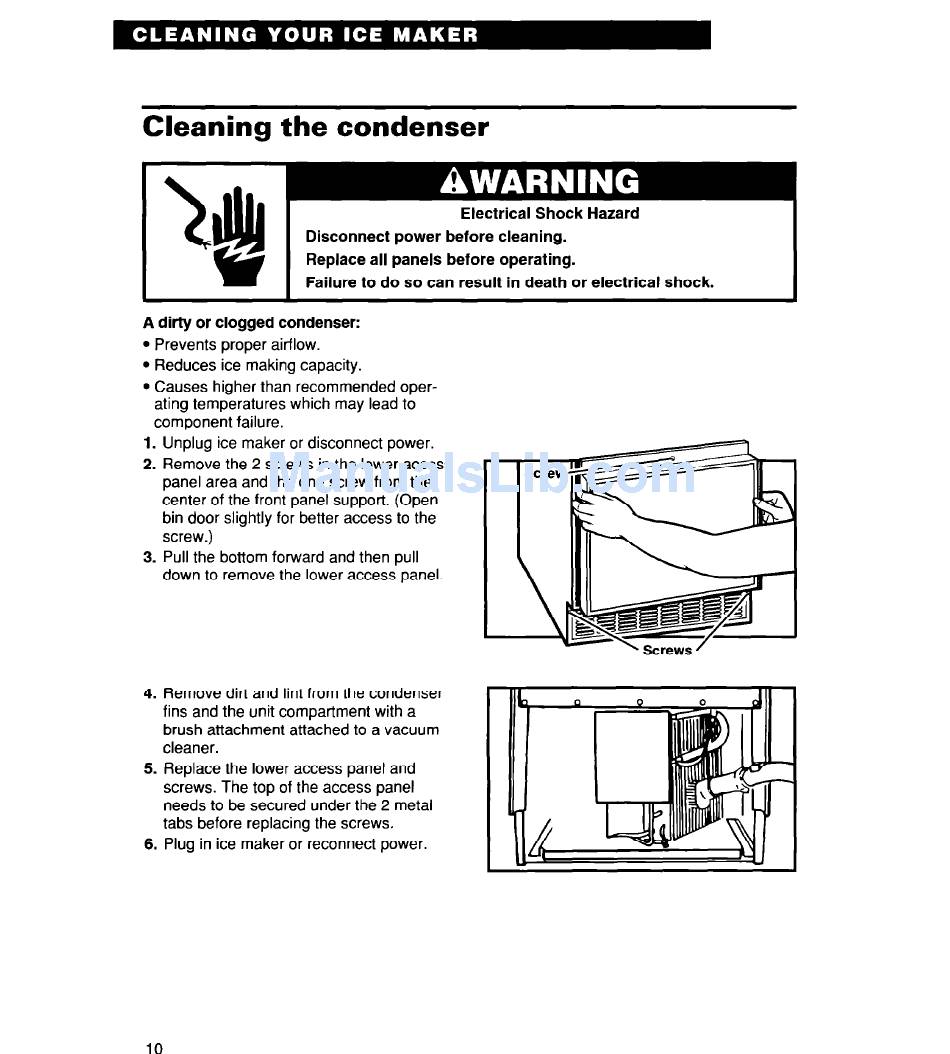

Whirlpool Automatic Ice Maker User And Care Manual page 10

Cleaning the condenser
Electrical Shock Hazard
Disconnect power before cleaning.
Replace all panels before operating.
Failure to do so can result in death or electrical shock.
A dirty or clogged condenser:
l
Prevents proper airflow.
l
Reduces ice making capacity.
l
Causes higher than recommended oper-
ating temperatures which may lead to
component failure.
1. Unplug ice maker or disconnect power.
2. Remove the 2 screws in the lower access
panel area and the one screw from the
center of the front panel support. (Open
bin door slightly for better access to the
screw.)
3. Pull the bottom forward and then pull
down to remove the lower access panel.
4. Remove dirt and lint from the condenser
fins and the unit compartment with a
brush attachment attached to a vacuum
cleaner.
5. Replace the lower access panel and
screws. The top of the access panel
needs to be secured under the 2 metal
tabs before replacing the screws,
6. Plug in ice maker or reconnect power.
10
