Whirlpool GI15NDXTB1 Parts List

Whirlpool ice cube maker parts list
Hide thumbs

Advertisement

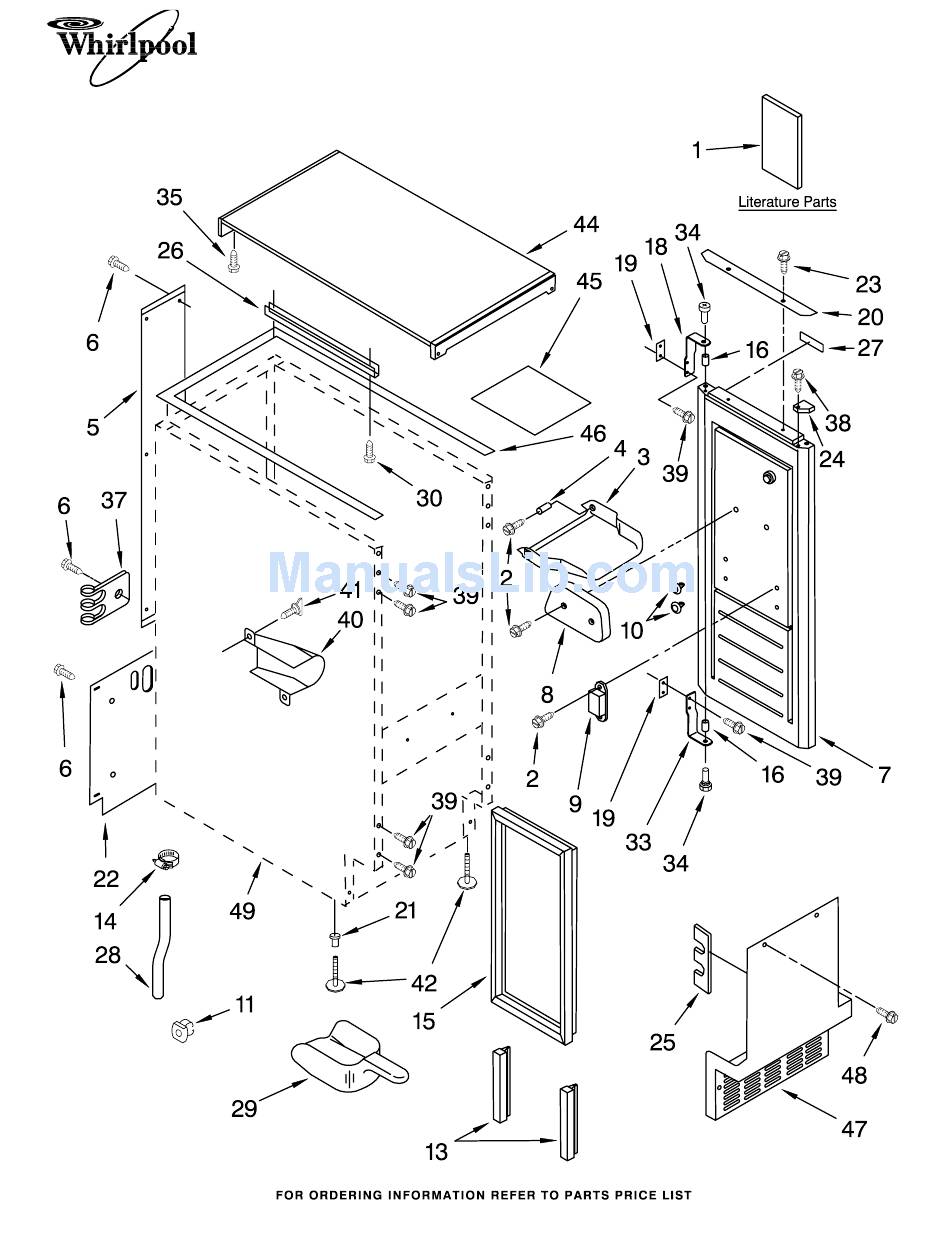

CABINET LINER AND DOOR PARTS
ICE CUBE
MAKER
For Models: GI15NDXTQ1, GI15NDXTB1,GI15NDXTS1
(White)
(Black) (Stainless Steel)
Part No. W10165835 Rev.A
10−09 Litho In U.S.A. (rrm)
1

Advertisement

loading

  Also See for Whirlpool GI15NDXTB1

  Summary of Contents for Whirlpool GI15NDXTB1

  • Page 1 CABINET LINER AND DOOR PARTS ICE CUBE MAKER For Models: GI15NDXTQ1, GI15NDXTB1,GI15NDXTS1 (White) (Black) (Stainless Steel) Part No. W10165835 Rev.A 10−09 Litho In U.S.A. (rrm)
  • Page 2 CABINET LINER AND DOOR PARTS For Models: GI15NDXTQ1, GI15NDXTB1,GI15NDXTS1 Illus. Part DESCRIPTION Literature Parts 2313683 Use & Care Guide 2324311 Service & Wiring Sheet 3400886 Screw 8−18 x 1 1/4 2185742 Bin, Door 2185678 Spacer 2217394 Cover, Wiring 489442 Screw...
  • Page 3 EVAPORATOR, ICE CUTTER GRID AND WATER PARTS For Models: GI15NDXTQ1, GI15NDXTB1,GI15NDXTS1 (White) (Black) (Stainless Steel) W10165835...
  • Page 4 EVAPORATOR, ICE CUTTER GRID AND WATER PARTS For Models: GI15NDXTQ1, GI15NDXTB1,GI15NDXTS1 (White) (Black) (Stainless Steel) Illus. Part DESCRIPTION 1 W10159841 Valve, Complete Water 2217286 Tube, Plastic 488208 Screw 2185523 Dispenser, Water Evaporator W10218037 2313705 Pump, Drain 2313851 Tube,Reservoir Pump 2172593 Tube, Water Fill...
  • Page 5: Pump Parts

    For Models: GI15NDXTQ1, GI15NDXTB1,GI15NDXTS1 W10165835 PUMP PARTS (White) (Black) (Stainless Steel) Illus. Part DESCRIPTION 2313628 Pump−Recirculating 3400884 Screw 8−18 x 5/8 2185677 Cover, Pump 2313844 Bracket, Connector Assembly 2313627 Bracket−Pump 2313643 Sensor−Water Level 2310092 Wiring Harness Main To Pump 2313702 Pump Assembly...
  • Page 6: Control Panel Parts

    CONTROL PANEL PARTS For Models: GI15NDXTQ1, GI15NDXTB1,GI15NDXTS1 (White) (Black) (Stainless Steel) Illus. Part DESCRIPTION 1 W10139122 Box, Control 2310139 Transformer 2304121 Assembly, Switch (Also Order #4) 2313692 Overlay 5 W10122069 Control Board 2149705 Switch, Plunger (Also Order # 4) 2187585 Wire Assy−Active...
  • Page 7: Unit Parts

    UNIT PARTS For Models: GI15NDXTQ1, GI15NDXTB1,GI15NDXTS1 (White) (Black) (Stainless Steel) W10165835...
  • Page 8 For Models: GI15NDXTQ1, GI15NDXTB1,GI15NDXTS1 Illus. Part DESCRIPTION 2185532 Bracket, Fan Mtg. 2185675 Pad, Foam 2188935 Blade, Fan 2315558 Motor & Mounting Plate Assembly 5 W10139121 Wiring Harness, Complete Unit (Includes Power Cord 304392 Screw 7 W10136195 Compressor (Includes Illus. 11 & 23)
  • Page 9 OPTIONAL PARTS (NOT INCLUDED) For Models: GI15NDXTQ1, GI15NDXTB1,GI15NDXTS1 W10165835 (White) (Black) (Stainless Steel) Illus. Part DESCRIPTION Parts Not Illustrated and Optional Parts (Not Included) 503695 Sealer, Cork (1/4 Pound) 797403 Cement, Insulation (1 Oz.) 505587 Sealer, Mastic (1 Qt.) 212643 Sealer, Gum (22 Pcs.

This manual is also suitable for:

Gi15ndxts1Gi15ndxtq1
