Whirlpool AGS 836 Technical & Service Manual

Ice cube makers
Hide thumbs

Advertisement

(R404a)
WHIRLPOOL

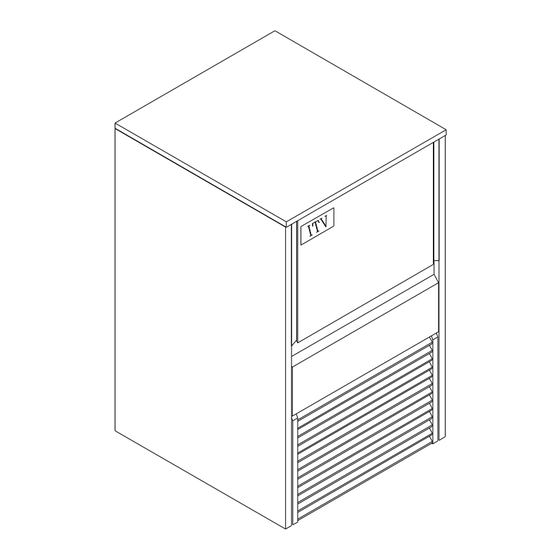

TECHNICAL SERVICE MANUAL
ICE CUBE MAKERS
MODELS:
WHIRLPOOL AGS 836/837
WHIRLPOOL AGS 838/839
WHIRLPOOL AGS 840/841
WHIRLPOOL AGS 842/843
WHIRLPOOL AGS 844/845
WHIRLPOOL AGS 846/847
WHIRLPOOL AGS 848/849
MODULARS:
WHIRLPOOL AGS 850/851 (MODULAR 200)
CAREFULLY READ THE INSTRUCTIONS CONTAINED IN THIS MANUAL SINCE THEY
PROVIDE IMPORTANT INFORMATION RELATIVE TO SAFETY DURING INSTALLATION,
USE, AND MAINTENANCE.
EDITION:
NOVEMBER 2006.
COD: WHP02MTIN.DOC
1

Advertisement

Table of Contents
loading

  Summary of Contents for Whirlpool AGS 836

  • Page 1 WHIRLPOOL AGS 842/843 WHIRLPOOL AGS 844/845 WHIRLPOOL AGS 846/847 WHIRLPOOL AGS 848/849 MODULARS: WHIRLPOOL AGS 850/851 (MODULAR 200) CAREFULLY READ THE INSTRUCTIONS CONTAINED IN THIS MANUAL SINCE THEY PROVIDE IMPORTANT INFORMATION RELATIVE TO SAFETY DURING INSTALLATION, USE, AND MAINTENANCE. EDITION: NOVEMBER 2006.
  • Page 2: Table Of Contents

    TABLE OF CONTENTS Introduction Warnings................................3 Description................................. 4 Operating Principles............................5 Specifications Diagrams of connections and dimensions (undercounter models) ..............6 Consumption data, weights, crated dimensions and volumes (undercounter models)........8 Technical data (undercounter models) ......................10 Production Tables ............................11 Delivery &...
  • Page 3: Warnings

    INTRODUCTION Thank you for choosing Whirlpool ice cube makers. You have purchased one of the most reliable ice-making products on the market today. Carefully read the instructions contained in this manual since they provide important information relative to safety during installation, use, and maintenance.
  • Page 4: Description

    • Storage bin made of polyester strengthened with glass fibre or ABS • Stock bin made of high resistance plastic materials • Polyurethane insulation injected “IN SITU” • Heavy duty door (pat.) except AGS 836/837/838/839 and 850/851. • Agitator motor for continuous service • Tough cam motor (50 Kg/cm) •...
  • Page 5: Diagrams Of Connections And Dimensions (Undercounter Models)

    WHIRLPOOL...
  • Page 6: Whirlpool Ags

    WHIRLPOOL AGS...
  • Page 7: Consumption Data, Weights, Crated Dimensions And Volumes (Undercounter Models)

    SPECIFICACIONS Models: WHIRLPOOL AGS 836….849 Water entry Electrical connection Bin drain Cooling water * HEIGHT Z REPRESENTS MINIMUM MACHINE HEIGHT. IF LEGS ARE PLACED UNDER MACHINE, THEN ADD AN EXTRA 80 MM.* MODEL WHP AGS 836/837 WHP AGS 838/839 WHP AGS 840/841...
  • Page 8 WHIRLPOOL AGS 850-851 ELECTRICAL CONNECTION STOCK THERMOSTAT WATER INLET...
  • Page 9: Technical Data (Undercounter Models)

    WEIGHT CRATED WEIGHT USAGE WATER USAGE X*Y*Z L/HOUR (1) USAGE L/HOUR (1) (KG) (KG) L/HOUR (1) WHP AGS 836 490x595x765 0.22 WHP AGS 837 490x595x765 0.22 WHP AGS 838 490x595x830 0.24 WHP AGS 839 490x595x830 0.24 WHP AGS 840 490x595x960 0.28...
  • Page 10: Production Tables

    PRODUCTION TABLES FOR ICE CUBE MAKERS (KG/DAY) WHP AGS 836/837 WHP AGS 838/839 30.5 30.5 19.5 19.5 19.5 19.5 19.5 20.4 20.4 20.5 20.5 30.5 20.5 20.5 30.5 27.5 WHP AGS 840/841 WHP AGS 842/843 30.5 30.5 30.5 40.5 40.5 40.5...
  • Page 11 WHP AGS 848/849 WHP AGS 850/851 19.5 27.5 28.5 18.5 19.5 27.5 16.5 18.5 19.5 21.5 15.5 16.5 18.5 21.5 14.5 15.5 16.5 21.5 14.5 15.5 18.5 13.5 14.5 15.5 16.5 18.5 12.5 13.5 15.5 18.5 Min/cycle Kg/day WATER TEMPERATURE (°C) Water quality= 500 ppm (240 Micromh/cm)
  • Page 12: Delivery & Unpacking

    Upon receipt, thoroughly inspect the packing container. If there appears to be damage to the container contact the shipper immediately. Unpack unit in the presence of delivery personnel noting any damage on the waybill. Whirlpool packing bears the “Green Point” on all models according to the European Directives on management of Packaging and Waste Disposal.
  • Page 13: Installation

    INSTALLATION The ice cube maker is delivered on a small wooden pallet and is protected with a cardboard box and packaging. Loosen the cardboard box by cutting the straps, then lift vertically. After having removed the packaging, make sure the machine is complete. If in doubt do not use it and go to the distributor who sold it to you.
  • Page 14: Water And Drainage

    access to condenser and/or water pressure valve, allow sufficient space at front of the machine. Be sure that flooring is firm and even. Water and Drainage Water quality influences ice hardness, flavour, and quality as well as condenser life. Keep in mind the following points: a) WATER IMPURITIES: Major impurities are eliminated by filters provided.
  • Page 15 • It is recommended to install a switch and adequate fuses. Nominal voltage and intensity are indicated on rating plate as well as on this manual's technical pages. Voltage fluctuations greater than 10% can cause problems or prevent machine from starting. •...
  • Page 16: Preliminary Check

    OPERATION Preliminary Check a) Is machine levelled? b) Are voltage and frequency of main supply the same as indicated on rating plate? c) Is drainage system functioning? d) Is air circulation and room temperature adequate? (Air-cooled models) ROOM TEMPERATURE WATER TEMPERATURE MAXIMUM 43°...
  • Page 17: Water Level

    ADJUSTMENTS Condenser water valve pressostat (UP TO WHP AGS 841 WATER COOLED) This pressostat controls high pressure by opening and closing the condenser water valve. Differential is a fixed 1 Kg/cm2 (14 Psi). The valve closes at 16 Kg/cm2 (228 Psi.) which is equivalent to a water exit temperature of 38ºC.
  • Page 18: Pressure Control

    Pressure Control Fan pressostat (air condensation) Pressure Control operates on high pressure by starting and/stopping fan. Differential is fixed. (1Kg/cm2 or 14 Psi.) Cut-off pressure must be 16 Kg/cm2 (228 Psi) Low pressure values may cause gearbox malfunction. Pressure values higher than 16 Kg/cm2 may shorten compressor life and diminish ice production.
  • Page 19: Maintenance And Cleaning Instructions

    MAINTENANCE AND CLEANING INSTRUCTIONS IMPORTANT! **Maintenance and cleaning procedures as well as problems derived from failing to carry them out are not covered by the warranty. Proper maintenance is essential to obtain favourable ice quality and optimum function of unit. Frequency depends on water quality and characteristics of room where unit is installed.
  • Page 20: Water Condenser

    MAINTENANCE AND CLEANING PROCEDURES WARNING: Unit should always be disconnected during maintenance/cleaning procedures. Water Condenser 1) Disconnect machine. 2) Close water faucet. 3) Disconnect water entry/exit from condenser. 4) Prepare a solution of 50% phosphoric acid in distilled water. 5) Distribute solution through condenser. (Solution is more effective at 35°-40°C). WARNING! DO NOT USE HYDROCHLORIC ACID Air Condenser...
  • Page 21: Inlet Filters

    3) Hold agitator paddles so that water pan releases water. 4) Once the water pan returns to its horizontal position again, switch off the machine. Pour 3 litres of water and one half of di-caloid ( cleaner) into water pan 5) Allow the solution to work for 20 or 30 minutes, occasionally turning the paddles by hand so that they are also cleaned.
  • Page 22: Special Advice Concerning R-404 Refrigerant

    Checking for water leaks This must be done whenever maintenance is carried out on the machine: check all water connections, braces, tubes and hoses in order to eliminate leaks and prevent breakages and flooding. Check that the valve closes tightly on models with an automatic cleaning system. SPECIAL ADVICE CONCERNING R-404 REFRIGERANT •...
  • Page 23: Troubleshooting

    TROUBLESHOOTING PROBLEM POSSIBLE CAUSES SOLUTION 1) None of the electrics work. A) The machine is not plugged in. A) Plug the machine. B) The line fuse has blown. B) Replace fuse. C) The current line is wrongly connected in C) Check connections. the junction box.
  • Page 24 PROBLEM POSSIBLE CAUSES SOLUTION 4) Everything appears to be running A) Freezing system faulty. A) Check system. correctly but no ice made in the (dirty condenser, or problem into the evaporator. freezing system). B) Hot gas valve faulty (outlet pipe B) Repalce hot gas valve.
