Ribbon Spool Assembly - Datamax W-Class Maintenance Manual

Removal and Replacement

4.7 Ribbon Spool Assembly

Removal:
1. Turn 'Off' and unplug the printer.
2. Remove the covers, see Section 4.1, and remove the ribbon from the printer.

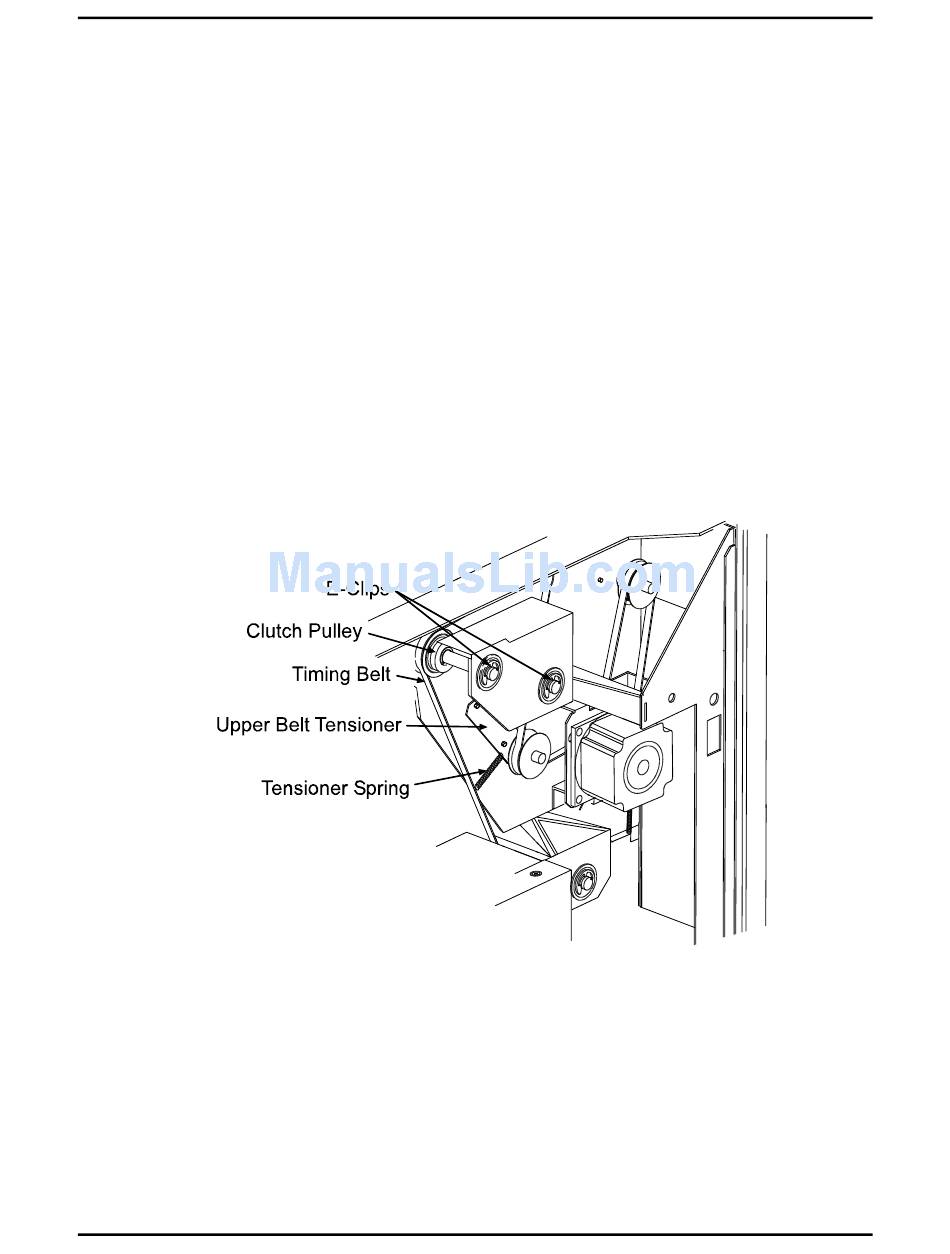

3. Disengage the Timing Belt by loosening the two screws on the Upper Belt Tensioner and removing
the Tensioner Spring.
