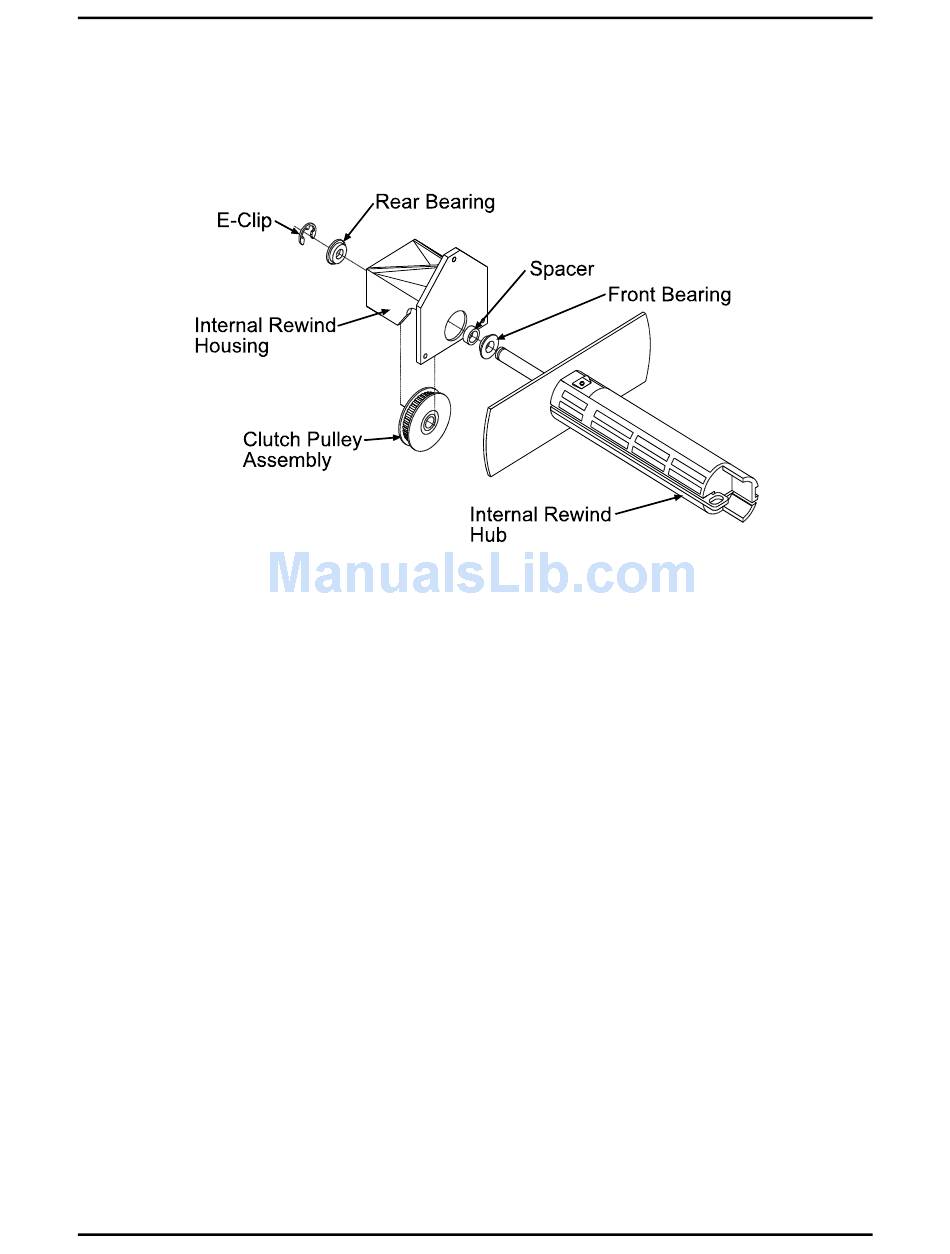

8. Loosen the setscrews securing the Clutch Pulley Assembly to the shaft. Remove the E-Clip to
separate the Internal Rewind Hub, Front and Rear Bearings, Clutch Pulley, and Spacer from the
Internal Rewind Housing.
Replacement:
1. Slide the Front Bearing and Spacer onto the Internal Rewind Hub Shaft.
2. Insert the Internal Rewind Hub partially into the Internal Rewind Housing and slide on the Clutch
Pulley Assembly.
3. Slide the Internal Rewind Hub on through the Internal Rewind Housing, replace the Rear Bearing and
secure in place with the E-Clip.
4. Position the Clutch Pulley Assembly set screws over the flats in the shaft and tighten to secure.
5. Reposition the Internal Rewind Hub in the chassis.
6. While holding the Internal Rewind Hub in place, rotate and replace each of the three Screws (the
longer screw goes in the lower left hole), and tighten to secure.
