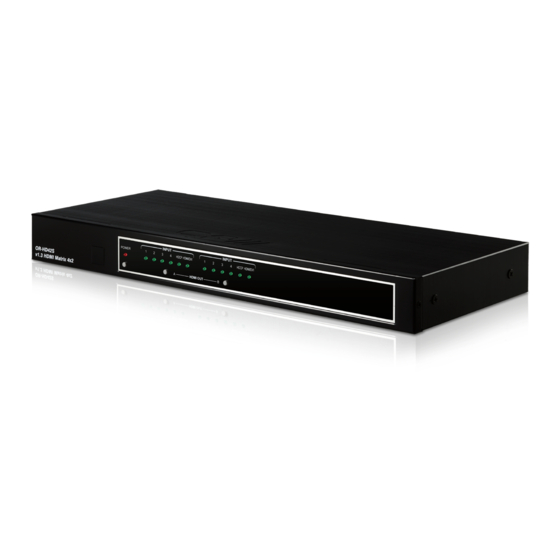

- Page 1 OR-HD42S v1.3 HDMI 4 x 2 Matrix Switcher OPERATION MANUAL...
- Page 2 Precautions Failure to follow the precautions described below may cause damage to this v1.3 HDMI Matrix and void the warranty. • DO NOT open the case. This will void the warranty, if you find a problem with this product, please return it to your retailer or seller who will assist you or provide you with a solution.
-
Page 3: Table Of Contents
Table of Contents Introduction Application Package Contents System Requirements Features Operation Controls and Functions Rear Panel Front Panel Remote Control RS-232 Protocol Command Sets Connection Diagram Specifications Finden Sie ab Seite 9. -
Page 4: Introduction
1. Introduction Thank you for purchasing this HDMI V1.3 Matrix. As HDMI products become increasingly popular, users often have multiple HDMI sources and displays. This HDMI matrix provides an excellent and convenient solution for connecting all of your HDMI equipment. You can select which source to view on each display using the remote control. -
Page 5: System Requirements
4. System Requirements HDMI source device(s) and HDMI display device(s). 5. Features • HDMI 1.3, HDCP 1.1 and DVI 1.0 compliant. • Supports digital video formats in Deep Color 12bit and new lossless digital audio (Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio). •... -
Page 6: Operation Controls And Functions
6. Operation Controls and Functions 6.1 Rear Panel RS-232 DC 5V HDMI INPUT HDMI OUTPUT EDID 1. EDID Control Switch: EDID Control Switch setting is either: STD(internal) or TV(external)* 2. RS-232 communication port: Connect to the COM (serial) port of your PC or control device for control over settings via RS-232. -
Page 7: Front Panel
6.2 Front Panel POWER HDCP HDMI/DVI HDCP HDMI/DVI HDMI OUT 1. Remote control sensor 2. Power button & LED Indicator: Press the button to turn the unit on/off. The LED lights green when power is on and red when the power is off. 3. -
Page 8: Remote Control
7. Remote Control 1. Power: Press the button to turn the unit POWER off/on. 2. Input Select for HDMI OUT ‘A’: Press 1, 2, 3 OUTPUT or 4 to select the required input source for HDMI OUT A. OUTPUT 3. Input Select for HDMI OUT ‘B’: Press 1, 2, 3 or 4 to select the required input source OUTPUT for HDMI OUT B. -
Page 9: Rs-232 Protocol
8. RS-232 Protocol OR-HD24S Remote Control Console Definition Definition → ← Baud Rate: 9600bps Data bit: 8bits Parity: None Stop bit: 1bit Flow Control: None Page 6... -
Page 10: Command Sets
8.1 Command Sets COMMAND ACTION POWER 00 Power Off (standby) POWER 01 Power On PORT 11 Output A select Input 1 PORT 12 Output A select Input 2 PORT 13 (No Function) Output A select Input 3 PORT 14 (No Function) Output A select Input 4 PORT 21 Output B select Input 1... -
Page 11: Connection Diagram
9. Connection Diagram Page 8... -
Page 12: Specifications
10. Specifications Frequency bandwidth 2.25Gbps (single link) Input ports 4 x HDMI female ports, Output ports 2 x HDMI female ports EDID Standard, TV/Moving Port 1 PCM2, PCM5.1, PCM7.1, Dolby5.1, DTS5.1, Dolby Digital+, Dolby HDMI Audio output TrueHD, DTS-HD HDMI Cable in 1080p 8bit (10M), 1080p 12bit (10M) HDMI Cable out 1080p 8bit (10M), 1080p 12bit (6M) - Page 13 Notes: Page 10...
- Page 14 www.cypeurope.com...
