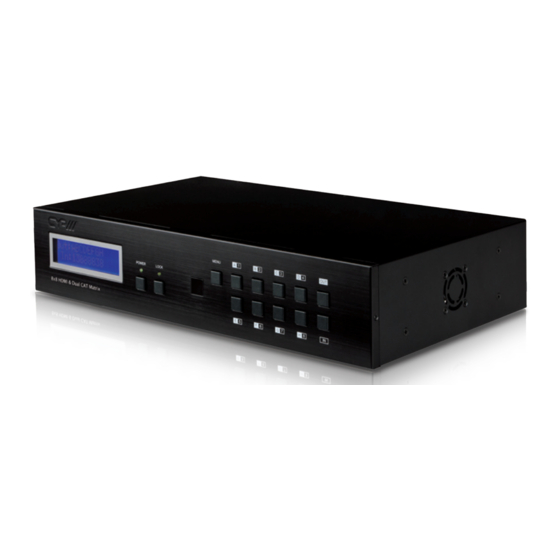

- Page 1 OR-HD88HC v1.4 HDMI 8 x 8 Matrix Switcher withsimultaneous HDMI & CAT Outputs (inc. IR) OPERATION MANUAL...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 4: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
CONTENTS 1. Introduction ...........6 2. Applications ...........6 3. Package Contents ........6 4. System Requirements ......6 5. Features ..........7 6. Operation Controls and Functions ..8 6.1 Front Panel ........... 8 6.2 Rear Panel ............. 9 6.3 Side Panel ...........10 6.4 Remote Control ........10 6.5 IR Cable Pin Assignment .......11 6.6 RS-232 Pin Assignment......12 6.7 RS-232 and Telnet Commands ....13... -
Page 6: Introduction
1. INTRODUCTION The OR-HD88HC Matrix Switcher connects eight HDMI sources to 16 displays. This matrix features 8 HDMI outputs and each HDMI output is mirrored to provide a Twin CAT output which runs simultaneously. Connect a PU-1106RX Receiver to each of the Twin CAT outputs to extend the HDMI signal up to 45m for multi-room connectivity.This matrix... -
Page 7: Features
5. FEATURES HDMI, HDCP 1.1, DVI 1.0 compliant Resolutions supported: PC - VGA to WUXGA ; HDTV - 480i to 1080p plus 1080p24fps High Definition audio supported: Dolby TrueHD, Dolby Digital Plus, DTS-HD Master Audio + LPCM The HDMI input is compensated, clock / phase adjusted, and jitter eliminated so the output is a brand new standard HDMI signal running up to 15m at 1080p RS-232, CEC Command functionality, IR Remote Control, and IR... -
Page 8: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel MENU POWER LOCK LCM: Displays the setting information of each input and output setting. POWER: Press this button to power the device on/off. The LED will illuminate green when the power is on, red when it is in 'Standby' mode. -
Page 9: Rear Panel
6.2 Rear Panel OUTPUT A OUTPUT B OUTPUT C OUTPUT D OUTPUT E OUTPUT F OUTPUT G OUTPUT H HDMI HDMI HDMI HDMI HDMI HDMI HDMI IR IN DC 24V HDMI IN HDMI IN HDMI IN HDMI IN HDMI IN HDMI IN HDMI IN HDMI IN... -
Page 10: Side Panel
6.3 Side Panel Fan Ventilator: These are air ventilation areas, DO NOT block these areas or cover it with any object. Please allow adequate space around the unit for air circulation. 6.4 Remote Control POWER: Press this button to switch on the device or set it to standby mode. -
Page 11: Ir Cable Pin Assignment
6.5 IR Cable Pin Assignment IR Emitter Power 5 V IR Emitter Signal IR Receiver IR Signal Power 5 V Grounding... -
Page 12: Rs-232 Pin Assignment
6.6 RS-232 Pin Assignment OR-HD88HC Remote Control Console Assignment Assignment ► ◄ Baud Rate: 19200 bps Data Bit: 8-bit Parity: None Stop Bit: 1-bit Flow Control: None... -
Page 13: Rs-232 And Telnet Commands
6.7 RS-232 and Telnet Commands Command Description A1~A8 Switch Output A to 1~8 B1~B8 Switch Output B to 1~8 C1~C8 Switch Output C to 1~8 D1~D8 Switch Output D to 1~8 E1~E8 Switch Output E to 1~8 F1~F8 Switch Output F to 1~8 G1~G8 Switch Output G to 1~8 H1~H8... -
Page 14: Telnet Control
6.8 Telnet Control Before attempting to use the telnet control, please ensure that both the Matrix (via the 'LAN /CONTROL' port) and the PC/Laptop are connected to active networks. Note: Please do not connect both the Matrix and the PC/Laptop with a single CAT5e/6 cable as it will not access the telnet function. To access the telnet control in Windows 7, click on the 'Start' menu and type "cmd"... - Page 15 Once in the command line interface (CLI) type "telnet", a space, then the IP address of the unit you wish to control, a space and "23", then hit enter. Note: The IP address of the Matrix can be displayed on the device's LCM monitor by pressing the Menu button twice. This will bring us into the device which we wish to control. Type "HELP" to list the available commands.
-
Page 16: Web Gui Control
6.9 Web GUI Control On a PC/Laptop that is connected to an active network, open a web browser and type the Matrix's IP address on the web address entry bar. The browser will display the device's status, control and User setting pages. - Page 17 Click on the 'User Setting' tab allows you to reset the IP configuration. The system will ask for a reboot of the device every time any of the settings are changed. The IP address needed to access the Web GUI control will also need to be changed accordingly on the web address entry bar.
-
Page 18: Connection Diagram
7. CONNECTION DIAGRAM ZONE ZONE ZONE ZONE VIDEO VIDEO VIDEO VIDEO VIDEO CAT6 INPUT CAT6 INPUT CAT6 INPUT CAT6 INPUT IR Input 1.5m OUTPUT A OUTPUT B OUTPUT C OUTPUT D OUTPUT E OUTPUT F 60° 60° HDMI VIDEO HDMI VIDEO HDMI VIDEO... - Page 19 ZONE ZONE ZONE Displays HDMI Outputs IR Receivers Receiver Units VIDEO VIDEO VIDEO CAT6 INPUT CAT6 INPUT CAT6 INPUT CAT6 INPUT Dual CAT6 Cables 45 m OUTPUT G OUTPUT H HDMI VIDEO HDMI VIDEO Main Power Supply DC 24V HDMI IN HDMI IN HDMI Outputs IR Outputs...
-
Page 20: Specifications
8. SPECIFICATIONS VIDEO BANDWIDTH 255 MHZ/6.75 GBPS INPUT PORTS 8×HDMI, 1×IR RECEIVER, 1×RS-232, 1×MINI USB TYPE B (FOR FIRMWARE UPDATE ONLY) OUTPUT PORTS 8×DUAL CAT6, 8×IR EMITTER, 8×HDMI HDMI INPUT CABLE 15M/8-BIT, 10M/12-BIT DISTANCE HDMI OUTPUT CABLE 15M/8-BIT, 15M/12-BIT DISTANCE CAT6 CABLE DISTANCE 45M/8-BIT ESD PROTECTION... -
Page 21: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM Digital Theater Systems Digital Visual Interface EDID Extended Display Identification Data HDCP High-bandwidth Digital Content Protectionl HDMI High-Definition Multimedia Interface HDTV High-Definition Television Liquid Crystal Monitor Universal Serial Bus UXGA Ultra Extended Graphics Array Video Graphics Array... - Page 24 CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton, Middlesex, TW17 8BA Tel: +44 (0) 20 3137 9180 | Fax: +44 (0) 20 3137 6279 Email: sales@cypeurope.com www.cypeurope.com v1.01...
