SSID (to be bridged) - The SSID of the AP your router is going to connect to as a client.

You can also use the search function to select the SSID to join.
MAC Address (to be bridged) - The BSSID of the AP your router is going to connect to

as a client. You can also use the search function to select the BSSID to join.
Survey - Click this button, you can search the AP which runs in the current channel.

Key type - This option should be chosen according to the AP's security configuration. It

is recommended that the security type is the same as your AP's security type
WEP Index - This option should be chosen if the key type is WEP(ASCII) or WEP(HEX).

It indicates the index of the WEP key.
Auth Type - This option should be chosen if the key type is WEP(ASCII) or WEP(HEX).

It indicates the authorization type of the Root AP.
Password - If the AP your router is going to connect needs password, you need to fill

the password in this blank.
4.6.2

WPS

Choose menu "Wireless 2.4GHz →WPS", you can the screen as shown in Figure 4-16. This
section will guide you to add a new wireless device to an existing network quickly by WPS (Wi-Fi
Protected Setup) function.
Archer C5 AC1200 Wireless Dual Band Gigabit Router

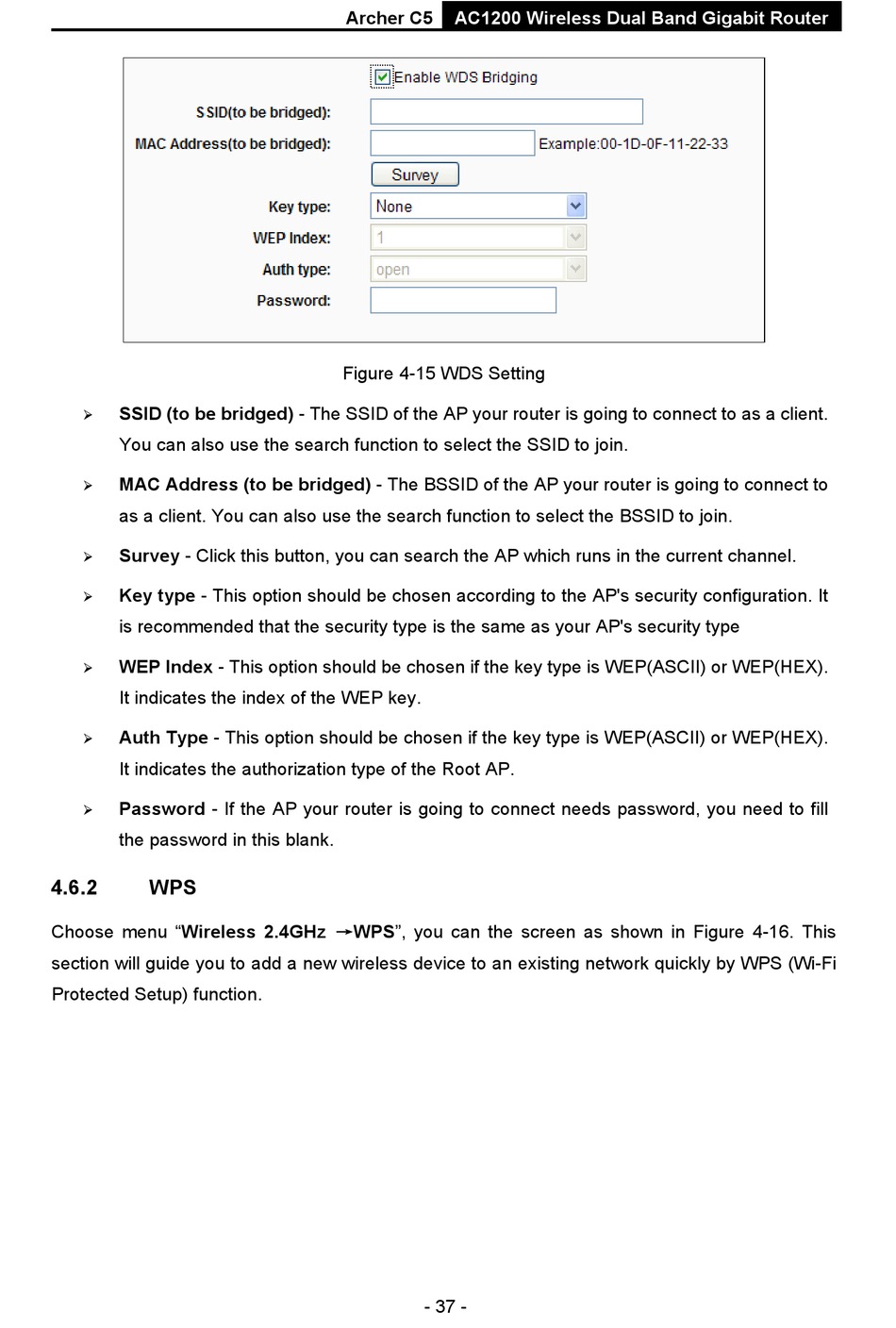

Figure 4-15 WDS Setting
- 37 -
