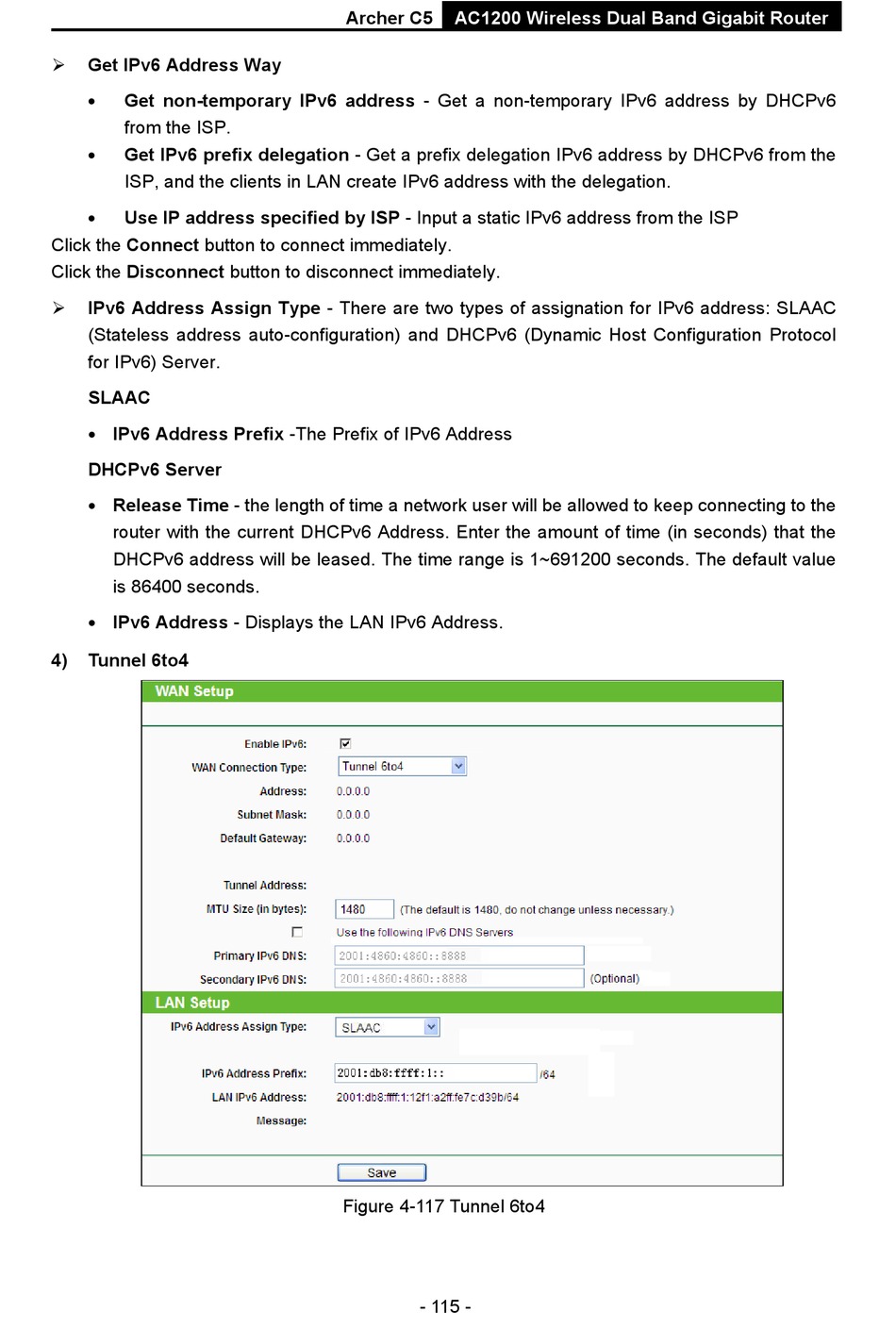

TP-Link Archer C5 AC1200 User Manual page 125

Get IPv6 Address Way

Get non-temporary IPv6 address - Get a non-temporary IPv6 address by DHCPv6
•
from the ISP.
Get IPv6 prefix delegation - Get a prefix delegation IPv6 address by DHCPv6 from the
•
ISP, and the clients in LAN create IPv6 address with the delegation.
Use IP address specified by ISP - Input a static IPv6 address from the ISP
•
Click the Connect button to connect immediately.
Click the Disconnect button to disconnect immediately.
IPv6 Address Assign Type - There are two types of assignation for IPv6 address: SLAAC

(Stateless address auto-configuration) and DHCPv6 (Dynamic Host Configuration Protocol
for IPv6) Server.
SLAAC
• IPv6 Address Prefix -The Prefix of IPv6 Address
DHCPv6 Server
• Release Time - the length of time a network user will be allowed to keep connecting to the
router with the current DHCPv6 Address. Enter the amount of time (in seconds) that the
DHCPv6 address will be leased. The time range is 1~691200 seconds. The default value
is 86400 seconds.
• IPv6 Address - Displays the LAN IPv6 Address.
4) Tunnel 6to4
Archer C5 AC1200 Wireless Dual Band Gigabit Router
Figure 4-117 Tunnel 6to4
- 115 -
