Target - TP-Link Archer C5 AC1200 User Manual

For example: If you desire to restrict the internet activities of host with MAC address
00-11-22-33-44-AA, you should first follow the settings below:
1. Click Add New... button in Figure 4-87 to enter the Add or Modify a Host Entry page.
2. In Mode field, select MAC Address from the drop-down list.
3. In Host Description field, create a unique description for the host (e.g. Host_1).
In MAC Address field, enter 00-11-22-33-44-AA.
4.
5. Click Save to complete the settings.
Then you will go back to the Host Settings page and see the following list.
4.15.3

Target

Choose menu "Access Control → Target", and then you can view and set a Target list in the
screen as shown in Figure 4-90. The target list is necessary for the Access Control Rule.
 Target Description - Here displays the description about the target and this description is
unique.
 Information - The target can be IP address, port, or domain name.
 Modify - To modify or delete an existing entry.
Archer C5

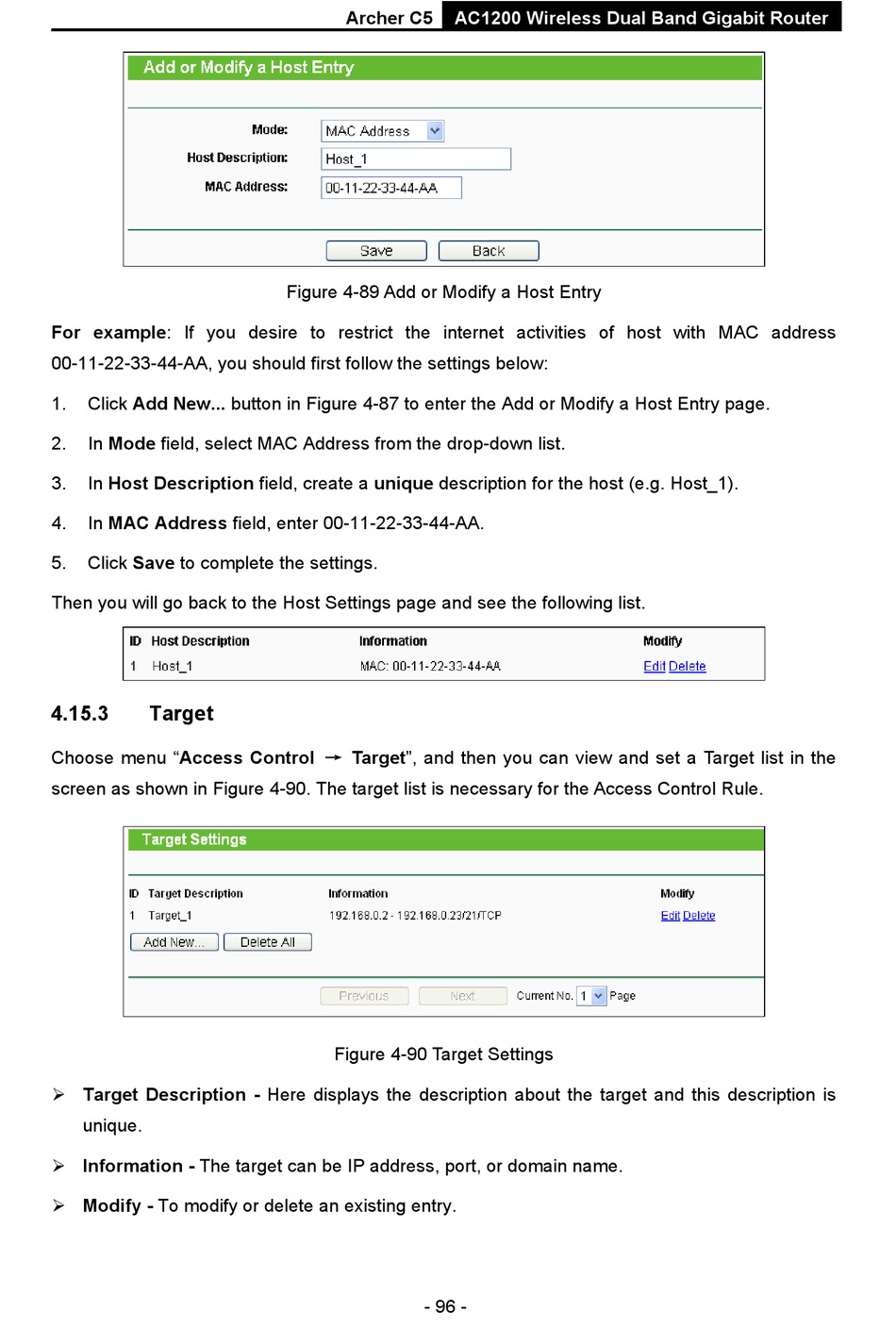

Figure 4-89 Add or Modify a Host Entry
Figure 4-90 Target Settings
- 96 -
AC1200 Wireless Dual Band Gigabit Router
