TP-Link Archer C5 AC1200 User Manual page 52

• Radius Server IP - Enter the IP address of the Radius server.
• Radius Port - Enter the port number of the Radius server.
• Radius Password - Enter the password for the Radius server.
• Group Key Update Period - Specify the group key update interval in seconds. The value
should be 30 or above. Enter 0 to disable the update.
WEP - It is based on the IEEE 802.11 standard. If you check this radio button, you will find a

notice in red as show in Figure 4-23.
• Type - you can choose the type for the WEP security on the drop-down list. The default
setting is Automatic, which can select Shared Key or Open System authentication type
automatically based on the wireless station's capability and request.
• WEP Key Format - Hexadecimal and ASCII formats are provided here
format stands for any combination of hexadecimal digits (0-9, a-f, A-F) in the specified
length. ASCII format stands for any combination of keyboard characters in the specified
length.
• WEP Key - Select which of the four keys will be used and enter the matching WEP key that
you create. Make sure these values are identical on all wireless stations in your network.
Archer C5 AC1200 Wireless Dual Band Gigabit Router

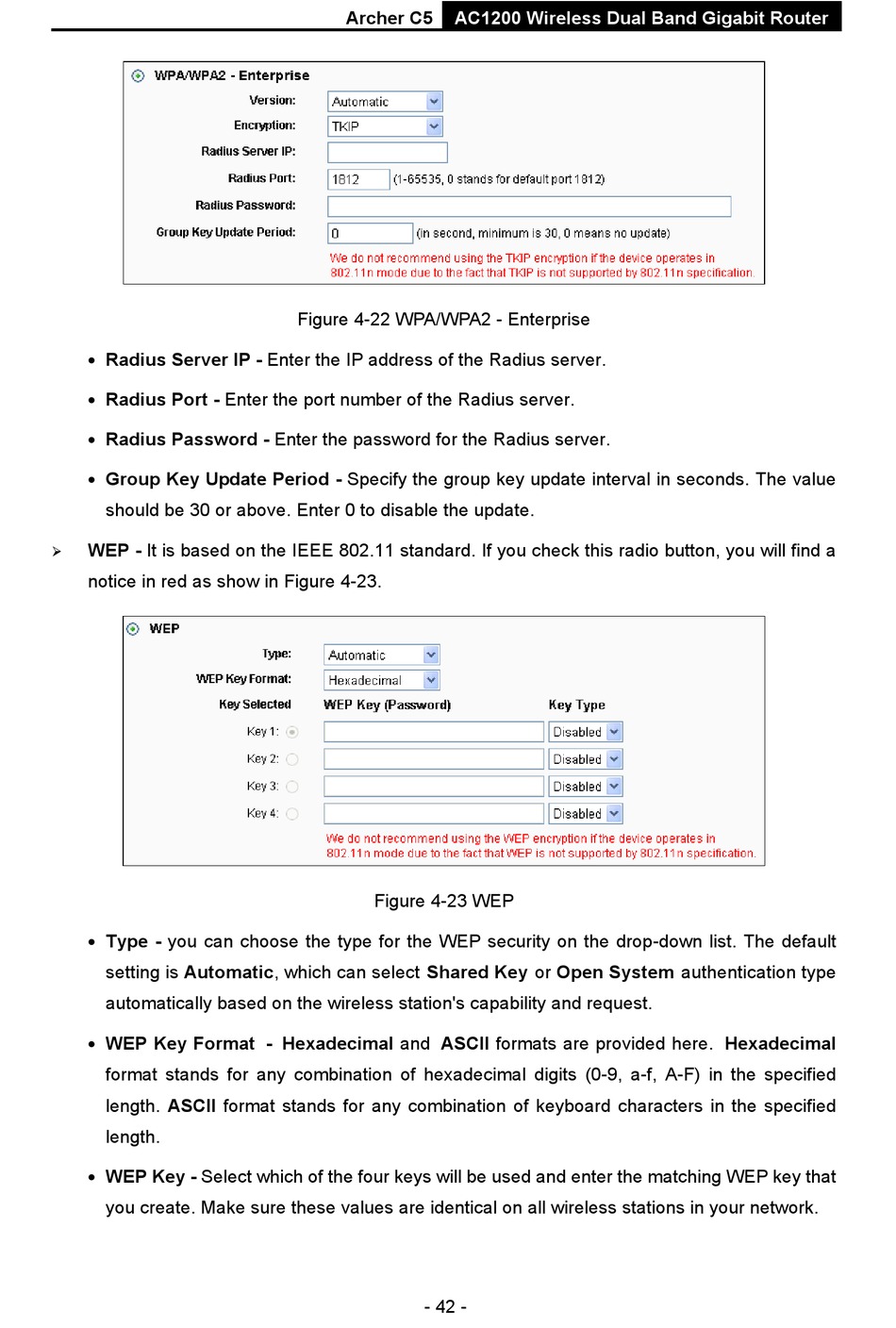

Figure 4-22 WPA/WPA2 - Enterprise
Figure 4-23 WEP
- 42 -
.
Hexadecimal
