Auto Mail Feature - Indicates whether auto mail feature is enabled or not.
Mail Settings - Set the receiving and sending mailbox address, server address, validation
information as well as the timetable for Auto Mail Feature, as shown in Figure 4-129.
From - Your mail box address. The router would connect it to send logs.
•
To - Recipient's address. The destination mailbox where the logs would be received.
•
SMTP Server - Your smtp server. It corresponds with the mailbox filled in the From field.
•
You can log on the relevant website for help if you are not clear with the address.
Authentication - Most SMTP Server requires Authentication. It is required by most
•
mailboxes that need User Name and Password to log in.
Archer C5
AC1200 Wireless Dual Band Gigabit Router

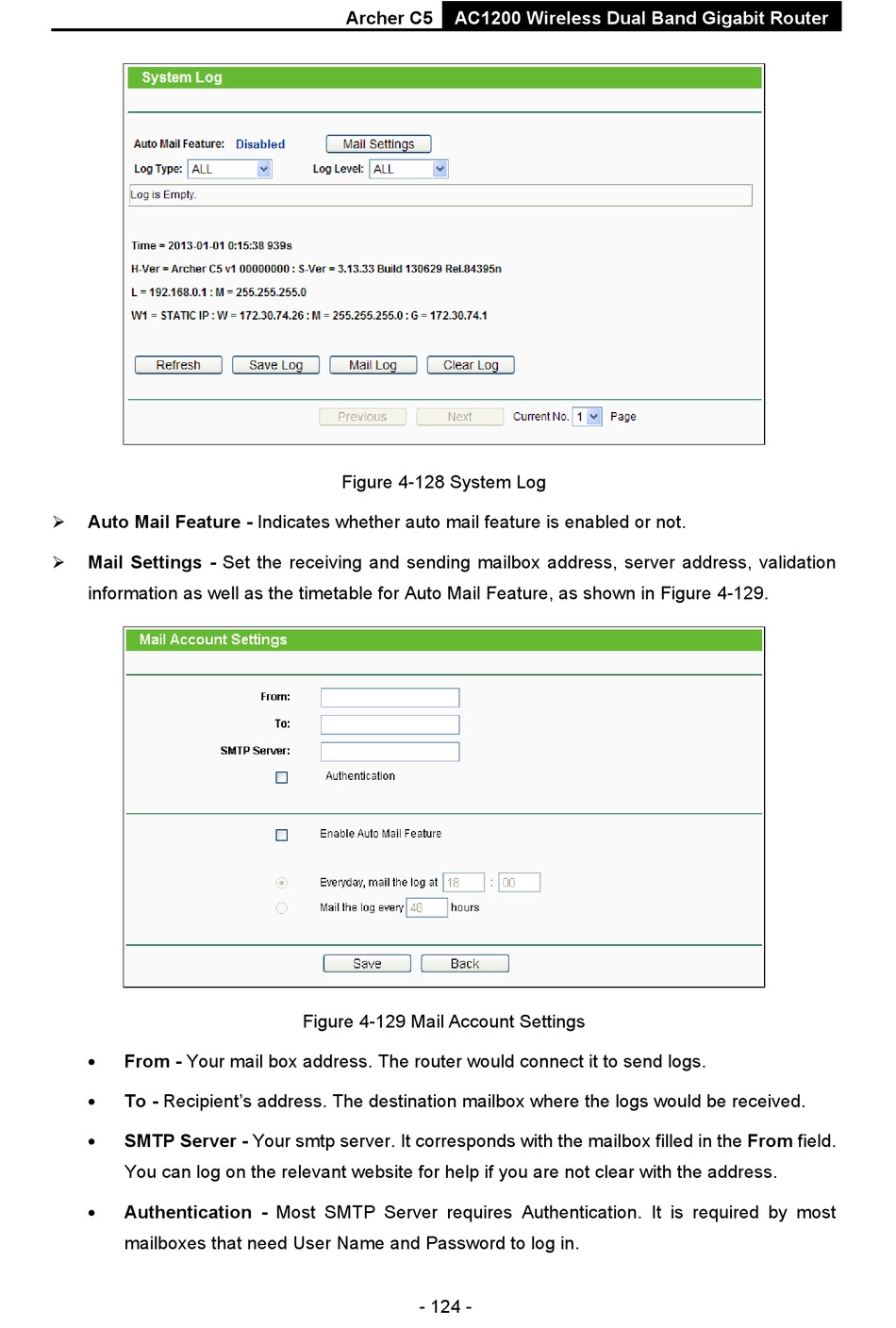

Figure 4-128 System Log
Figure 4-129 Mail Account Settings
- 124 -
