Click the Delete All button to delete all entries.
Click the Next button to go to the next page and Click the Previous button to return the previous
page.

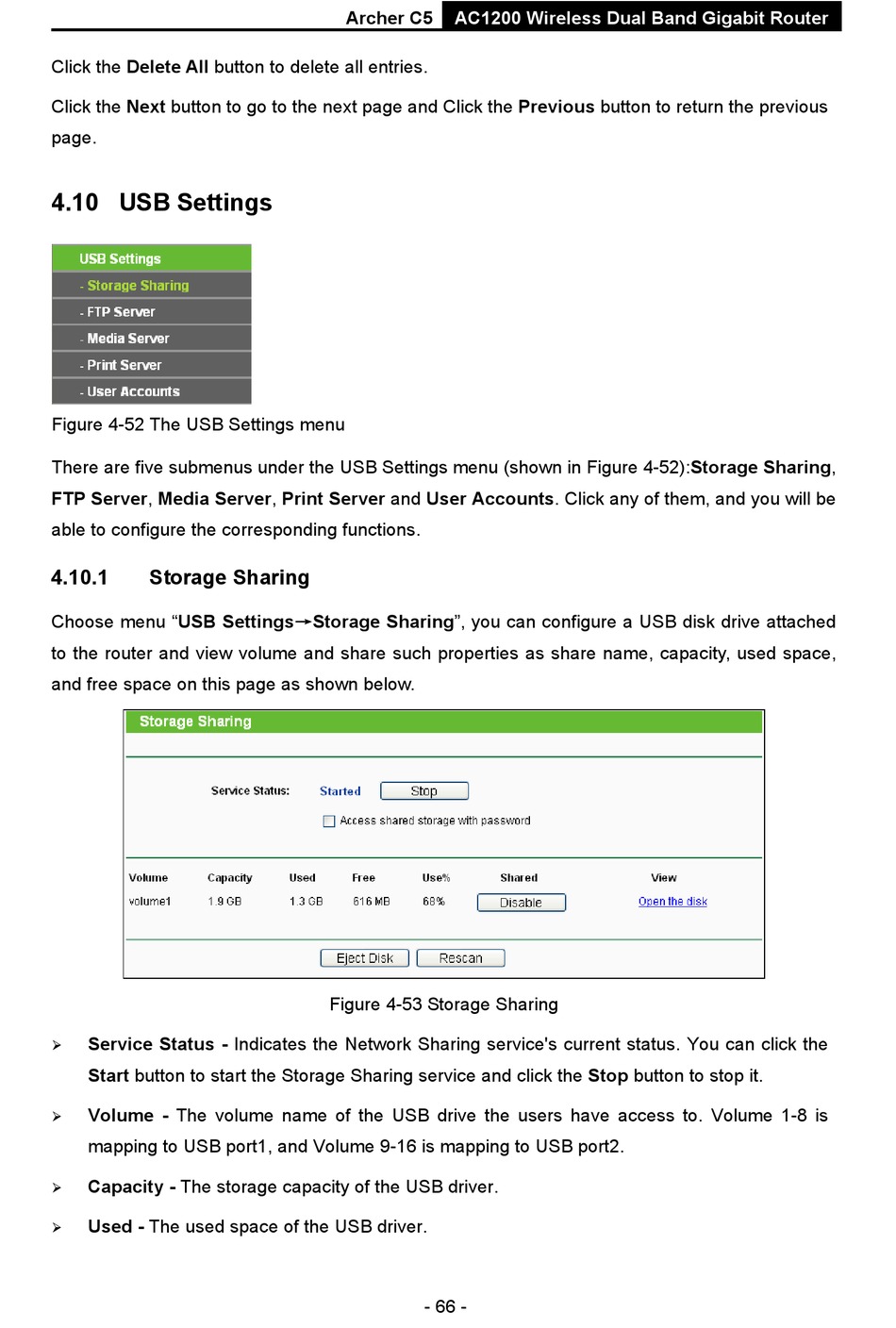

4.10 USB Settings

Figure 4-52 The USB Settings menu
There are five submenus under the USB Settings menu (shown in Figure 4-52):Storage Sharing,
FTP Server, Media Server, Print Server and User Accounts. Click any of them, and you will be
able to configure the corresponding functions.
4.10.1

Storage Sharing

Choose menu "USB Settings→Storage Sharing", you can configure a USB disk drive attached
to the router and view volume and share such properties as share name, capacity, used space,
and free space on this page as shown below.
Service Status - Indicates the Network Sharing service's current status. You can click the

Start button to start the Storage Sharing service and click the Stop button to stop it.
Volume - The volume name of the USB drive the users have access to. Volume 1-8 is

mapping to USB port1, and Volume 9-16 is mapping to USB port2.
Capacity - The storage capacity of the USB driver.

Used - The used space of the USB driver.

Archer C5 AC1200 Wireless Dual Band Gigabit Router
Figure 4-53 Storage Sharing
- 66 -
