Ip & Mac Binding; Binding Settings - TP-Link Archer C5 AC1200 User Manual

Click Add New... shown in Figure 4-101, you will see a new screen shown in Figure 4-102.
1.
2. Enter the information like the screen shown below.
3. Click the Save button.
4.18 IP & MAC Binding
Figure 4-103 the IP & MAC Binding menu
There are two submenus under the IP &MAC Binding menu (shown in Figure 4-103): Binding
Settings and ARP List. Click any of them, and you will be able to scan or configure the
corresponding function. The detailed explanations for each submenu are provided below.
4.18.1

Binding Settings

This page displays the IP & MAC Binding Setting table; you can operate it in accord with your
desire (shown in Figure 4-104).
Archer C5

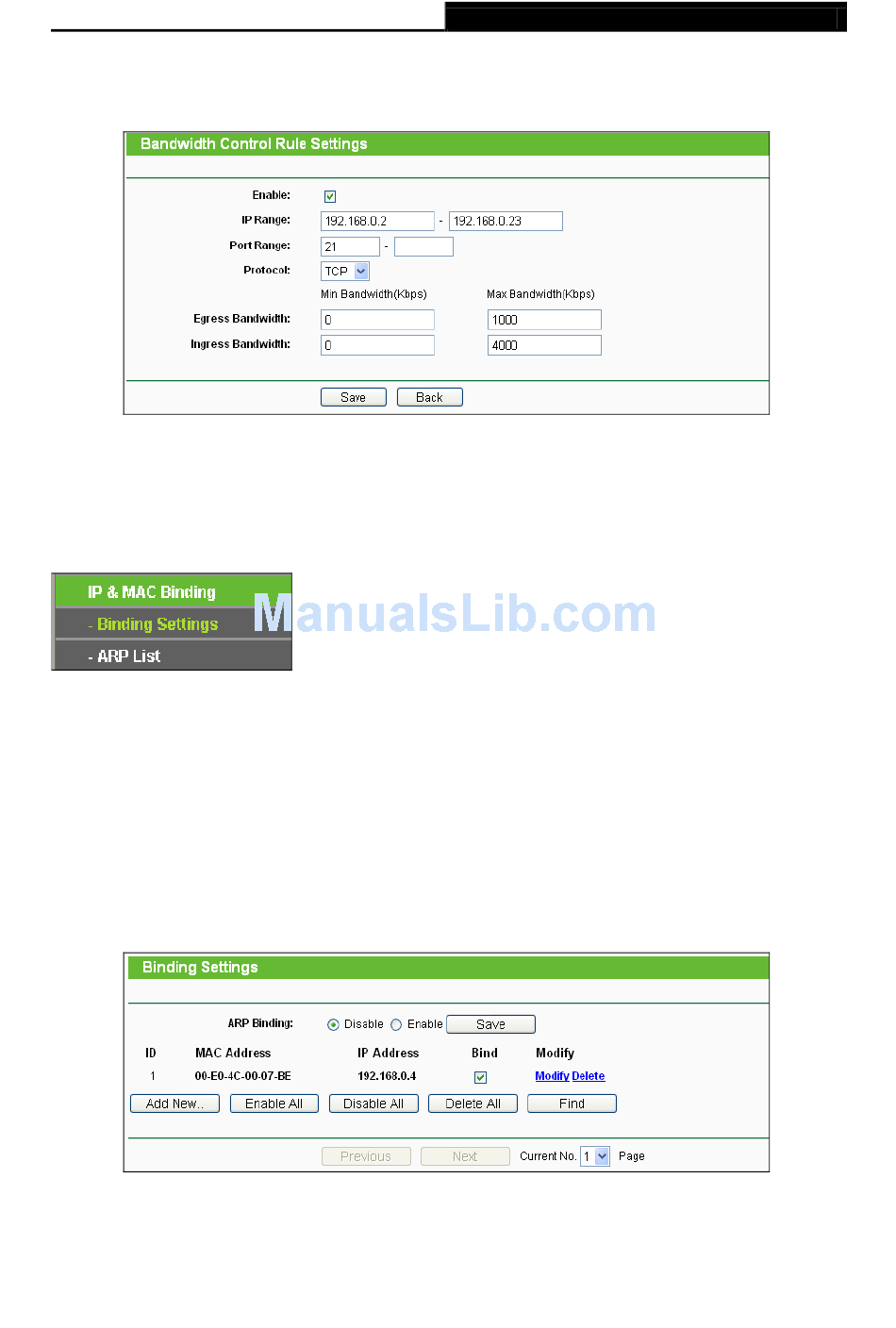

Figure 4-102 Bandwidth Control Rule Settings
Figure 4-104 Binding Setting
- 104 -
AC1200 Wireless Dual Band Gigabit Router
