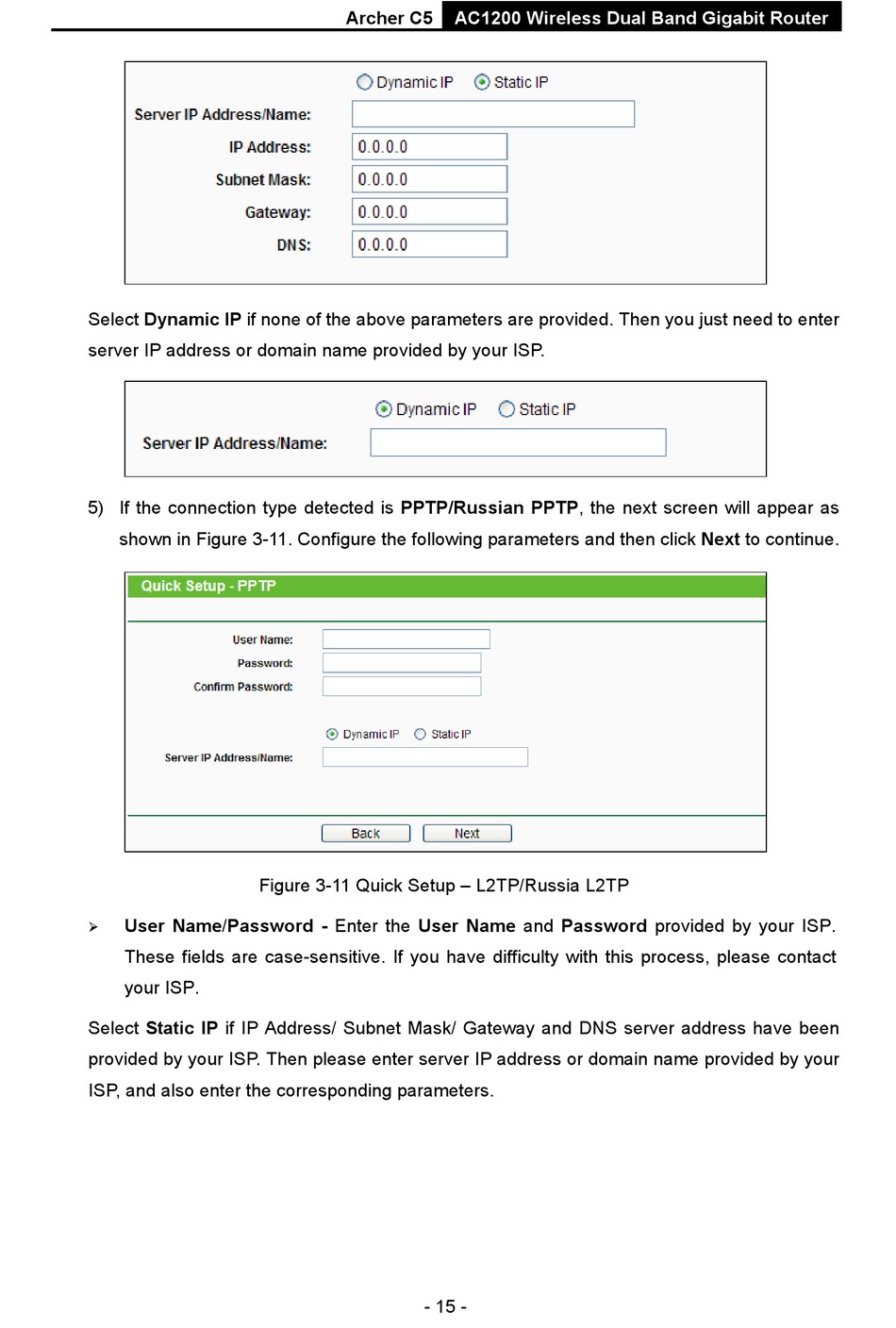

Select Dynamic IP if none of the above parameters are provided. Then you just need to enter
server IP address or domain name provided by your ISP.
5) If the connection type detected is PPTP/Russian PPTP, the next screen will appear as
shown in Figure 3-11. Configure the following parameters and then click Next to continue.
User Name/Password - Enter the User Name and Password provided by your ISP.
These fields are case-sensitive. If you have difficulty with this process, please contact
your ISP.
Select Static IP if IP Address/ Subnet Mask/ Gateway and DNS server address have been
provided by your ISP. Then please enter server IP address or domain name provided by your
ISP, and also enter the corresponding parameters.
Archer C5
Figure 3-11 Quick Setup – L2TP/Russia L2TP
- 15 -
AC1200 Wireless Dual Band Gigabit Router
