4.4
Network

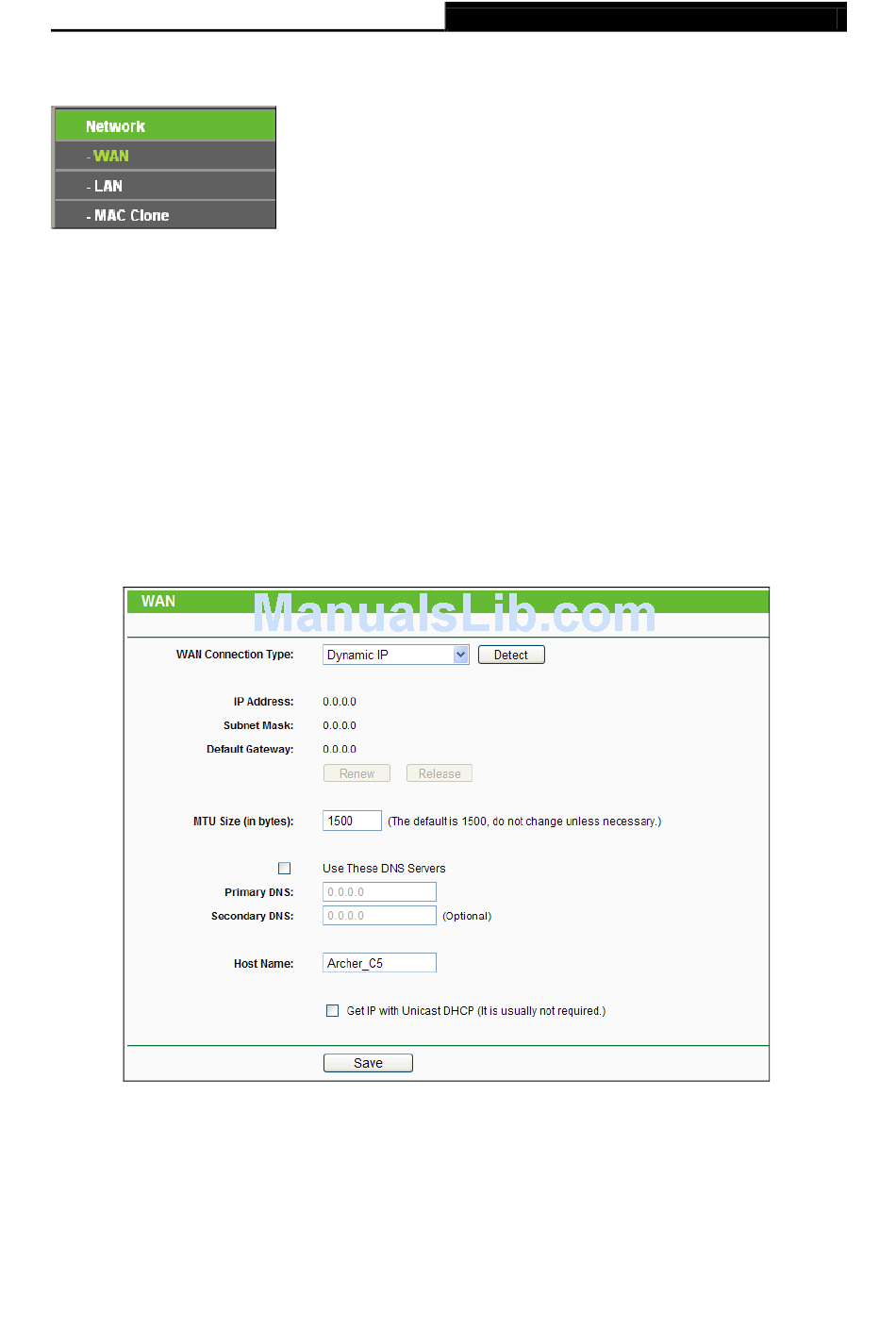

Figure 4-2 the Network menu
There are three submenus under the Network menu (shown in Figure 4-2): WAN, LAN and MAC
Clone. Click any of them, and you will be able to configure the corresponding function.
4.4.1
WAN
Choose menu "Network → WAN", you can configure the IP parameters of the WAN on the
screen below.
1.
If your ISP provides the DHCP service, please choose Dynamic IP type, and the router will
automatically get IP parameters from your ISP. You can see the page as follows (Figure
4-3):
This page displays the WAN IP parameters assigned dynamically by your ISP, including IP
address, Subnet Mask, Default Gateway, etc. Click the Renew button to renew the IP
parameters from your ISP. Click the Release button to release the IP parameters.
Archer C5
AC1200 Wireless Dual Band Gigabit Router
Figure 4-3 WAN – Dynamic IP
- 23 -
