TP-Link Archer C50 Quick Installation Manual

Quick Installation Guide

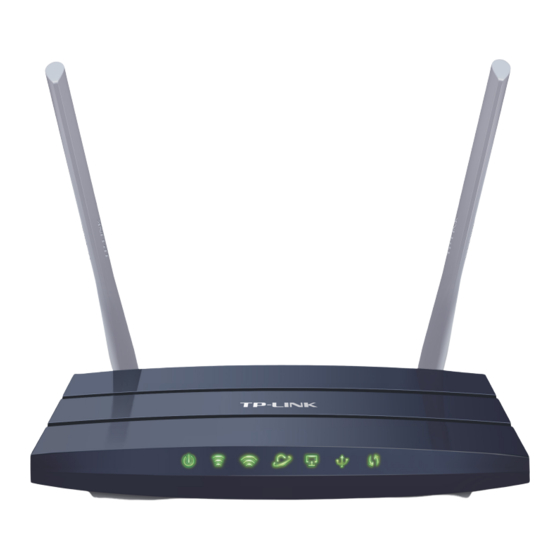

AC1200 Wireless Dual Band Router

Connect the Hardware

If your Internet connection is through an Ethernet cable from the wall
instead of through a DSL / Cable / Satellite modem, connect the Ethernet
cable directly to the router's Internet port, then follow steps 4 and 5 to
complete the hardware connection.
Internet
Power adapter Modem
Router
Router
1
Turn o the modem,
and remove the backup
battery if it has one.
2
Connect the modem to the
Internet port on your router
with an Ethernet cable.
3
Turn on the modem, and
then wait about 2 minutes
for it to restart.
Power adapter
4
Turn on the router.
5
Verify that the hardware
connection is correct by
checking these LEDs.
Power 2.4G 5G Internet
On On
On On
Note: If the 2.4G LED and 5G LED
are o , please press the Wi-Fi button
on the rear panel for 2 seconds, then
check the LEDs again in a few seconds.
