TP-Link Archer C50 Quick Installation Manual

Quick Installation Guide

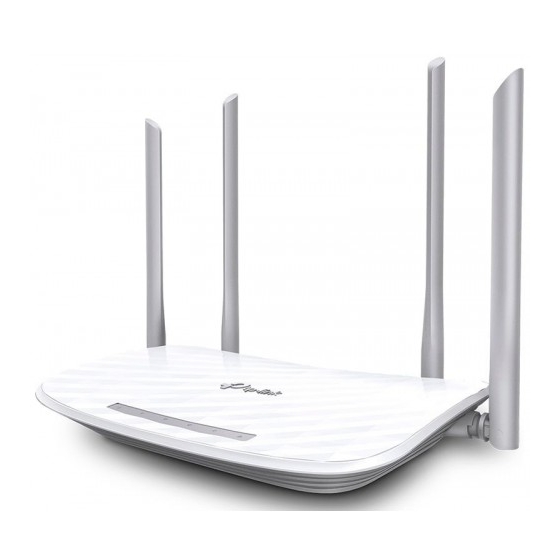

AC1200 Wireless Dual Band Router
C50

Connect the Hardware

If your internet connection is through an Ethernet cable directly from the
wall instead of through a DSL / Cable / Satellite modem, connect the
Ethernet cable to the router's Internet port, and follow Step 4 and 5 to
complete the hardware connection.
Internet
Power adapter Modem
Power adapter
1
Turn off the modem,
and remove the backup
battery if it has one.
2
Connect the modem to the
router's Internet port with
an Ethernet cable.
3
Turn on the modem, and
then wait about 2 minutes
for it to restart.
Router
5
Verify that the following LEDs are
on and solid to confirm the
hardware is connected correctly.
Power Internet
2.4G 5G
On On
On On
Note: If the 2.4G LED and 5G LED
off, please press and hold the WPS/Wi-Fi
On/Off button on the rear panel for about 3
seconds to turn them on.
4
Connect the power adapter
to the router and turn on
the router.
are
