Connect Manually - You can click the Connect/Disconnect button to connect/disconnect

immediately. This mode also supports the Max Idle Time function as Connect on Demand
mode. The Internet connection can be disconnected automatically after a specified inactivity
period and re-established when you attempt to access the Internet again.
Click the Connect button to connect immediately. Click the Disconnect button to disconnect
immediately.
Caution: Sometimes the connection cannot be terminated although you specify a time to Max Idle
Time because some applications are visiting the Internet continually in the background.
Click the Save button to save your settings.
5. If your ISP provides L2TP connection, please select L2TP/Russia L2TP option. And you
should enter the following parameters (Figure 4-8):
User Name/Password - Enter the User Name and Password provided by your ISP. These

fields are case-sensitive.
Archer C5 AC1200 Wireless Dual Band Gigabit Router

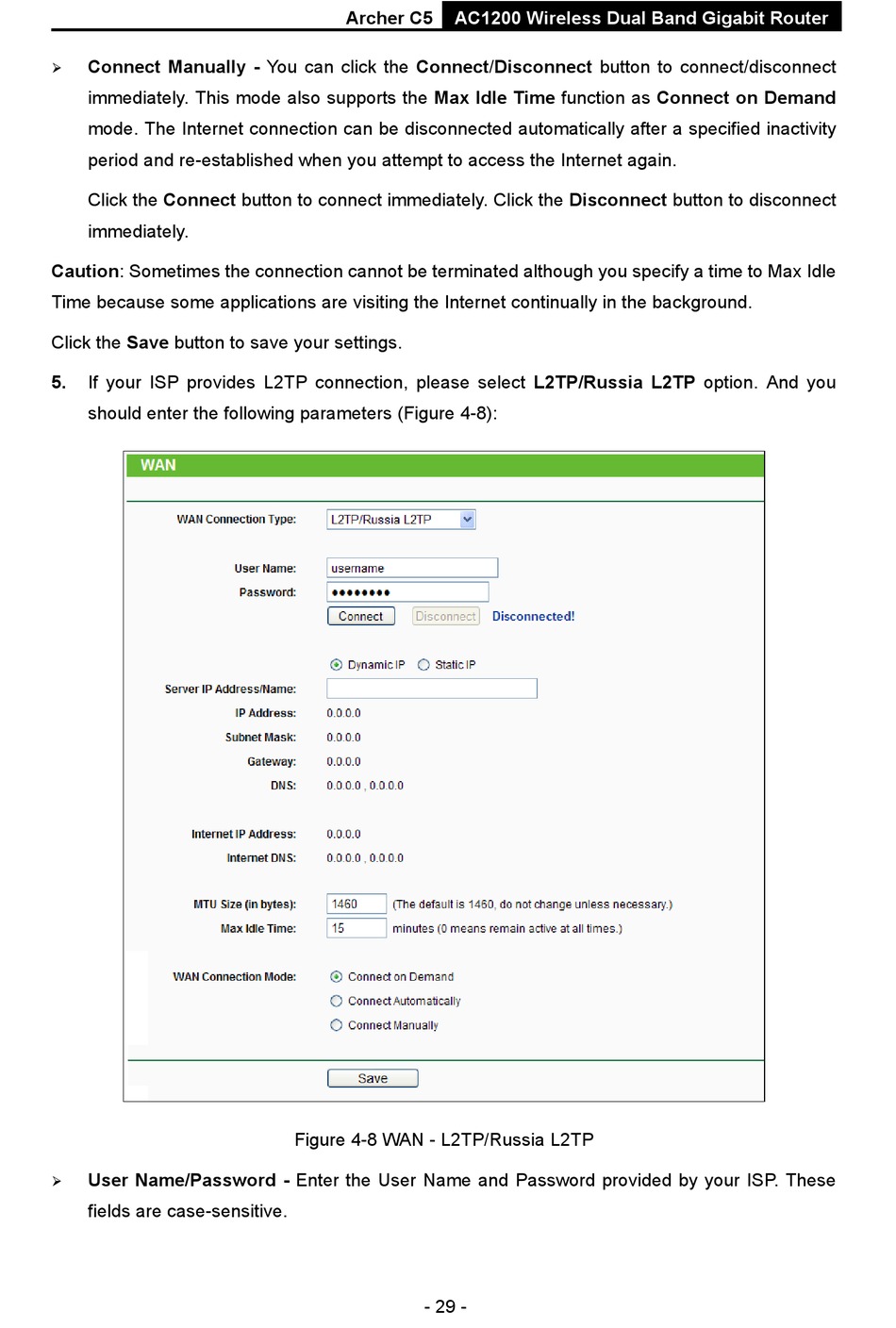

Figure 4-8 WAN - L2TP/Russia L2TP
- 29 -
