Use

Multi-Use Charger

The MSA Multi-Use Charger may be used to simultaneously charge up to two spare
Evolution 6000 TIC batteries. This charger is supplied with a 120/240 VAC universal power adapt-
er and a 12 V automotive lighter/power outlet cable for mobile use. See Multi-Use Charger instruc-
tions for complete details.
To charge a spare battery:
(1)
Ensure that camera battery adaptor insert (supplied with Multi-Use charger) is properly in-
serted in the Multi-Use Charger nest (Fig. 12).
Failure to insert the camera battery adaptor may lead to misalignment and damage to the charg-
ing connector on the pack and on the charger.
(2)
Ensure that charge indicator light (associated with the charging nest being used) lights when
the battery is inserted.
Indication
Red light
Green light
Flashing red light

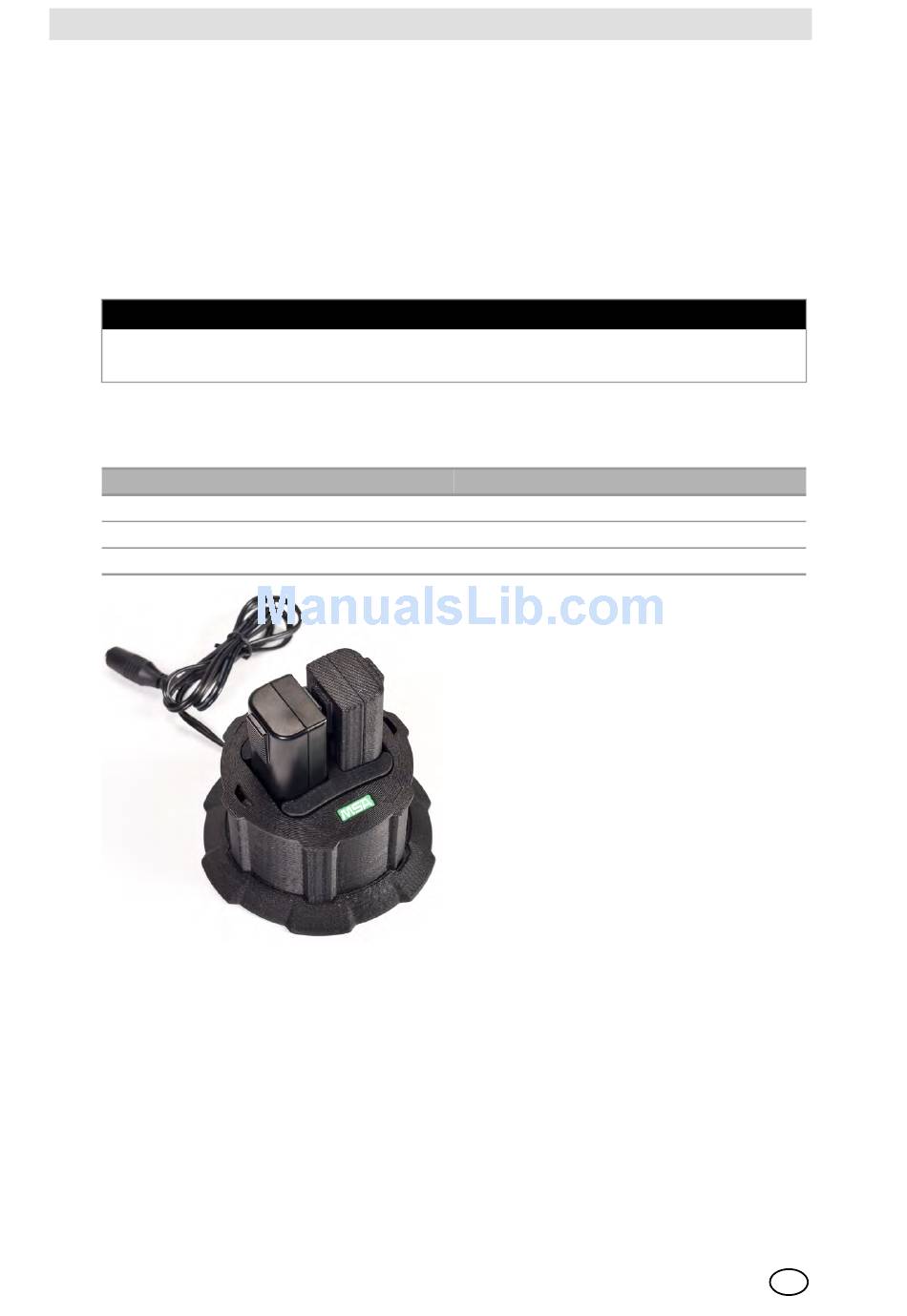

Fig. 12 Battery insert placement in the Charger nest
A fully depleted battery recharges in the Multi-Use Charger in approximately 4 hours.
32
NOTICE
EVOLUTION 6000 Thermal Imaging Camera
Status
Battery is charging
Charging is complete
Error has occurred
