MSA
MSA AUER
3.9

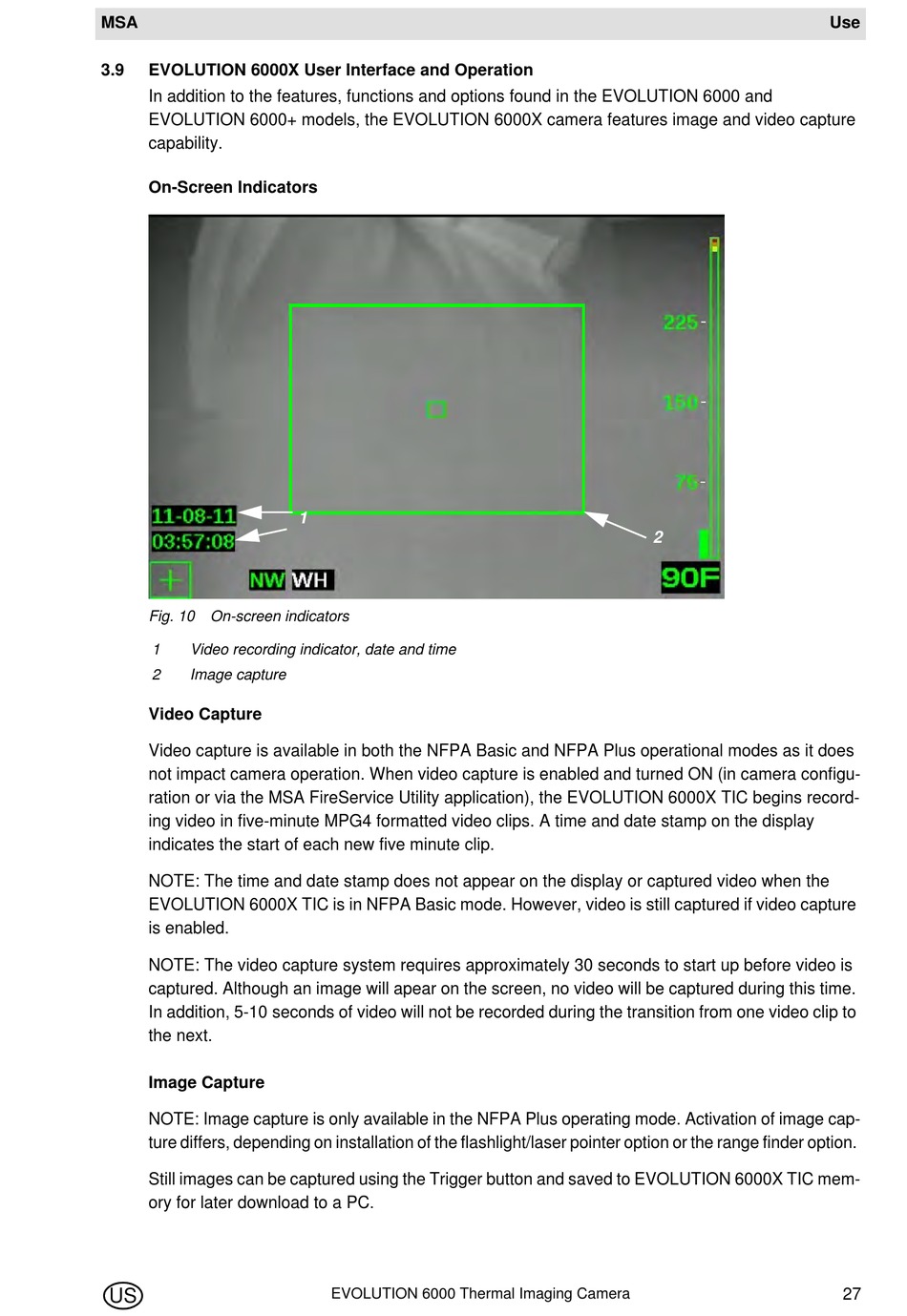

EVOLUTION 6000X User Interface and Operation
In addition to the features, functions and options found in the EVOLUTION 6000 and
EVOLUTION 6000+ models, the EVOLUTION 6000X camera features image and video capture
capability.
On-Screen Indicators
Fig. 10 On-screen indicators
1
Video recording indicator, date and time
2
Image capture
Video Capture
Video capture is available in both the NFPA Basic and NFPA Plus operational modes as it does
not impact camera operation. When video capture is enabled and turned ON (in camera configu-
ration or via the MSA FireService Utility application), the EVOLUTION 6000X TIC begins record-
ing video in five-minute MPG4 formatted video clips. A time and date stamp on the display
indicates the start of each new five minute clip.
NOTE: The time and date stamp does not appear on the display or captured video when the
EVOLUTION 6000X TIC is in NFPA Basic mode. However, video is still captured if video capture
is enabled.
NOTE: The video capture system requires approximately 30 seconds to start up before video is
captured. Although an image will apear on the screen, no video will be captured during this time.
In addition, 5-10 seconds of video will not be recorded during the transition from one video clip to
the next.
Image Capture
NOTE: Image capture is only available in the NFPA Plus operating mode. Activation of image cap-
ture differs, depending on installation of the flashlight/laser pointer option or the range finder option.
Still images can be captured using the Trigger button and saved to EVOLUTION 6000X TIC mem-
ory for later download to a PC.
US
1
EVOLUTION 6000 Thermal Imaging Camera
2
Use
27
