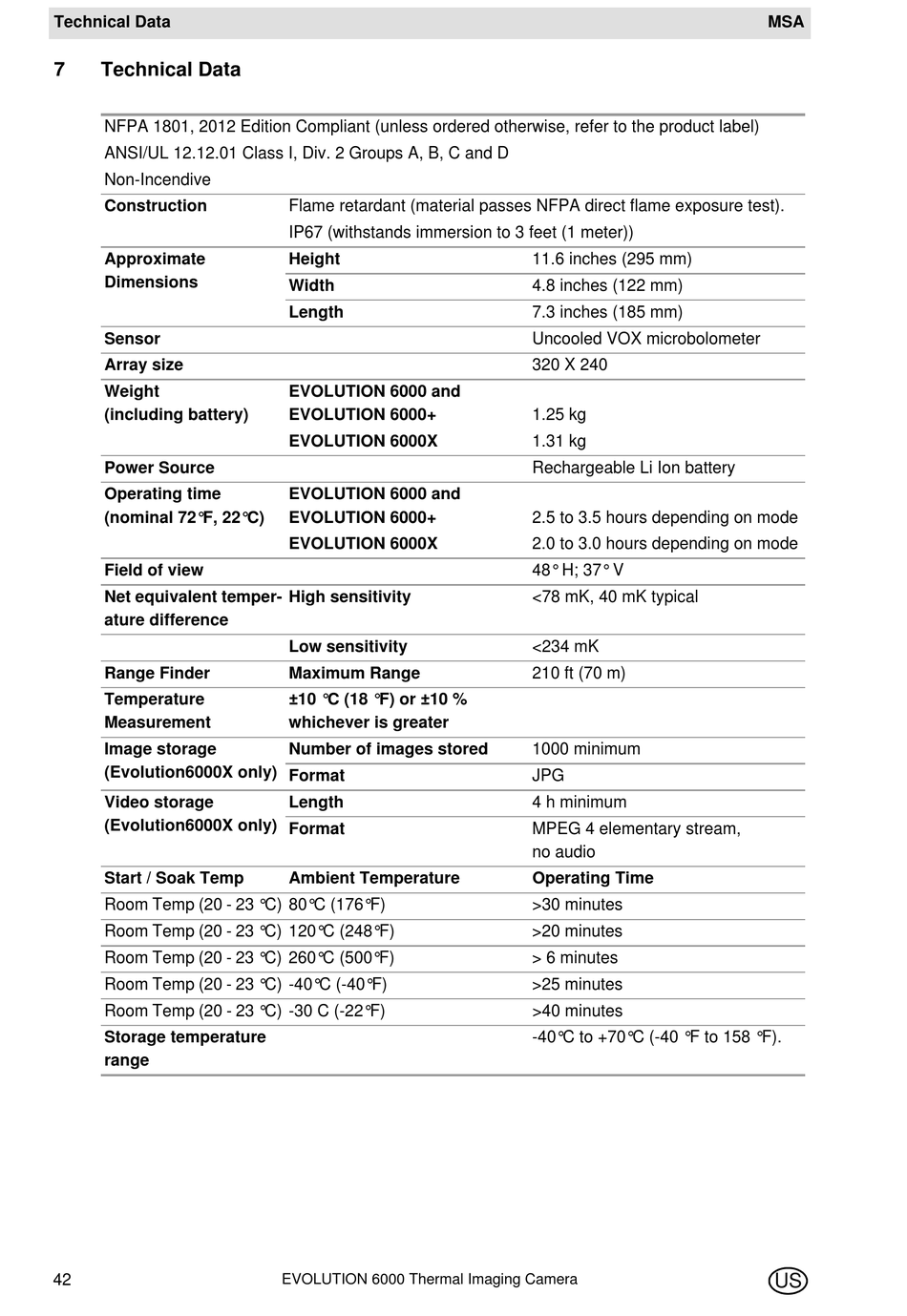

Technical Data

7
Technical Data
NFPA 1801, 2012 Edition Compliant (unless ordered otherwise, refer to the product label)
ANSI/UL 12.12.01 Class I, Div. 2 Groups A, B, C and D
Non-Incendive
Construction
Approximate
Dimensions
Sensor
Array size
Weight
(including battery)
Power Source
Operating time
(nominal 72°F, 22°C)
Field of view
Net equivalent temper-
ature difference
Range Finder
Temperature
Measurement
Image storage
(Evolution6000X only)
Video storage
(Evolution6000X only)
Start / Soak Temp
Room Temp (20 - 23 °C) 80°C (176°F)
Room Temp (20 - 23 °C) 120°C (248°F)
Room Temp (20 - 23 °C) 260°C (500°F)
Room Temp (20 - 23 °C) -40°C (-40°F)
Room Temp (20 - 23 °C) -30 C (-22°F)
Storage temperature
range
42
Flame retardant (material passes NFPA direct flame exposure test).
IP67 (withstands immersion to 3 feet (1 meter))
Height
Width
Length
EVOLUTION 6000 and 
EVOLUTION 6000+
EVOLUTION 6000X
EVOLUTION 6000 and 
EVOLUTION 6000+
EVOLUTION 6000X
High sensitivity
Low sensitivity
Maximum Range
±10 °C (18 °F) or ±10 % 
whichever is greater
Number of images stored
Format
Length
Format
Ambient Temperature
EVOLUTION 6000 Thermal Imaging Camera
11.6 inches (295 mm)
4.8 inches (122 mm)
7.3 inches (185 mm)
Uncooled VOX microbolometer
320 X 240
1.25 kg
1.31 kg
Rechargeable Li Ion battery
2.5 to 3.5 hours depending on mode
2.0 to 3.0 hours depending on mode
48° H; 37° V
<78 mK, 40 mK typical
<234 mK
210 ft (70 m)
1000 minimum
JPG
4 h minimum
MPEG 4 elementary stream,
no audio
Operating Time
>30 minutes
>20 minutes
> 6 minutes
>25 minutes
>40 minutes
-40°C to +70°C (-40 °F to 158 °F).
MSA
US
