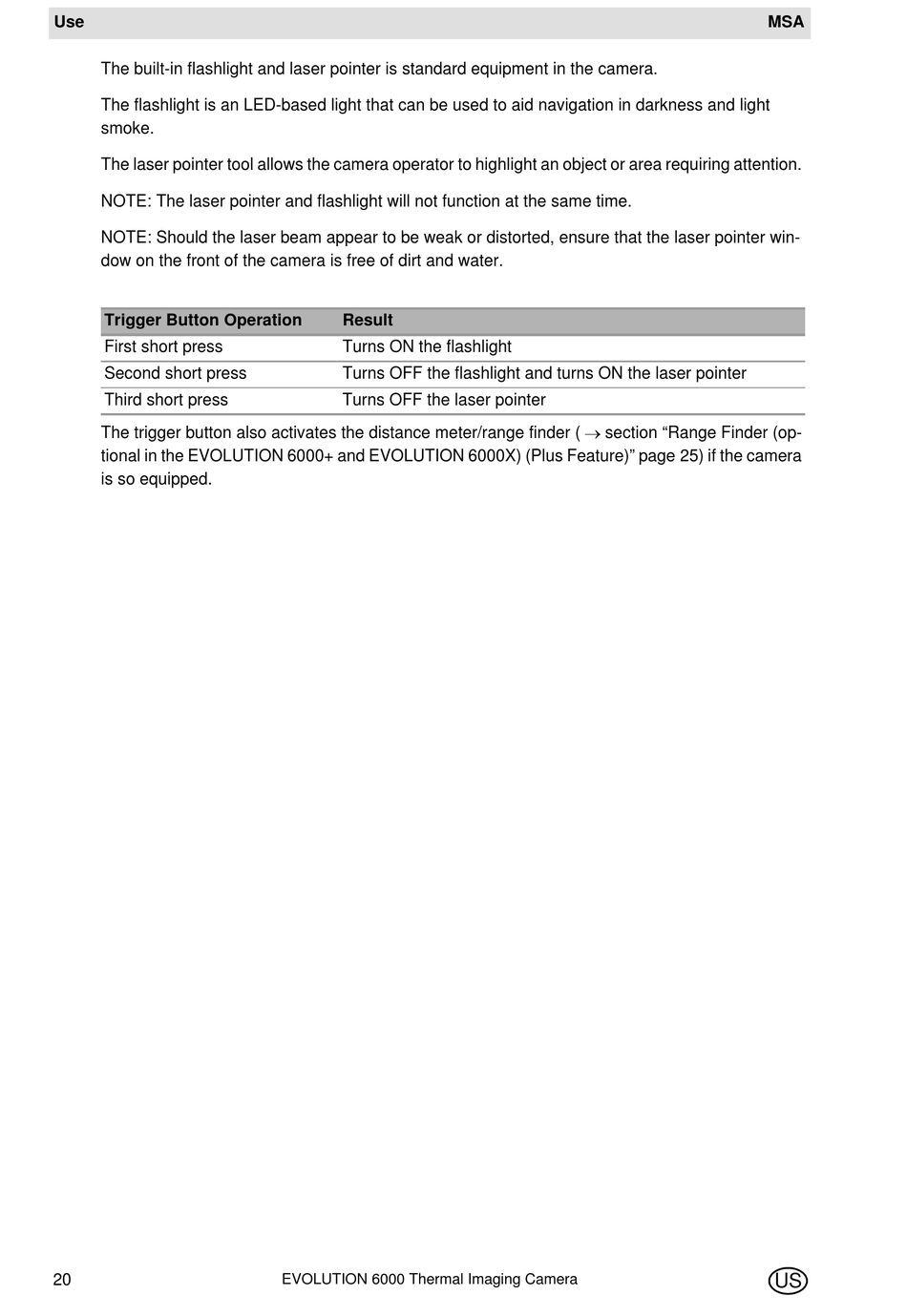

Use
The built-in flashlight and laser pointer is standard equipment in the camera.
The flashlight is an LED-based light that can be used to aid navigation in darkness and light
smoke.
The laser pointer tool allows the camera operator to highlight an object or area requiring attention.
NOTE: The laser pointer and flashlight will not function at the same time.
NOTE: Should the laser beam appear to be weak or distorted, ensure that the laser pointer win-
dow on the front of the camera is free of dirt and water.
Trigger Button Operation
First short press
Second short press
Third short press
The trigger button also activates the distance meter/range finder (section "Range Finder (op-
tional in the EVOLUTION 6000+ and EVOLUTION 6000X) (Plus Feature)" page 25) if the camera
is so equipped.
20
Result
Turns ON the flashlight
Turns OFF the flashlight and turns ON the laser pointer
Turns OFF the laser pointer
EVOLUTION 6000 Thermal Imaging Camera
MSA
US
