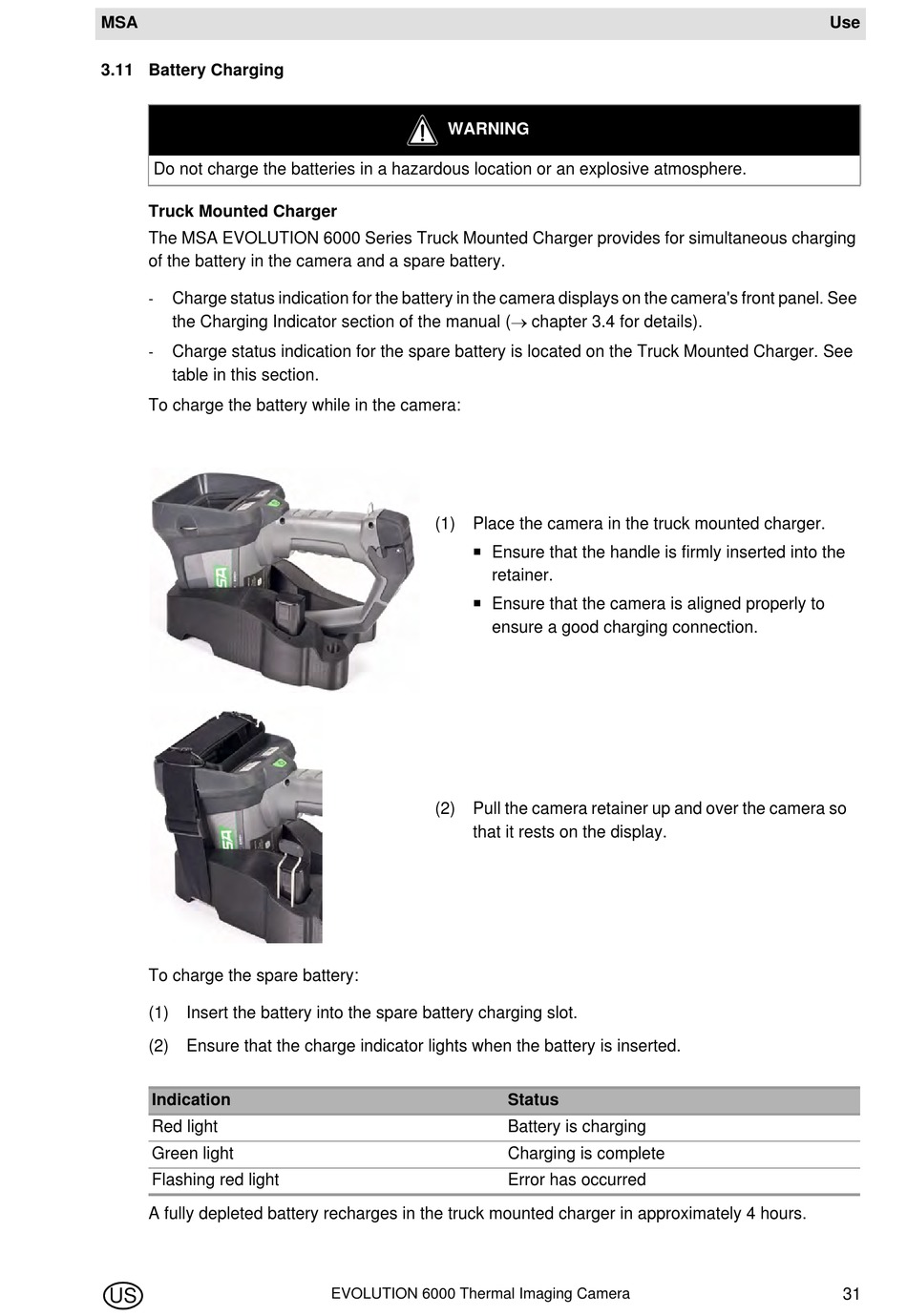

3.11 Battery Charging

Do not charge the batteries in a hazardous location or an explosive atmosphere.

Truck Mounted Charger

The MSA EVOLUTION 6000 Series Truck Mounted Charger provides for simultaneous charging
of the battery in the camera and a spare battery.
Charge status indication for the battery in the camera displays on the camera's front panel. See
-
the Charging Indicator section of the manual (chapter 3.4 for details).
Charge status indication for the spare battery is located on the Truck Mounted Charger. See
-
table in this section.
To charge the battery while in the camera:
To charge the spare battery:
(1) Insert the battery into the spare battery charging slot.
(2) Ensure that the charge indicator lights when the battery is inserted.
Indication
Red light
Green light
Flashing red light
A fully depleted battery recharges in the truck mounted charger in approximately 4 hours.
US
WARNING
(1) Place the camera in the truck mounted charger.
 Ensure that the handle is firmly inserted into the
retainer.
 Ensure that the camera is aligned properly to
ensure a good charging connection.
(2) Pull the camera retainer up and over the camera so
that it rests on the display.
EVOLUTION 6000 Thermal Imaging Camera
Status
Battery is charging
Charging is complete
Error has occurred
