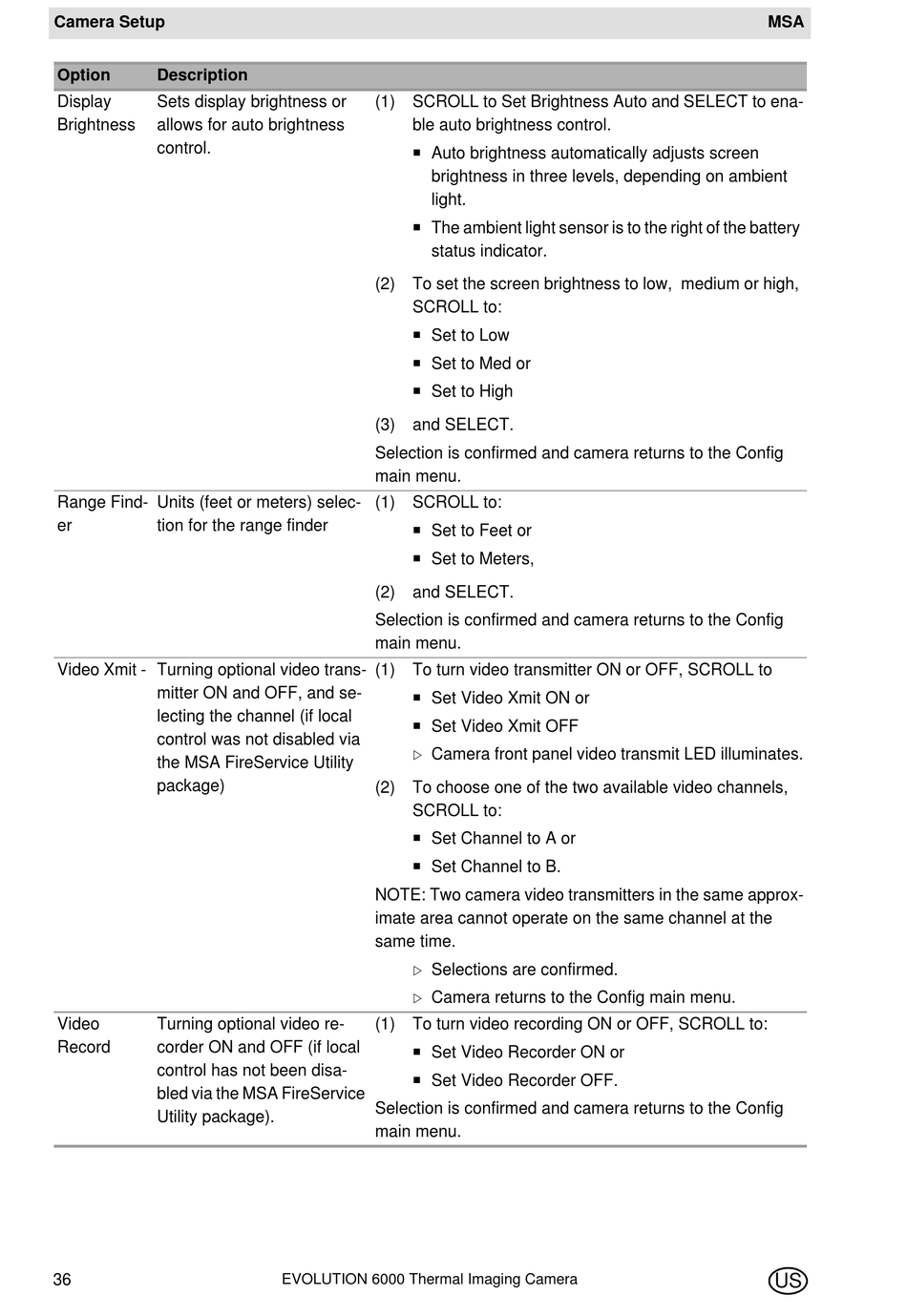

MSA Evolution 6000 Operating Manual page 36

Camera Setup
Option Description
Display Sets display brightness or
Brightness allows for auto brightness
control.
Range Find- Units (feet or meters) selec-
er tion for the range finder
Video Xmit - Turning optional video trans-
mitter ON and OFF, and se-
lecting the channel (if local
control was not disabled via
the MSA FireService Utility
package)
Video Turning optional video re-
Record corder ON and OFF (if local
control has not been disa-
bled via the MSA FireService
Utility package).
36
(1) SCROLL to Set Brightness Auto and SELECT to ena-
ble auto brightness control.
 Auto brightness automatically adjusts screen
brightness in three levels, depending on ambient
light.
 The ambient light sensor is to the right of the battery
status indicator.
(2) To set the screen brightness to low, medium or high,
SCROLL to:
 Set to Low
 Set to Med or
 Set to High
(3) and SELECT.
Selection is confirmed and camera returns to the Config
main menu.
(1) SCROLL to:
 Set to Feet or
 Set to Meters,
(2) and SELECT.
Selection is confirmed and camera returns to the Config
main menu.
(1) To turn video transmitter ON or OFF, SCROLL to
 Set Video Xmit ON or
 Set Video Xmit OFF
Camera front panel video transmit LED illuminates.

(2) To choose one of the two available video channels,
SCROLL to:
 Set Channel to A or
 Set Channel to B.
NOTE: Two camera video transmitters in the same approx-
imate area cannot operate on the same channel at the
same time.
Selections are confirmed.

Camera returns to the Config main menu.

(1) To turn video recording ON or OFF, SCROLL to:
 Set Video Recorder ON or
 Set Video Recorder OFF.
Selection is confirmed and camera returns to the Config
main menu.
