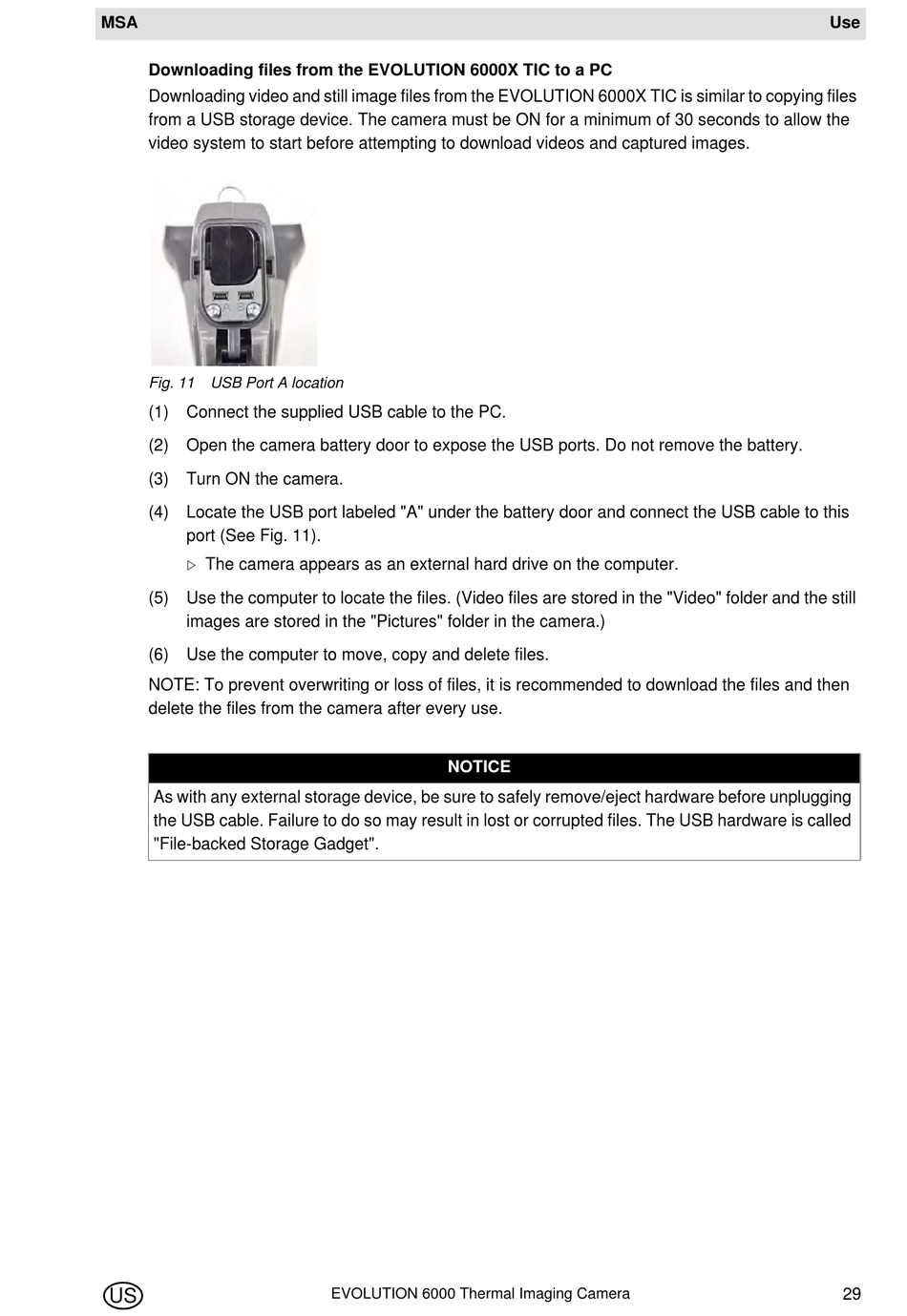

Downloading files from the EVOLUTION 6000X TIC to a PC

Downloading video and still image files from the EVOLUTION 6000X TIC is similar to copying files
from a USB storage device. The camera must be ON for a minimum of 30 seconds to allow the
video system to start before attempting to download videos and captured images.
Fig. 11 USB Port A location
(1) Connect the supplied USB cable to the PC.
(2) Open the camera battery door to expose the USB ports. Do not remove the battery.
(3) Turn ON the camera.
(4) Locate the USB port labeled "A" under the battery door and connect the USB cable to this
port (See Fig. 11).
The camera appears as an external hard drive on the computer.

(5) Use the computer to locate the files. (Video files are stored in the "Video" folder and the still
images are stored in the "Pictures" folder in the camera.)
(6) Use the computer to move, copy and delete files.
NOTE: To prevent overwriting or loss of files, it is recommended to download the files and then
delete the files from the camera after every use.
As with any external storage device, be sure to safely remove/eject hardware before unplugging
the USB cable. Failure to do so may result in lost or corrupted files. The USB hardware is called
"File-backed Storage Gadget".
