Summary of Contents for ANTAIRA EVC-3101
- Page 1 Gigabit Ethernet over VDSL2 Converter EVC-3101 User's Manual...
-
Page 2: Fcc Warning
Information in this User’s Manual is subject to change without notice and does not represent a commitment on the part of Antaira. Antaira assumes no responsibility for any inaccuracies that may be contained in this User’s Manual. Antaira makes no commitment to update or keep current the information in this User’s Manual, and reserves the right to make improvements to this User’s Manual and/or to the... - Page 3 Do not dispose of WEEE as unsorted municipal waste and have to collect such WEEE separately. Revision ANTAIRA Gigabit Ethernet over VDSL2 Converter User's Manual For Models: EVC-3101 Revision: 1.1 (January 2018) Part No.: 2350-AC0500-001...
-
Page 4: Table Of Contents
3.2. Rear Panel and Mode DIP Switch ................. 8 3.3. Power Information ....................10 CONNECTING AND USING THE EVC-3101 ................11 Point-to-Point Application -- LAN to LAN Connection ..........12 PRODUCT SPECIFICATIONS ...................... 13 PERFORMANCE TABLE ......................15 Troubleshooting ........................16 FAQs............................ -
Page 5: Package Contents
1. PACKAGE CONTENTS Thank you for purchasing Antaira Gigabit Ethernet over VDSL2 Converter, EVC-3101. Open the box of the EVC-3101 Converter and carefully unpack it. The box should contain the following items: - EVC-3101 - 5V, 2A Power Adapter - User Manual If any of these are missing or damaged, please contact your dealer immediately;... -
Page 6: Product Features
■ Advantage of minimum installation time (Simply by Plug and Play) ■ Supports extensive LED indicators for network diagnosis Hardware Features Compact size, wall-mountable design Metal case, good for heat sinking Easy installation; ideal solution for space-limited locations Co-work with Antaira Media Chassis (FCU-RACK16 series) -
Page 7: Hardware Introduction

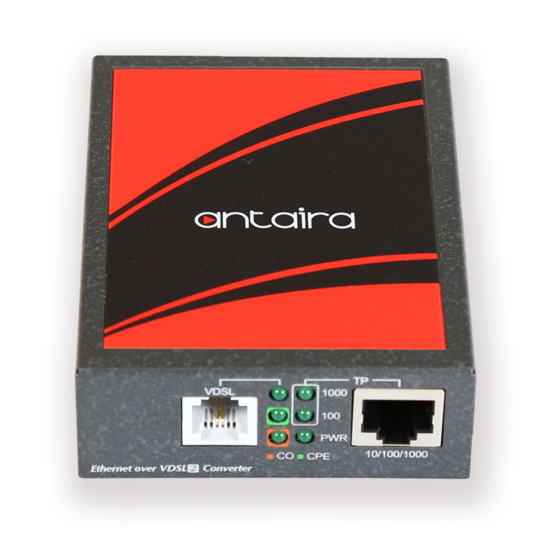

3.1. Front Panel and LED Indicators EVC-3101 Front Panel Figure 3-1-1: EVC-3101 Front Panel 10/100/1000BASE-T RJ45 connector for Ethernet RJ11 connector for VDSL2; connect to EVC-3101 Converter LEDs for power, Ethernet and VDSL EVC-3101 LED Indicators System Color Function Indicates that the EVC-3101 has power. -
Page 8: Rear Panel And Mode Dip Switch
DC Power Jack The EVC-3101 requires 5V DC, 2A power input, which conforms to the bundled AC adapter. Should you have the issue of power connection, please contact your local sales representative. The device is a power-required device, meaning it will not work till it is powered. If your networks should be active all the time, please consider using UPS (uninterrupted power supply) for your device. - Page 9 The CPE can be Equipment) connected to the PC, IP camera or wireless access point or other network devices. When the EVC-3101 operates in CPE mode, DIP switches 2, 3, and 4 are without function. DIP-2: Transmission (G.INP and Interleave mode) G.INP Method of protection against bursts from other devices or lines to impact your xDSL line.
-
Page 10: Power Information
They conform to the bundled AC-DC adapter and Antaira media chassis. Should you have the issue of power connection, please contact your local sales representative. Please keep the AC-DC adapter as a spare part when the EVC-3101 is installed to a media chassis. 2.5mm Width of DC Receptacle: 2.5mm... -
Page 11: Connecting And Using The Evc-3101
4. CONNECTING AND USING THE EVC-3101 The EVC-3101 does not require any software configuration. Users can immediately use any feature of this product simply by putting the plug in the receptacle and turning it on. There is some key limitation on the VDSL2 Bridge. -
Page 12: Point-To-Point Application - Lan To Lan Connection
4.1 Point-to-Point Application – LAN to LAN Connection Two sets of the EVC-3101 could be used to link two local Area networks that are located in a different place. Through the normal telephone line, it could be set up a 150/150Mbps (G.INP, Sym, 8dB) symmetric backbone, but one EVC-3101 must be Master (CO mode) and the other one is Slave (CPE mode). -
Page 13: Product Specifications
5 PRODUCT SPECIFICATIONS Product EVC-3101 Hardware Specifications LAN Ports 1 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports 1 VDSL2 RJ11 female phone jack VDSL Port Twisted-pair telephone wires (AWG24 or better) up to 1.4km Phone Port Additional splitter for POTS connection Dimensions (W x D x H) - Page 14 ITU-T G.993.1 VDSL ITU-T G.997.1 ITU-T G.993.2 VDSL2 (Profile 17a/30a Support) ITU-T G.993.5 G.Vectoring & G.INP ITU-T G.998 [Note1] When EVC-3101 connects to an ADSL 2/2+ device, this ADSL2/2+ devise has to be CPE device, does not support to be CO device.
-
Page 15: Performance Table
6 PERFORMANCE TABLE EVC-3101 Performance, unit: Mbps Interleave (Downstream/Upstream) Distance (meter) Asymmetric Symmetric 12dB 12dB 200m 190/87 178/84 147/139 135/127 400m 161/60 143/53 112/110 96/96 600m 118/36 99/32 75/73 61/59 800m 59/24 48/22 44/44 40/40 1000m 47/7 41/5 26/25... -
Page 16: Troubleshooting
Verify the length of the wire (not more than 1.4km) connected between the two EVC-3101. Please also try to adjust the DIP switch or the EVC-3101 to the other SNR mode. Please note you must use one EVC-3101 in CO mode and the other EVC-3101 in CPE mode to make connection to each other work. -
Page 17: Faqs
150Mbps/150Mbps in symmetric mode over a distance of 200 meters. Q5: Why it is not workable when I set ADSL2/2+ device to be CO and set EVC-3101 to be CPE? A5: Because EVC-3101 must be set to CO and ADSL2/2+ must be set to CPE. -
Page 18: Customer Support
9 CUSTOMER SUPPORT Thank you for purchasing Antaira products. If you need more support information, please contact Antaira support team. Antaira support team mail address: support@antaira.com Copyright Antaira Technologies 2018. Contents are subject to revision without prior notice. Antaira is a registered trademark of Antaira Technologies. All other trademarks belong to their respective... - Page 19 Step 3: Hang the EVC-3101 on the screws from the wall. Step 4: Refer to chapter 3.3 Power Information for power supply to the EVC-3101. Before mounting the device to the wall, please check the location of the electrical outlet and...
- Page 20 To install the Ethernet over VDSL2 Converter in a 19-inch Converter Chassis with standard rack, follow the instructions described below. Step 1: Place your EVC-3101 on a hard-flat surface, with the front panel positioned towards your front side. Step 2: Carefully slide in the module until it is fully and firmly fitted into the slot of the converter chassis.
